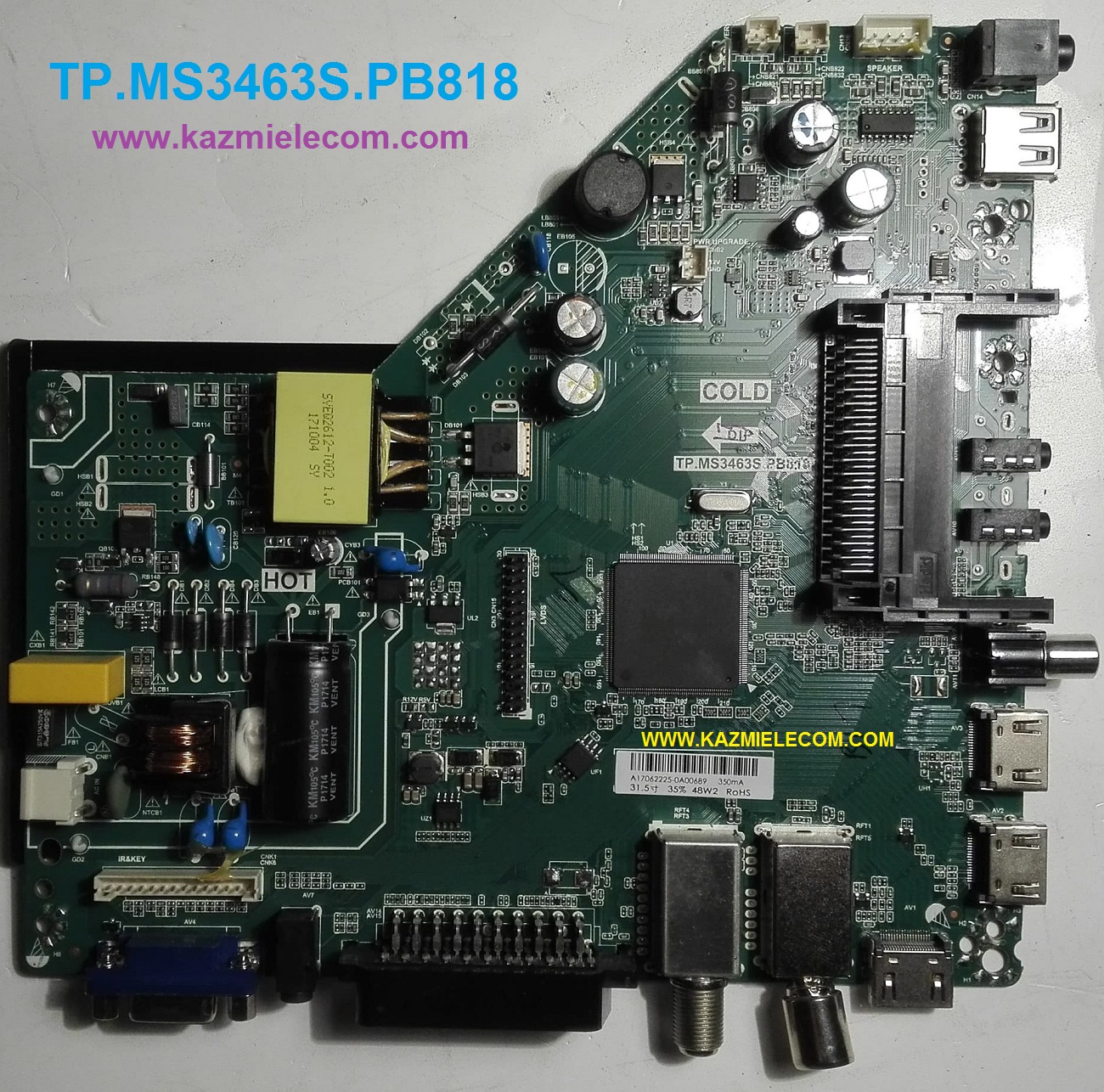

TP.MS3463S.PB818 LED TV Board
TP.MS3463S.PB818 is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080. TP_MS3463S_PB818 is a combo board which means the main power supply, ATV board, and LED backlight driver board is a built-in single PCB. The firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: China Universal
Model: TP-MS3463S-PB818
Main Chip: MSD3463
TV System: PAL\SECAM\NTSC PLAYBACK
Product: LED TV
Input Voltage: 220V AC
MAX Backlight Watt: 48w

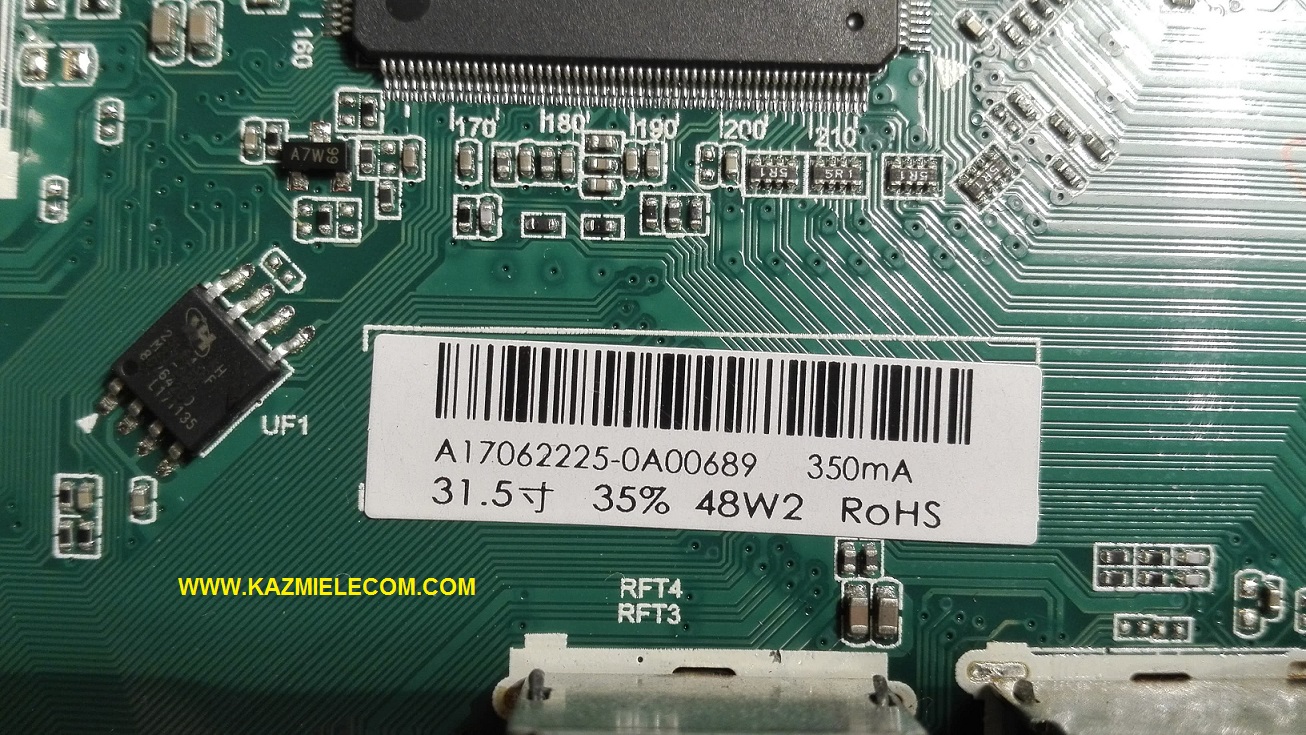

Backlight Current: 350mA
Resolution: up to 1920×1080
Flash size: 8 MB
Service Menu:
Menu 1147, Source/Input 2580
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issue during firmware installation then visit and read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP-MS3463S-PB818 firmware for free download:
