TP.MS3463S.PB765 LED TV Board

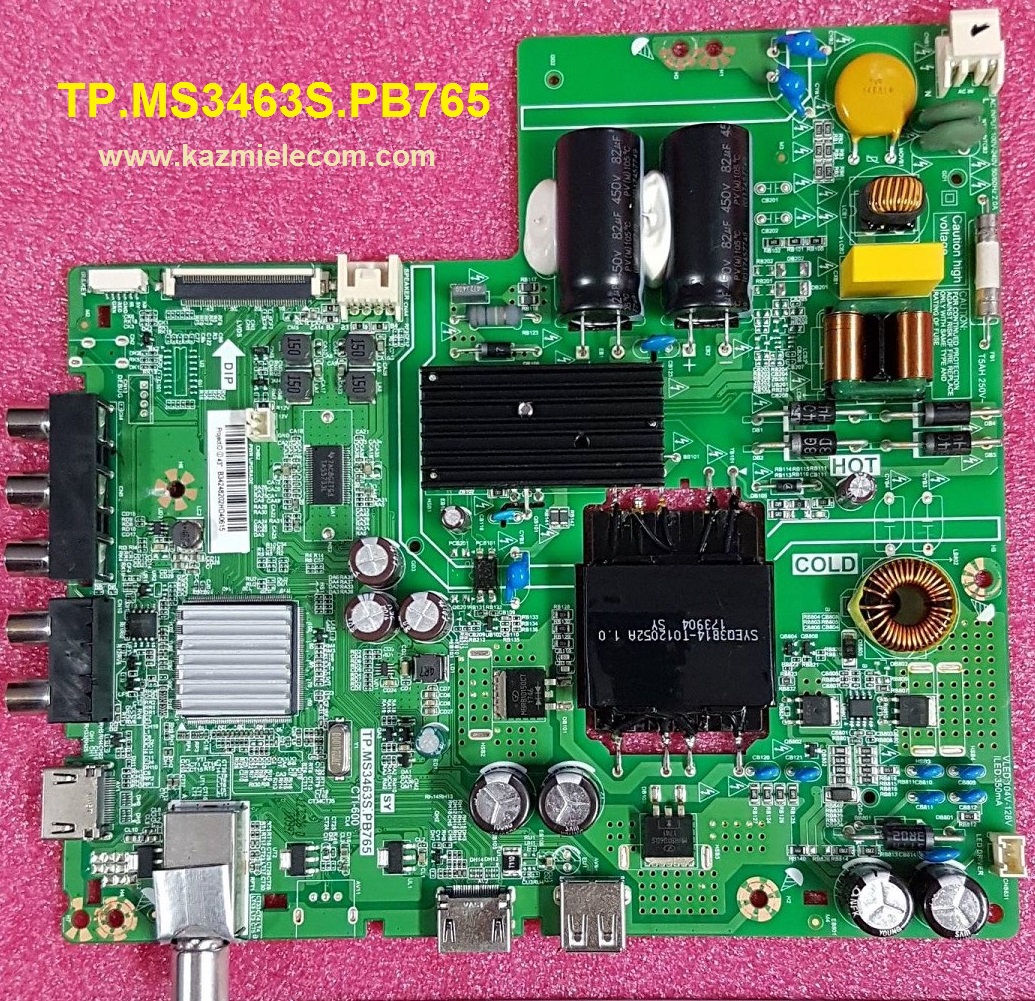

TP.MS3463S.PB765 is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080. TP_MS3463S_PB765 is a combo board which means the main power supply, ATV board, and LED backlight driver board is a built-in single PCB. The firmware files are given below for the technician’s support.
TP.MS3463S.PB765 universal board has multiple connectivity input/output ports for the user’s convenience. It has dual HDMI input ports for connecting digital Full HD devices. It has also a USB input interface port for upgrading software and playing multimedia files. It has RCA input for connecting analog devices.
General Specifications:
Brand/Mark: China Universal
Model: TP-MS3463S-PB765
Main Chip: MSD3463
TV System: PAL\SECAM\NTSC PLAYBACK
Product: LED TV
Input Voltage: 220V AC
MAX Backlight Watt: 65-75w
Backlight Current: mA
Resolution: up to 1920×1080
Flash size: 16 MB
AUDIO: TPA3110LD2
Tuner: XF-3SDT-H (R840)
Service Menu:
Source
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Details about the download process watch the video Click Here
TP.MS3463S.PB765 firmware for free download:
