TP.MS3463.PB901 Software Free Download

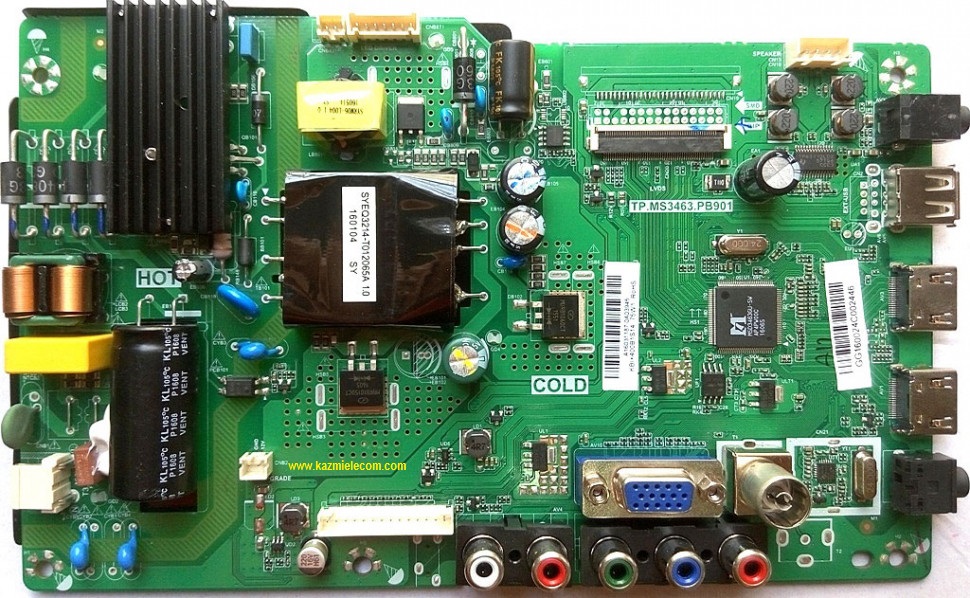

TP.MS3463.PB901 LED TV Board

TP.MS3463.PB901 is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080. TP_MS3463_PB901 is a combo board which means the main power supply, ATV board, and LED backlight driver board is a built-in single PCB. The firmware files are given below for the technician’s support. If you are facing any issues during firmware installation then visit and read here first.

Download Here

TP.MS3463.PB901 board has all the features and connectivity interface ports as per the latest requirements of the user like multiple HDMI input ports, USB interface to play multimedia files and for upgrading software, VGA input for Personal Computer connectivity, Component Input, TV, and Scart(optional). It can support 28 to 48-inch HD and FHD panel screens. The main processor is made by Mstar and its graphics are also good.

General Specifications:

Brand/Mark: China Universal

Model: TP-MS3463-PB901

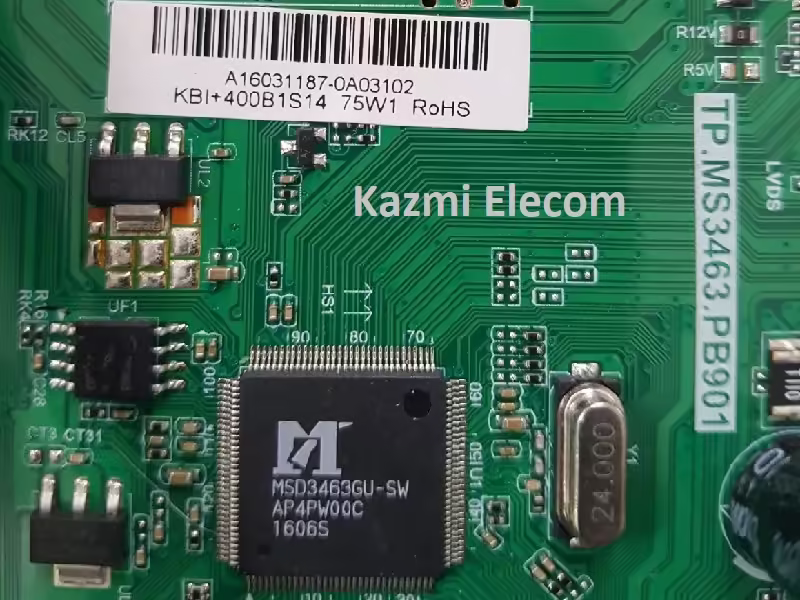

Main Chip: MSD3463GU-SW

TV System: PAL\SECAM\NTSC PLAYBACK

Product: LED TV

Input Voltage: 220V AC

MAX Backlight Watt: 75W

Backlight voltage:

Resolution: up to 1920×1080

Flash size: 4 MB

Panel Voltage: 5V, 12V

Power Input: 220V AC

Firmware Name: NA

Firmware Type: Backup Dump

Service Menu:

Menu 1147, Source 2580

Caution:

All the pictures and specification details related to TP.MS3463.PB901 in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.

Pros:

There are many advantages to installing the given TP.MS3463.PB901 USB software or backup dump file. A few benefits are described below:

The dead board can be recovered and operational by loading the given software backup file
Remote and Logo may change at your own choice to satisfy the customer
Money saving instead of changing the mainboard
Time-saving instead of arranging a new board
Customer satisfaction to do an urgent job
Skill and confidence improvement

Cons:

There may be some disadvantages to installing the given TP.MS3463.PB901 USB software or backup dump file. But it depends on the technician or user as per his understanding. A few drawbacks are described below:

The working board may go to the standby position
Remote Control may not work and the Logo may change by writing the given software
Panel screen parameters may be changed

TP.MS3463.PB901 Version Upgrade:

Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software is malfunctioning due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.

TP.MS3463.PB901 Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.

Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first. Always keep a backup before writing the flash.

How to Download Firmware Files:

Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
