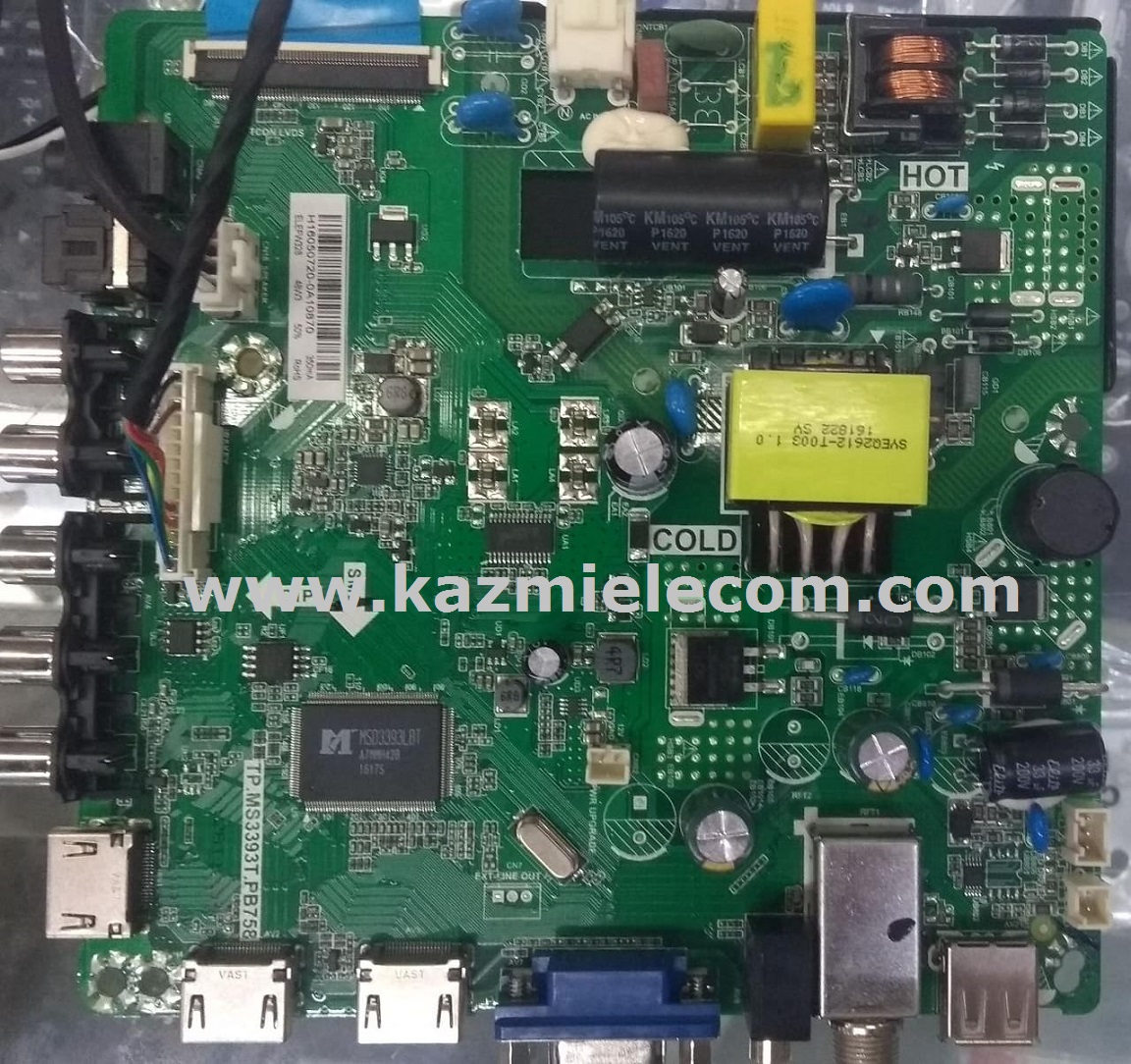

TP.MS3393T.PB758 LED TV Board
TP.MS3393T.PB758 is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. This is a Combo Board. The main power module, LED Backlight Inverter Circuit module, and ATV Card are built into this motherboard. This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart. TP. MS3393T.PB758 firmware files are given below for the technician’s support to repair LED TVs.
TP.MS3393T.PB758 has multiple input interfaces such as triple HDMI input ports for connecting external Full HD devices like Bluray players, gaming consoles, and set-top boxes, and USB input ports for playing multimedia files for software/firmware upgrade purposes. It has a VGA interface for personal computers and Laptop input for widescreen display. It has RCA input for analog devices.
General Specifications and Technical Features:
Brand/Mark: Universal Board
Model: TP.MS3393T. PB758
Main Chip: MSD3393LBT
Product: LED TV
LED Backlight: 350mA
Backlight Capacity: 50W
Flash IC: 25Q16, 25Q32
Sound Chip:
Tuner IC:
HDMI Inputs: 03
USB Input: 01
VGA: Yes
RCA Input: Yes
Screen supported: 32 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 220V AC
Service Menu Code:
Source/Input 2580 OR Menu 1147 are common. For more Service Menu Codes visit Here.
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
How to Load Backup File:
- Download the given file below
- Extract it to get a folder
- Connect Programmer or VGA ISP connection
- Read the original Flash Backup first
- Write the given flash dump file
- Wait until complete. Done
TP.MS3393T.PB758 firmware for free download:
I installed the both firmware, the media (USB) doesn’t play video files please try and fix it and upload again
thanks
dump file is ok. there may be a video format issue or hardware fault
