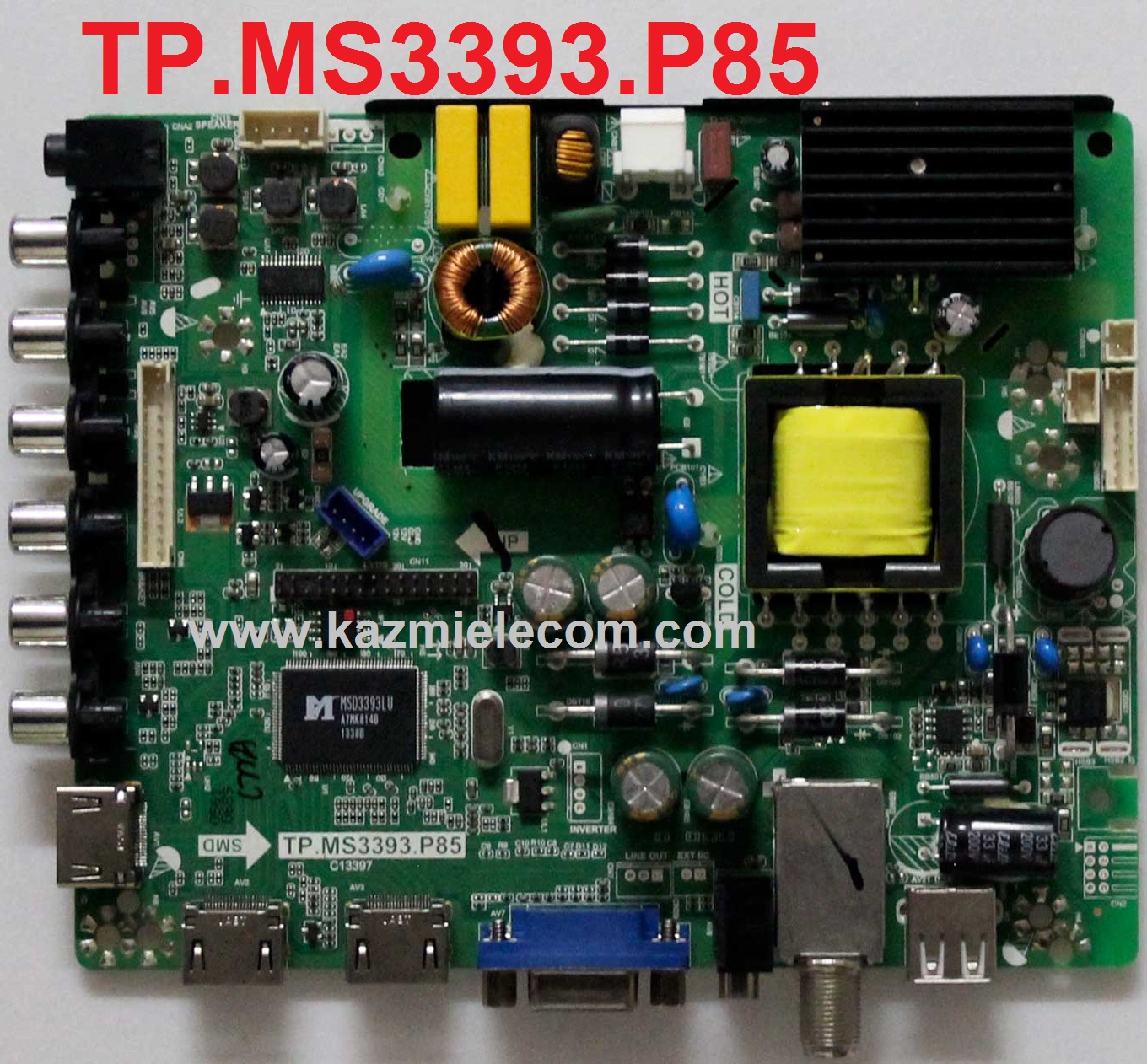

TP.MS3393.P85 LED TV Board
TP.MS3393.P85 is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080. TP_MS3393_P85 is a combo board which means the main power supply, ATV board, and LED backlight driver board is a built-in single PCB. The firmware files are given below for the technician’s support. Its TV tuner is ATSC (Digital) and NTSC. TP.MS3393.P85 firmware files are shared in this post for the technician’s support.
General Specifications:
Brand/Mark: China Universal
Model: TP-MS3393-P85
Main Chip: MSD3393LU
TV System: PAL\SECAM\NTSC PLAYBACK
Product: LED TV
Input Voltage: 220V AC
Backlight Volt: 55-62V
MAX Backlight Watt: 65w
Backlight Current: 650mA
Resolution: up to 1920×1080
Flash size: 2/4 MB
AUDIO:
Tuner: ATSC (Digital) and NTSC
Service Menu:
Source 2-5-8-0
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.MS3393.P85 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS3393.P85_1366x768_DW DISPLAY_DUMP | Download |
| 2 | TP.MS3393.P85_1366x768_POLAROID_DUMP | Download |
| 3 | TP.MS3393.P85_1366x768_RCA_DUMP | Download |
| 4 | TP.MS3393.P85_1366x768_SEIKI_DUMP | Download |
| 5 | TP.MS3393.P85_1366x768_WESTINGHOUSE_DUMP | Download |
| 6 | TP.MS3393.P85_1920x1080_DIGITREX_DUMP | Download |
| 7 | TP.MS3393.P85_1920x1080_POLAROID_DUMP | Download |
| 8 | TP.MS3393.P85_1920x1080_SPELER_DUMP | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
Is there a way to change resolution from 1366×768 to 1280×800 ?
No
