TP.MS338.PB803 Firmware
TP.MS338.PB803 is an Android network driver board with an FHD resolution of 1920×1080. TP.MS338_PB803 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP.MS338 PB803 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to VGA, Scart, and Earphones. TP.MS338-PB803 has a LAN/RJ45 Connector interface port also for the wired internet network.
TP_MS338_PB803 is a Combo Network Triple play board that has a Digital TV tuner built-in in it. The Graphics and Sound quality of the TP.MS338-PB803 android board are very good and the Response rate is very efficient. TP.MS338-PB803 China smart network board can support up to 55″ screen panels. TP.MS338.PB803 firmware is available for technician support.
General Specifications:
Brand/Mark: FHD Smart DVB-T2 LED TV Main Board
Main Board Model: TP.MS338.PB803
Main Chipset: DTMB: MSD6A338ST-WL OR MSD6A338ST-003J
DVB-T2: MSD6A338SXE-WLOR MSD6A338SXE-003J
OS: Android 4.4
CPU: A7*2
CPU Frequency: 1GHz
GPU: Mali400*2
GPU Frequency: 550MHz
Ram: 1 Gb
Rom: 8 Gb eMMC
Backlight: 30v to 160v 45w
Audio Output: 2x8w
Resolution: up-to 1920×1080 (32” to 46″)

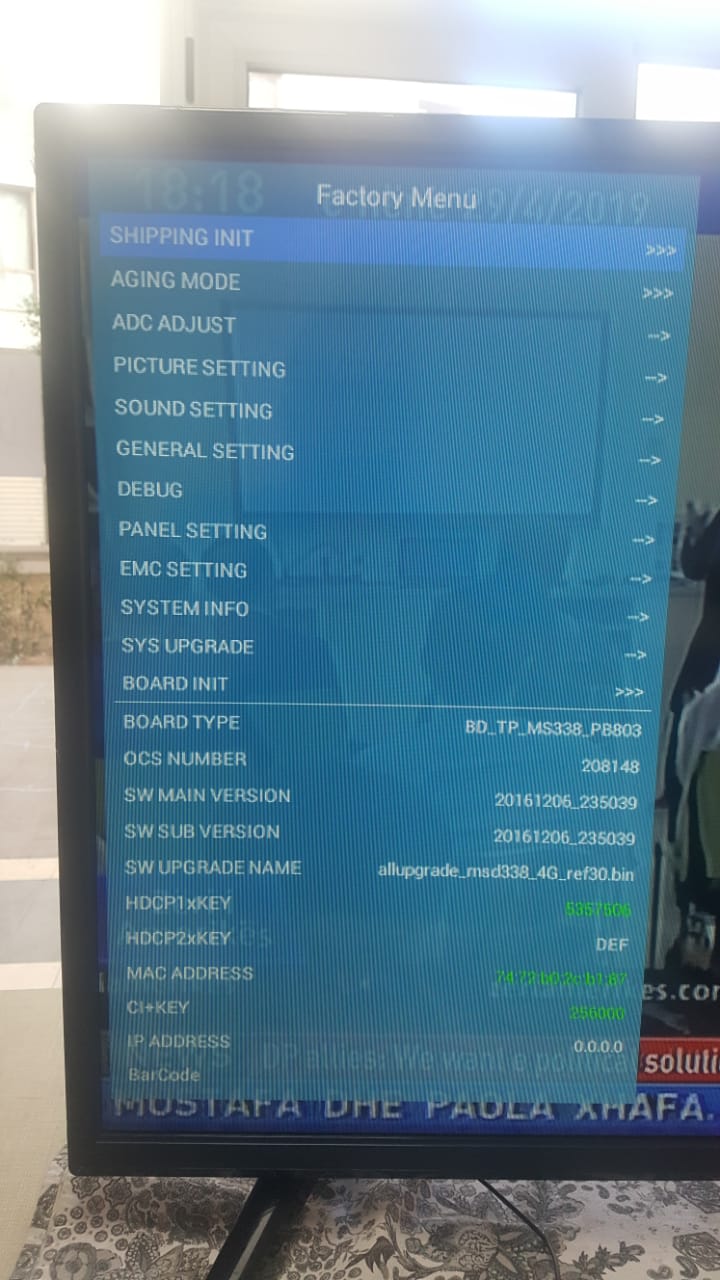

Service Code: Menu+1147
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
How to Install:
- Copy the .bin file into the USB disk
- Connect the U-Disk to the TV
- Switch on the TV
- Standby lights start flashing. when the light flashing speed increases it means it’s complete.
- Switch OFF, Remove the Disk, and Switch it ON again. Done
TP.MS338.PB803 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS338.PB803_1366x768_8G_Vivax.part1 | Download |
| TP.MS338.PB803_1366x768_8G_Vivax.part2 | Download | |
| TP.MS338.PB803_1366x768_8G_Vivax.part3 | Download | |
| TP.MS338.PB803_1366x768_8G_Vivax.part4 | Download | |
| TP.MS338.PB803_1366x768_8G_Vivax.part5 | Download | |
| 2 | TP.MS338.PB803_1920x1080_8G_Vivax.part1 | Download |
| TP.MS338.PB803_1920x1080_8G_Vivax.part2 | Download | |
| TP.MS338.PB803_1920x1080_8G_Vivax.part3 | Download | |
| TP.MS338.PB803_1920x1080_8G_Vivax.part4 | Download | |
| TP.MS338.PB803_1920x1080_8G_Vivax.part5 | Download | |
| 3 | TP.MS338.PB803_1366x768_1G_4G_AKAI.part1 | Download |
| TP.MS338.PB803_1366x768_1G_4G_AKAI.part2 | Download | |
| TP.MS338.PB803_1366x768_1G_4G_AKAI.part3 | Download | |
| TP.MS338.PB803_1366x768_1G_4G_AKAI.part4 | Download | |
| TP.MS338.PB803_1366x768_1G_4G_AKAI.part5 | Download | |
| 4 | TP.MS338.PB803-1366x768-1G-8G-Stream.part1 | Download |
| TP.MS338.PB803-1366x768-1G-8G-Stream.part2 | Download |
Firmware Name:
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
hi sir
I’m Amar Nagi (9971231491)
sir my led tv panel is HV490QUB-N8F i want to know, my led panel is 4K or FHD?
Search in google
Sir, TP.MS338.PB803_1920X1080_8G_Vivax.part1,part3 and part5 are file not found(error).
download from link 2. i will update soon
Sir, TP.MS338/PB803_1920X1080_8G_part1,3,5 are file not found
Noted
ciao si chiamo Peppe, volevo aggiornare il mio akai AKTV3235 S smart tv e smontato il dietro trovo la scheda TP.MS338E.PB803. Ma se entro nel service menu con il codice 1147 nei dati mi spunta un altro tipo di main esattamente la TP_MS338_PB803 allupgrade_msd338_4g_ref56.bin
quale devo scaricare per avere la smart tv un po’ piu veloce, netflix e migliore cambio canali e aumento volume?
No need to update.
allora come posso fare per avere un cambio canali piu veloce ed avere anche netflix e play store?
no solution. change the latest android version board with high ram/rom
ciao ho aggiornato il firmware con uno nordmende ma non cambia nulla sempre lento…. mi dici come posso fare per ritornare a quello originale akai e aggiornare come mi dicevi android?
grazie
can not update. the installed version is final. can be back by installing your required firmware
ciao come posso fare per cambiare android?
No. Change board
Do you by any chance know if the bd_tp_ms338_pb803 mainboard and/or one of your firmwares supports Dolby Digital Plus audio?
I have a Nordmende nd32s3100h TV with FW 02/2022 which does not support that type of audio coding and the channels that use it are muted…
If I don’t find a solution I have to throw it away…
not supported
thank you for the reply…
Do you know some newer board that supports Dolby Digital+ and that can be mounted on that TV?
I have 4 identical TVs and if I don’t find a smart solution I have to replace them all …
not confirm. all the Chinese boards not supported. you should check Sony and Samsung
my tv said “System upgrade error” and when i rebooted it, it’s stuck in boot loop:
1. Automatically turns on with blue light (no screen)
2. screen turns off and light become red
3. screen turn on but light stays red
help!
watch the video in the post below. execute recovery file. wipe cache
