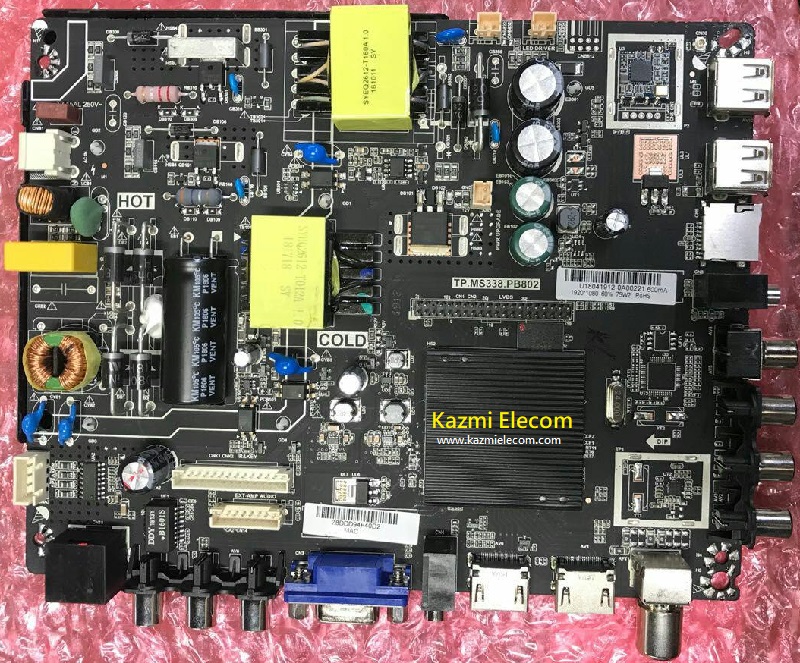

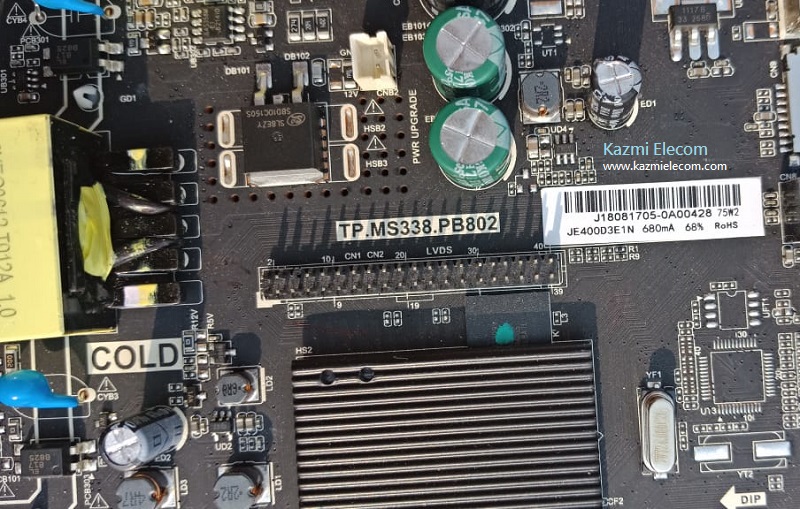

TP.MS338.PB802 Android LED TV Board
TP.MS338.PB802 is a network triple-play Android LED TV Board. TP_MS338_PB802 is a combo board that supports screen resolutions 1920*1080 and 1366*768. It also supports an inverted or positive screen.
TP-MS338-PB802 is a smart TV board with a cloud iQIYI WIFI single board, suitable for 32 inches-50 inches screens. Watch movies online super smooth, using a powerful MS 338 quad-core chip that provides better image solutions and improves image clarity. TP MS338 PB802 has 4 GB built-in memory in it.
General Specifications:
Brand/Mark: FHD Smart DVB-T2 LED TV Main Board
Main Board Model: TP.MS338.PB802
Main Chipset: DTMB: MSD6A338ST-WL OR MSD6A338ST-003J
DVB-T2: MSD6A338SXE-WLOR MSD6A338SXE-003J
TV RF: ATV(PAL)/DTV(DVB-T/DVB-T2)
OS: Android 4.4
CPU: A7*2
CPU Frequency: 1GHz
GPU: Mali400*2
GPU Frequency: 550MHz
Ram: 512 Mb
Rom: 4 Gb eMMC
AC input voltage: 100-240V AC
Screen Panel Voltage: 12v DC
Backlight current: 600mA
Backlight Voltage Range: 72V-82V
Backlight output voltage range: 30V-160V
Backlight output power: 45W
Audio Output: 2x8w (8 Ohm)
Resolution: upto 1920×1080 (32” to 50″)
Aspect Ratio: 16:09 (Wide Screen)
Service Code: Menu+1147
Mirror/Inverted Mode: Yes
Note: Following the given Mitashi MiDE032v20 HS firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dumping files then read here first.
How to Download Mitashi MiDE032v02 HS Firmware:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.MS338.PB802 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS338.PB802_1366x768_Samsung_4GB_512MB.part1 | Download |
| TP.MS338.PB802_1366x768_Samsung_4GB_512MB.part2 | Download | |
| TP.MS338.PB802_1366x768_Samsung_4GB_512MB.part3 | Download | |
| TP.MS338.PB802_1366x768_Samsung_4GB_512MB.part4 | Download | |
| TP.MS338.PB802_1366x768_Samsung_4GB_512MB.part5 | Download | |
| 2 | TP.MS338.PB802_1920x1080_Samsung_4GB_512MB.part1 | Download |
| TP.MS338.PB802_1920x1080_Samsung_4GB_512MB.part2 | Download | |
| TP.MS338.PB802_1920x1080_Samsung_4GB_512MB.part3 | Download | |
| TP.MS338.PB802_1920x1080_Samsung_4GB_512MB.part4 | Download | |
| TP.MS338.PB802_1920x1080_Samsung_4GB_512MB.part5 | Download | |
| 3 | TP.MS338.PB802_1366x768_512M_4G_REF48.part1 | Download |
| TP.MS338.PB802_1366x768_512M_4G_REF48.part2 | Download | |
| TP.MS338.PB802_1366x768_512M_4G_REF48.part3 | Download | |
| TP.MS338.PB802_1366x768_512M_4G_REF48.part4 | Download | |
| TP.MS338.PB802_1366x768_512M_4G_REF48.part5 | Download | |
| 4 | TP.MS338.PB802_1366x768_512M_4G_REF64.part1 | Download |
| TP.MS338.PB802_1366x768_512M_4G_REF64.part2 | Download | |
| TP.MS338.PB802_1366x768_512M_4G_REF64.part3 | Download | |
| TP.MS338.PB802_1366x768_512M_4G_REF64.part4 | Download | |
| TP.MS338.PB802_1366x768_512M_4G_REF64.part5 | Download | |
| 5 | TP.MS338.PB802_1366x768_512M_4G_REF75.part1 | Download |
| TP.MS338.PB802_1366x768_512M_4G_REF75.part2 | Download | |
| TP.MS338.PB802_1366x768_512M_4G_REF75.part3 | Download | |
| TP.MS338.PB802_1366x768_512M_4G_REF75.part4 | Download | |
| TP.MS338.PB802_1366x768_512M_4G_REF75.part5 | Download | |
| 6 | TP.MS338.PB802_1920x1080_512M_4G_REF48.part1 | Download |
| TP.MS338.PB802_1920x1080_512M_4G_REF48.part2 | Download | |
| TP.MS338.PB802_1920x1080_512M_4G_REF48.part3 | Download | |
| TP.MS338.PB802_1920x1080_512M_4G_REF48.part4 | Download | |
| TP.MS338.PB802_1920x1080_512M_4G_REF48.part5 | Download | |
| 7 | TP.MS338.PB802_1920x1080_512M_4G_REF75.part1 | Download |
| TP.MS338.PB802_1920x1080_512M_4G_REF75.part2 | Download | |
| TP.MS338.PB802_1920x1080_512M_4G_REF75.part3 | Download | |
| TP.MS338.PB802_1920x1080_512M_4G_REF75.part4 | Download | |
| TP.MS338.PB802_1920x1080_512M_4G_REF75.part5 | Download | |
| 8 | TP.MS338.PB802_1366X768_512M_4G_Ref55.part01 | Download |
| TP.MS338.PB802_1366X768_512M_4G_Ref55.part02 | Download | |
| TP.MS338.PB802_1366X768_512M_4G_Ref55.part03 | Download | |
| TP.MS338.PB802_1366X768_512M_4G_Ref55.part04 | Download | |
| TP.MS338.PB802_1366X768_512M_4G_Ref55.part05 | Download | |
| 9 | TP.MS338.PB802_1920x1080_512M_4G_REF55.part1 | Download |
| TP.MS338.PB802_1920x1080_512M_4G_REF55.part2 | Download | |
| TP.MS338.PB802_1920x1080_512M_4G_REF55.part3 | Download | |
| TP.MS338.PB802_1920x1080_512M_4G_REF55.part4 | Download | |
| TP.MS338.PB802_1920x1080_512M_4G_REF55.part5 | Download | |
| 10 | TP.MS338.PB802_1366X768_512M_4G_RAYLAN_REF60.part1 | Download |
| TP.MS338.PB802_1366X768_512M_4G_RAYLAN_REF60.part2 | Download | |
| TP.MS338.PB802_1366X768_512M_4G_RAYLAN_REF60.part3 | Download |
For video tutorials, visit “Kazmi Elecom” on my YouTube channel.
sir g thank you very much for sharing this softwear
you are grate
Ok
Farmers file1366*768
Sir chenghong led m new bord tp.ms338.pb802 lgaya h is la software bya dain plz
koi bhe kar len
hi sir
I’m Amar Nagi (M) 9971231491
my board TP.MS338.PB802_1920X1080_WISDOM_8GB_1GB CHINES REMOTE CAN U ARRENGE THE SOFTWARE FOR THAT?
Not available right now. when will be arranged I will post it
Thanx for reply .
Sir want to know that, can I update KitKat to lollipop firmware for that?
No
Hello bro how to know that the tv board display is 1366×766 or 1920×1080
Wisdom shear par atak gya h
hi sir
sir mera jo tv hai woh full hd bola gaya hai uspe full hd videos bhi play hoti hai aur agar me uske saath pc connect karta hu to bhi 1920x1080p show karta hai par kal maine usme ek ap dali device info ki us se jab searc kara to mere screen ke pixel 1280×720 show hue. iska matlab ke mere screen full hd nahi balki HD hai, kya mai true Full HD screen khareed sakta hu , agar haa, to kaha se khreed sakta hu?
panel ka number google karen usme screen resolution pata chale gi
please call 9849556529
I want to buy the original one.
Sorry dear. I dont sale software. All are free on this website
dear sir
there are 5 files in the zip file can i copy all that into the usb flash drive .
extract any one part you will get the folder. transfer bin file to USB
hello!thanks for all the stuff you give for free.but mine i have a chinesse android tv with tp-ms338-pb802 m.board stuck on logo i have download and extrack then copy bin file to usb all well at this point plug it to usb port switch on the tv but nothing happen.stuck only on logo is this possible a faulty serial flash memory please.
change the USB Disk and try again
Hi sir I want ms338.802 . 60bin file sir
Sir ms338 pb802 ref55.bin
Is ka remote bata dein kon sa work kare ga
Thanks
Wisdomshare hy china wala laga len
hi sir,
I’m Amar Nagi (9971231491)
I have TP.MS338.PB802_1920X1080_WISDOM_8GB_1GB Chines Remote, Can u arrenge the software for that?
sorry dear not available in 8gb
Hi sir,
I’m Amar Nagi (9971231491)
sir mera question hai ke mere tv ka main board TP.MS338.PB802_1920x1080_1gb_8gb hai. par screen 50inch 1280X720p hai, Kya mai tv ki screen change karwa sakta hu 1980X1080p wali agar ha to kaha se mileyge aur kitne ki milege?
50 inch mere khial me 1920×1080 he honi chahye. ap panel number google kar k resolution check karen
Sir Mike TP.MS338.PB802 ka software chahiye
Sir, my board(TP.MS338.PB802) is ok. but, the remote does not match with any remote which I have already available. Tosiba remote matched but only power botton(stand by) thats all. So, I want to upgrade firmware to
samsung IR remote. I used to upgrade this firmware but the board does take any loading.
So, sir kindly give me an any solution for this resion.
Regards,
Boro
better to use universal remote
assalam o alaikum sir tp.ms338.pb802 8g 1g need in 1366×768
I have already shared what I have
Sir my board is (TP.MS338.PB802) 512 ram n 2gb rom I installed software from ur website and install as method shown ur video but nothing happened ur software ref no. is 60 but I need ref no.56 can I rename
60 to 56 is it possible to boot kindly guide me.
Thanks
dear you can use sos file or you can rename to sos by ref60
Sir mere pas ching hong ruba e5800i bord TP.MS338.PB802 he is me software Kon sa ho ga
ap kion software karna chahte hen??
Is ka apna original
Sir is ka lvds map se chang kiya to sacreen black ho ge he is ko kase theeq kare
Sir me ne is ka lvds map chang kiya to sacreen black ho ge ching hong ruba ki led 32″ ki he bord TP.SM338 .PB802 model ab theeq kase ho gi
recovery karen ya phir software dobara hoga
Sos wali fail Kon se he
usb se ho jye go sos wali file
Aap ki wap sid se kon sa part he palees sir bata de hum ne kafi part download kiye he lekin koi sport in hoa sos wala part kon sa he palees sir
kisi bhe ref file ko ap sos se rename kar sakte hen
Sir software to ho gya rimot kam ni kar raha he is samsung wala software kiya he ab kon sa rimot lgane
M90 laga len ya ki universal laga len
Sir, why this board (TP.MS338.PB802 or PB801) on Home Screen at first time. Then we have to change it to the AV mode or HDMI mode. Every time when I power on the tv we have to change Source setting. It is not an Memory mode. I have already uploaded the firmware. So, Sir is there any solution Please.
Thanks,
no solution
Hello, como se mi REF para descargarlo?
no issue. you can rename ref to sos
Hola , qué tal? Como se ref es mi placa? Yo.ms338.pb802?
you can download according to your panel resolution but remote may not match
hi sir
i just dont knw the ref. number in my tv can u tell me please where n how to find it
thk u
you can check in service menu
hii sir
mera problem cornea 32 inch smart led tv model no.32MS4000A12
software konsa download karke chalu hoga ………….
is brand me nai hy mere pas. koi dosra kar len board dekh kar per remote chane ho jye ga
TP.MS338.PB802
CORNEA 32 INCH SMART LED TV
thank you sir for replying
i tried ref75 it works well but internet seems slow to respond ( i’v changed ref75 to sos )
the issue is that i have a tp.ms338.pb802 bored and before i installed the new software of ref75 a software for tp.ms338.pb801 board was installed with ref85 so it was not the right bored and also not the right ref. no. all was wrong ! so i couldnt know the right ref no from service menu
any other ways?
thank u a lot
do not play with it. slow internet is not the software issue. load any software which work
hi sir
i tried ref 75 n it works well but it seems i have a problem with booting
when turn tv of with remote and get to standby when return it on with the remote it takes too long to start
may the software b heavy for my board (tp.ms338.pb802 512M 4G )
i tried samsung n ref 55 it dosent work stops on data loading
thanks your were so helpfull
recently i shared a video. no need to load software if stuck on logo for this board. you can watch
Hi.
I tried ref 75 and its work but when i am doing tune for channels it is going to 100 channels and restart itself can you please help me on this?
TP.MS338.PB802
standbay problm help me
hardware issue. check board voltage first
sir my tv is geepas from uae software down and I download the software of the board Tp.MS338.PB802 it installed but the remote control not working and the language does not have arabic so can you help me
try another one for the required language and use universal remote
hi sir pls i want upgrade for TP.MS338.PB802 FROM ANDROID 4.4 TO LAST ANDROID UPDATE
No way
tp.ms338.pb802 1920*1080 1gb 8gb sir
Dear
TP.MS338.PB801 43 inches wisdom smart tv 4.4.4 KitKat. Can I upgrade to lollipop ?
No
I need .tar file unziper
try with 7zip
Sir software to ho agya he e shear ni raha mari led chang hong ruba he
sir 1g 8g software 1920 pz
Sir can i get software tp.ms338 pb801 for nikai 40 inches
try to hard reset. no need to load firmware
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
ms338.pb801 ref 53 hai par main usey remote samsung chahta hoon kya solution hai ref53 par koi or ref char sakta hai?
yes samsung wala kar len
rename the software to allupgrade_ms338_4G_sos.bin
43 inch changhong rube smart tv
Board: TP.MS338.PB802_A10
sw upgrade nane : allupgrade_ms338_4G_ref52.bin
issue: tv working fine but android option not available.
I reset the TV from service menu but vain.
what should i do?
reset to factory default. watch the video for a better understanding. And if not work after a hard reset then it means an android chip issue. replace the chip/board.
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
Please Sir i want TP.MS338.PB802 ref 42
no need to install firmware on this board. just reset to recovery mode. Follow the link
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
A.o.a Kazmi sir
Sir mere pas changhong ruba ka smart tv ha
Board type Tp.Ms338_PB802.A10
Sw upgrade name
All upgrade msd338.4G.ref56.bin
Sir is k liye kon sa software kro jis pe changhong ruba ka remote b kam kre.
Sir muj se galti se service menu me MAC clean ho gya jis ki waja se app store b ni chl rha aur na hi screen mirroring hoti ha.
Sir plz guide me Thank you
God bless you ♥
w.salam dear
ap isko factory reset karen recovery option se. link me video ko follow karen
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
Thank you so much♥
A.oa sir g me ne factory rest b kiya recovery option se pr ye phir b wese hi
MAC address; ff.ff.ff.ff.ff.f3
CI+key; 0×FFFFFFF
Device id _ _ _
Show ho rha h
Led changhong ruba smart tv
Sw upgrade allupgrade.msd338.4g.ref.bin
Board type Tp.ms338.pb 802.A10
Sir g play store b ni chal rha or na h screen mirroring hoti ha
Sir g plz guide me
Again thank you
then load software
A.o.a
Sir g in me se konsa software kro jis pe changhong ruba ka remote b kam kre Sir kya me new software kro ga to eshare or screen mirroring hogi??
Sw upgrade : allupgrade.msd338.4G.ref56.bin
Sir g kya ref ka to koi issue ni hota
Jazakallah♥
w.salam
iski update nai hy
Assalam o alaikum sir,
sir bd tp ms338 pb802 ka firmware porana hone ki wajah se youtube tv app update ni hota is liye wo chalta ni hai andoid 4.4 hai kya is mein mein high versoin yani 5.0 ya above wala firmware kr skta ho
plzzzzzzz guide me
No
i have changhong ruba led 39f5800i, netfelix ,youtube etc smart apps are not working , i reset it tried everything but it didnt work so the motherboard is tp.ms338.pb802 so should i re intsall the software or not
no need to reinstall the software. It may be android 4.4. that’s why
AOA
Kazmi sir mera led ka SW Upgrade name allupgrade_msd338_4G_ref35.bin hai, mai ne us mai TP_MS338.PB802_1366*768_Samsung_4GB_512MB Software kia hai, us k bad se LED standby Mode per hai remorte bhi work nahi ker raha or back keypad pannel bhi work nahi ker raha, Please share me the solution
jazakallah
koi hal nai. Jtag karna pare ga. software complete nai hua ise standby pe nai hona chahye
What is the resolution code for 1920×1080 of this board
code not available for this board
Sir mere pas Led tv ha model number : LED32E5800i or Module number: TP.MS338.PB802 ye Smart home pe a ke stuck ho jati ha kindly iska Solution bta dein. Ager Firmearn install hone wala tu wo provide krde
firmware karne ki zarorat nai. is link me video hy woh dekh k follow karen
https://www.kazmielecom.tech/how-to-reset-smart-tv/
Sir Coleridge changing problem software please. 1920×1080(RGB)FHD Dispaly Sony
no need to load software. just recover it. follow the video on the following page:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
I want update for this board TP.MS338.PB802
It’s android 4.4.4 already I want update for it
Thank you for your attention
can not update. change board for latest version
What is the latest version..?
What is the No. of the latest board.?
And what the version of android on it ..?
version 9 to 11 are available. search google
Please give me the board number
tp ms338 pb802 ye download nahi ho raha Skipped countdown aa raha hai
Thanks for sharing your technical
Sir. I have a 29 inch Phillips led tv . The panel model number is V290Bj1-XC01 . It has over scaning issue . I want the source pcb EDID hex file to write the eeprom . Can you please provide the correct hex dump file?
may be a hardware fault not software. reset to factory default and check
Hello Brother,
my TV is Myros
Model No : DS408000AFBNC
motherboard : TP.MS338.PB802
and tv is 40 inch , don’t know in your provided list which software firmare i pick and download? please guide me
another question i want to install netflex does this new update have netflix?
no update available for this model/board
