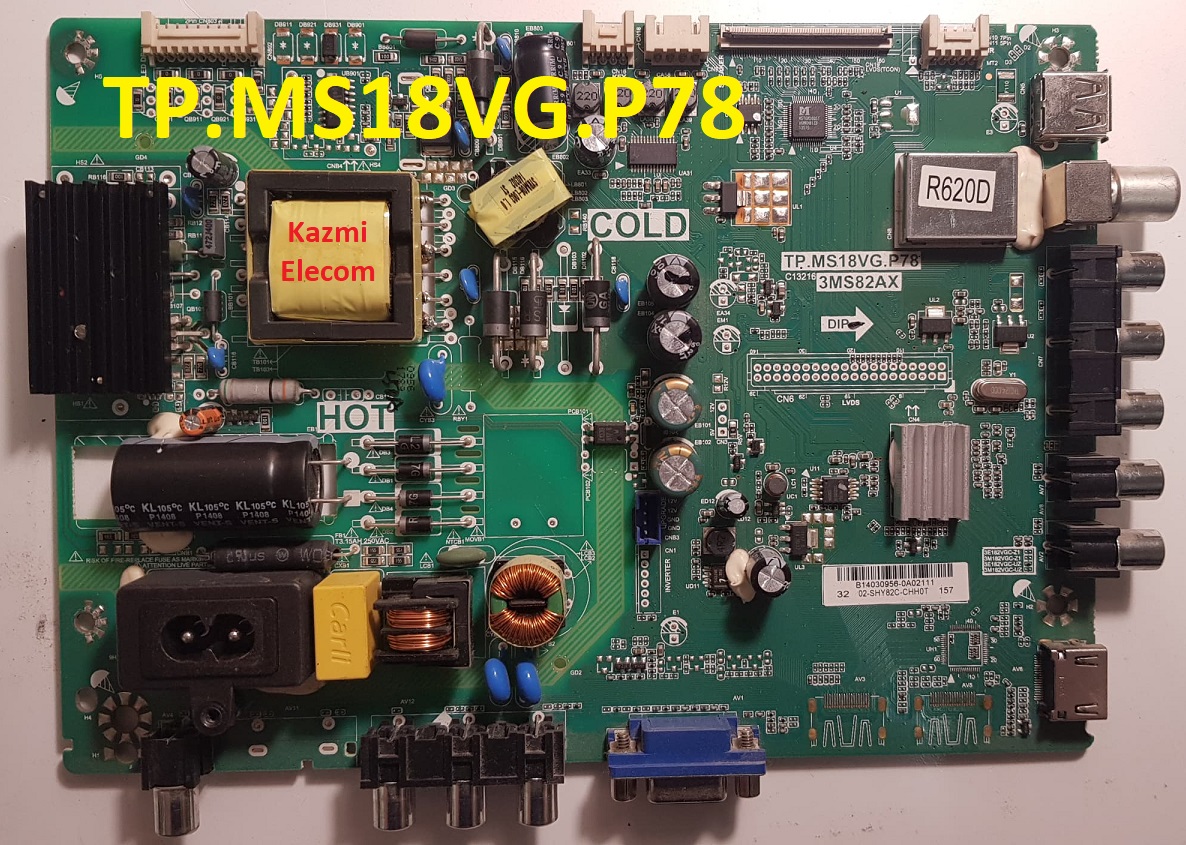

TP.MS18VG.P78 LED TV Board
TP.MS18VG.P78 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Markets. It can support 19-inch to 42-Inches LED panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software upgrades as well. TP-MS18VG-P77-3MS82AX has HDMI port support of 1.4 and HDCP support of 1.1.
TP.MS18VG.P78 is compatible with Non-HD and FHD LCD/LED panel screens. TP_MS18VG_P78 3MS82AX is widescreen supported and also has a multi-language option. TP-MS18VG-P77 has its special feature of AV.TP.MS18VG.P78-3MS82AX software collection is given below for free download.
General Specifications:
Board Make: China
Board Model: TP.MS18VG.P78 B/C (3MS82AX)
Main Chipset: MST3M182VGC-LF-Z1
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
AUDIO: TPA3110LD2
Audio O/P Power: 2 x 8 Watt (8 ohms)
PWM LED driver: OB3363QPA (OB3368QPA)
Panel Voltage: +5V/+12V DC (Default 12V)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Tuner: R620D
Electrical Parameters:
Working Input Voltage: AC220 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump & USB Bootable
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download 3MS82AX Firmware File:
Download your required file of the following MS82PT firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
TP.MS18VG.P78 Firmware Collection Free Download:
