TP.MS18VG.P77 Firmware Collection

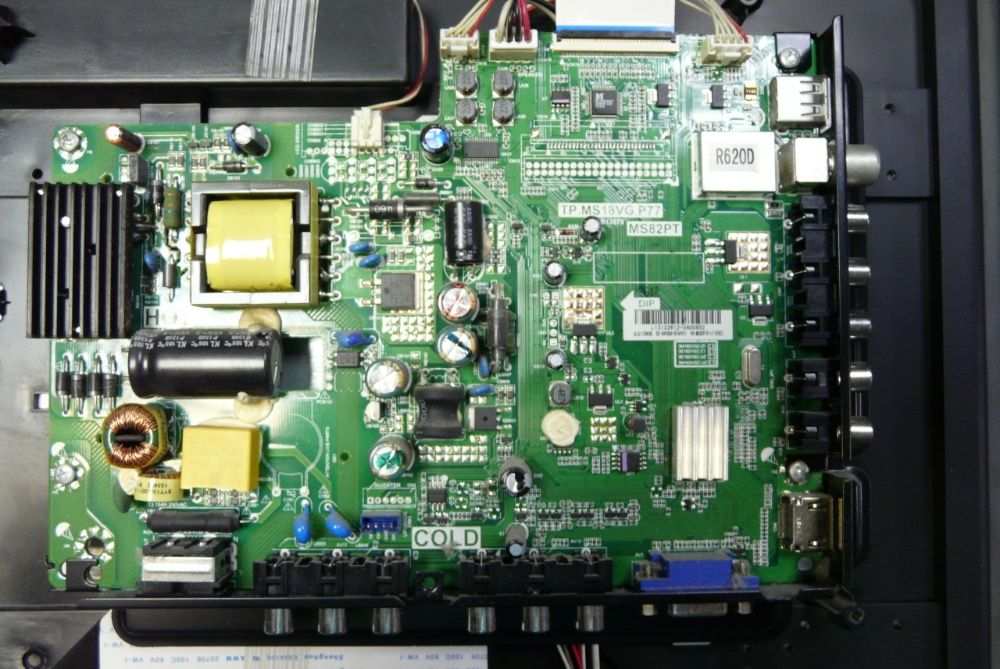

TP.MS18VG.P77-MS82PT is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 19-inch to 42-Inches LED panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software upgrades as well. TP-MS18VG-P77-MS82PT has the HDMI port support of 1.4 and its HDCP support of 1.1.
TP.MS18VG.P77_MS82PT is compatible with Non-HD and FHD LCD/LED panel screens. TP_MS18VG_P77 MS82PT is widescreen supported and also has a multi-language option. TP-MS18VG-P77-MS82PT has its special feature of AV.TP.MS18VG.P77-MS82PT software collection is given below for free download.
General Specifications:
Board Make: China
Board Model: TP.MS18VG.P77 MS82PT
Main Chipset:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V DC (Default 12V)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC220 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download MS82PT Firmware File:
Download your required file of the following MS82PT firmware and then extract it you will get the folder. Now you can write the file with a programming tool. For more Details about the download, process watch the video Click Here
TP.MS18VG.P77-MS82PT Firmware Collection Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS18VG.P77 MS82PT_B13273_1366X768_Dump | Download |
| 2 | TP.MS18VG.P77_DENKA YS-24LED_Backup_Dump | Download |
| 3 | TP.MS18VG.P77_ERISSON 19LET35_Backup_Dump | Download |
| 4 | TP.MS18VG.P77_ERISSON 24LET35_Backup_Dump | Download |
| 5 | TP.MS18VG.P77_FUSION FLTV-24C10_Backup_Dump | Download |
| 6 | TP.MS18VG.P77_FUSION FLTV-32C10_Backup_Dump | Download |
| 7 | TP.MS18VG.P77_HYUNDAI H-LED32V19_Backup_Dump | Download |
| 8 | TP.MS18VG.P77_Meile LE32M12_Backup_Dump | Download |
| 9 | TP.MS18VG.P77_Merlot LE32M16_Backup_Dump | Download |
| 10 | TP.MS18VG.P77_Panasonic TH-23A403DX_Backup_Dump | Download |
| 11 | TP.MS18VG.P77_ROWA Leroy LED32C390_Backup_Dump | Download |
| 12 | TP.MS18VG.P77_Sansui 28 Inch_Backup_Dump | Download |
| 13 | TP.MS18VG.P77_Singer SCT24B2500TC_Backup_Dump | Download |
| 14 | TP.MS18VG.P77_Singer-32 Inch_Backup_Dump | Download |
| 15 | TP.MS18VG.P77_TCL 19T2100_Backup_Dump | Download |
| 16 | TP.MS18VG.P77_TCL 24B2520_Backup_Dump | Download |
| 17 | TP.MS18VG.P77_TCL 24F3300_Backup_Dump | Download |
| 18 | TP.MS18VG.P77_TCL 32B2600_Backup_Dump | Download |
| 19 | TP.MS18VG.P77_TCL 32B3700_Backup_Dump | Download |
| 20 | TP.MS18VG.P77_TCL L24F1590_Backup_Dump | Download |
| 21 | TP.MS18VG.P77_TCL L32D2720_Backup_Dump | Download |
| 22 | TP.MS18VG.P77_TCL L32F3309B_Backup_Dump | Download |
| 23 | TP.MS18VG.P77_TCL LED24F2300F_Backup_Dump | Download |
| 24 | TP.MS18VG.P77_TCL LED29B2500_Backup_Dump | Download |
| 25 | TP.MS18VG.P77_TELEFUNKEN TF-LED32S23_Backup_Dump | Download |
| 26 | TP.MS18VG.P77_TCL 32T3500B_Backup_Dump | Download |
| 27 | TP.MS18VG.P77_Thomson 32B2600_Backup_Dump | Download |
