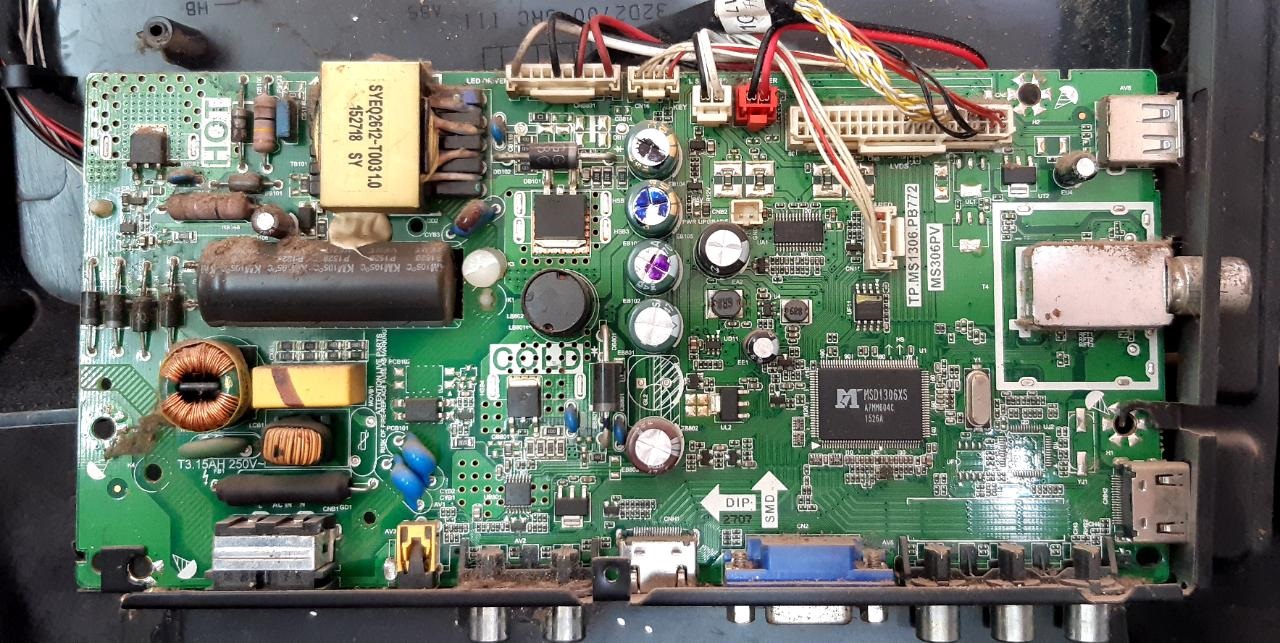

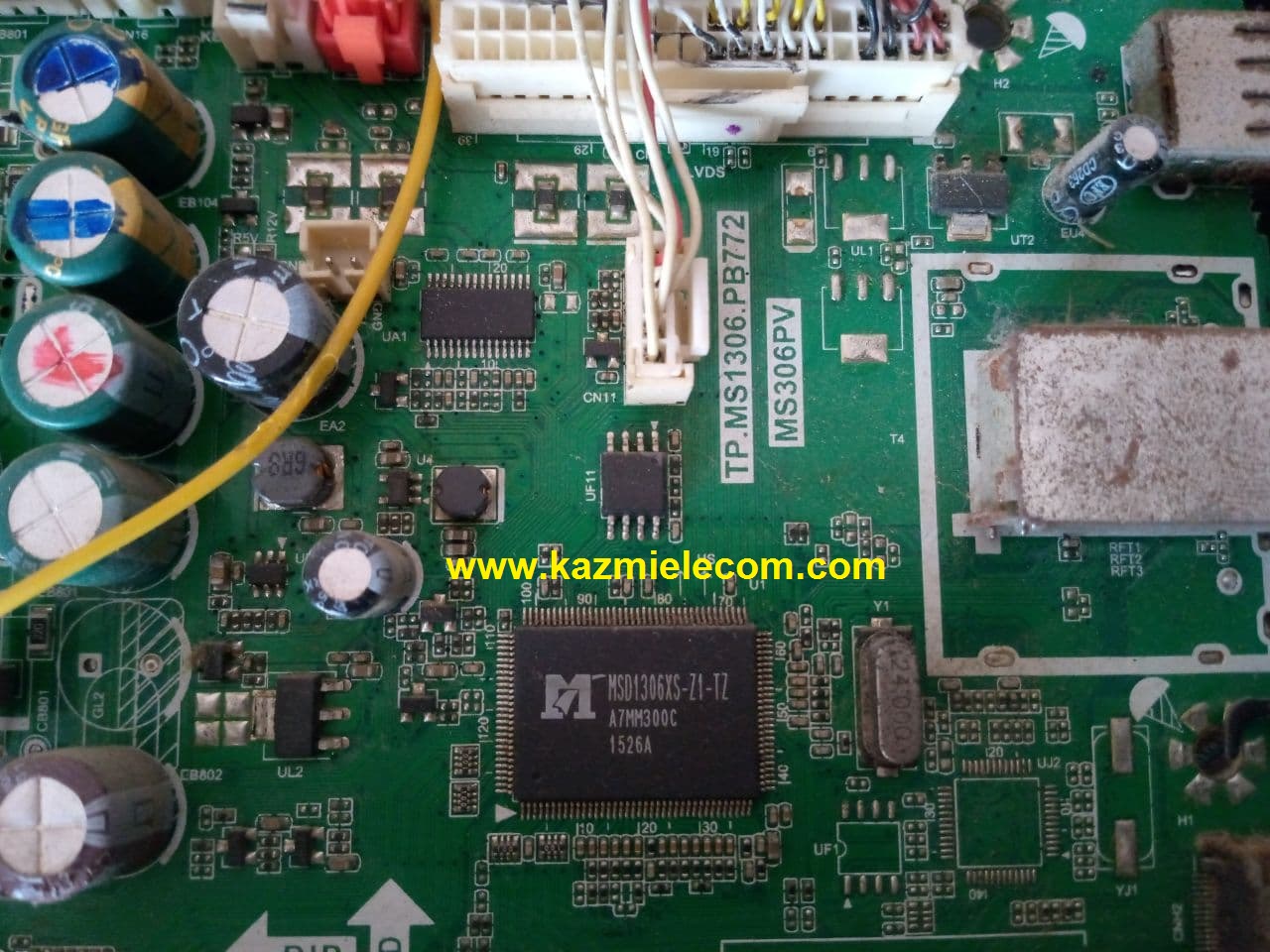

TP.MS1306.PB772 LED TV Board
Model No. TP.MS1306.PB772 MS306PV (Combo Board)
Main Chipset: MSD1306XS
LED Backlight: 36-42v 600mA
Display Format: up to 1920×1080
Panel Supported: 24″ t0 32″
Aspect Ratio: 4:3, 16:9 & 16:10
MS306PV General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: 12V DC Default
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC 220V
Maximum Current: 3000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
Note: The following is given MS306PV firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download MS306PV Firmware files:
Download the following given MS306PV firmware and then extract you will get the folder. Now load the file by the programmer. For More Detail about the download, process watch the video Click Here
TP.MS1306.PB772 MS306PV Firmware Free Download Here :
hi sir do you hive zp.vst.v56ru.p815 software
try pb816
Assalam u Alaikum.
Kazmi sahab main pochna chahta hon k mere pas Panasonic ki LED hai jis main TP.MS 1306 PB772 MS306PV board laga hua hai main is ki jaga Android board use kerna chahta hon please is k lie koi suggestions to den.
Thanks.
w.salam dear koi bhe jo market me latest available ho laga len no issue
Sir kisi achay card ka number send ker den.
Thanks.
