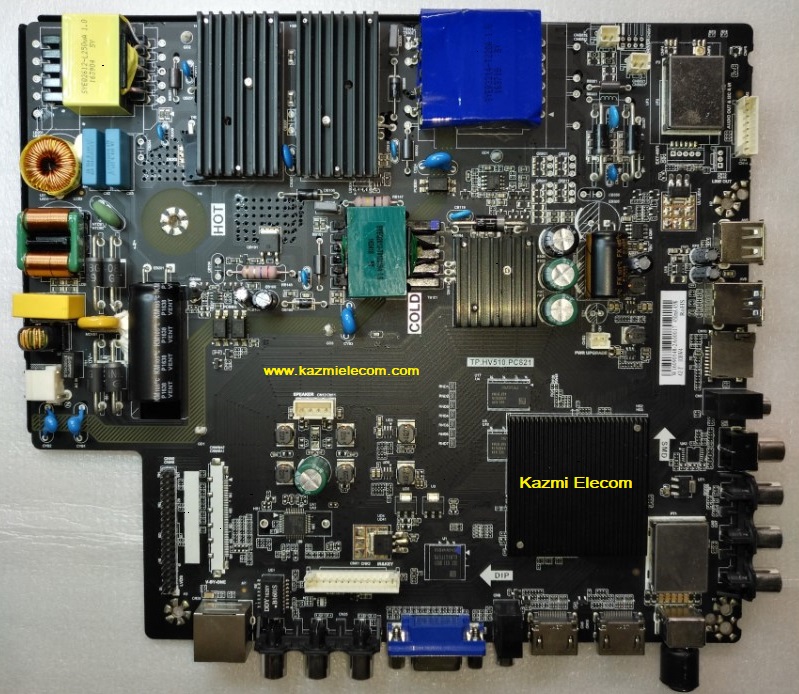

TP.HV510.PC821 4k Triple Board
TP.HV510.PC821 is a Smart WIFI Network Intelligent 4k Triple LED TV Board that is suitable for the Middle East and Asian Markets. TP_HV510_PC821 can support up to 3840×2160 Ultra High Definition (UHD) Resolution. TP-HV510-PC821 is compatible with 42-inch to 65-inch screen panels. TP HV510 PC821 has many universal connectivity interfaces and multiple input ports like Dual AV, Dual HDMI, Dual USB, VGA input, etc.
A special port is given for external SD card memory. RJ45 Connector is available for wired internet connection. Its WIFI reception is very strong. Audio and Video Quality of TP.HV510.PC821 is very good. TP.HV510.PC821 is a triple board that has a backlight driver, ATV module, and power supply built-in in a single card.
Technical Specifications:
Brand/Mark: China Universal 4K Three-In-One Motherboard
Main Board Model: TP.HV510.PC821
Backlight : 111-180V 80W 450mA
OS: Android 4.4
CPU Frequency: 1.2 GHz
GPU Frequency: 432 MHz (4 Core GPU)
Ram: 1Gb Mb DDR
Rom: 8 Gb eMMC
Screen Supported: 42″ to 65″
Resolution: up to 3840X2160 UHD
Service Code: 2580
Power Consumption: 108 Watt
Note: Following the given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download your required resolution and then extract it you will get the folder. Now copy the bin file to USB. For more Details about the download process watch the video Click Here
TP.HV510.PC821 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.HV510.PC821_3840x2160_1G_4G_Ref44_USB.part01 | Download |
| TP.HV510.PC821_3840x2160_1G_4G_Ref44_USB.part02 | Download | |
| TP.HV510.PC821_3840x2160_1G_4G_Ref44_USB.part03 | Download | |
| TP.HV510.PC821_3840x2160_1G_4G_Ref44_USB.part04 | Download | |
| TP.HV510.PC821_3840x2160_1G_4G_Ref44_USB.part05 | Download |
TP.HV510.P81
Board ki clear pics send karen email pe (kazmielecom@gmail.com) ya Forum page pe
I have a android motherboard TP.HV510.PC822
not booting
can i use TP.HV510.PC821
same family but I never experienced
TP.HV510.PC822 is not on the list.
Can I use TP.HV510.PC821?
I think the main chipset is the same but on your own risk
nice post-TP.HV510.PC822
sorry not available this time
how to boot from usb.. my usb not booting
change the Pendrive
Hi please can I get this firmware the link here is not working (TP.HV510.PC821)
