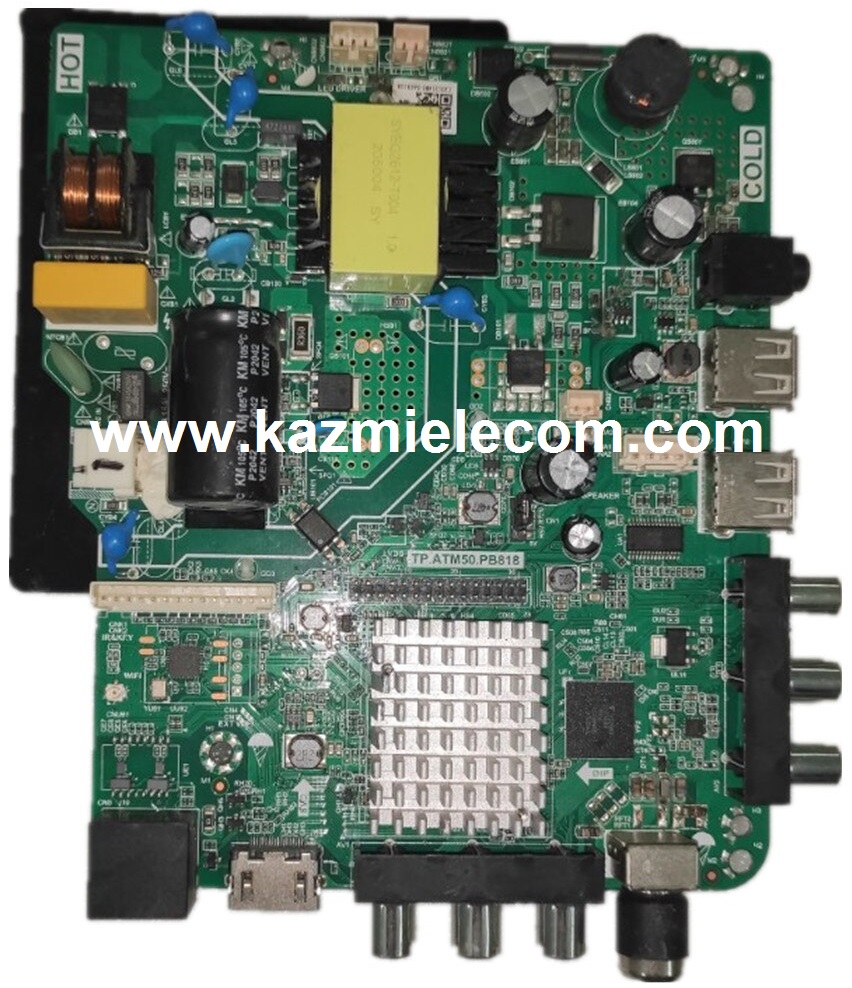

TP.ATM50.PB818 Smart Android Board
TP.ATM50.PB818 is a universal android network driver smart led tv board with an FHD resolution of 1920×1080. TP_ATM50_PB818 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP ATM50 PB818 Smart Board has Dual A/V ports, Dual USB interface Ports, and an HDMI port as well. TP-ATM50-PB818 has a LAN/RJ45 Connector interface port also for the wired internet network. TP.ATM50.PB818 is a Combo Network Triple play board that has a Digital TV tuner built-in in it.
The Graphics and Sound quality of the TP.ATM50.PB818 android board is very good and the Response rate is very efficient. TP-ATM50-PB818 china’s smart network board can support up to 42″ LED Panels but for better results, it can be used in 28″ to 32″ panels. TP.ATM50.PB818 firmware file is given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Android WIFI Network Drive Smart Board
Main Board: TP.ATM50.PB818
Main Chipset: aml920
Operating System: Android 9.0
CPU: A53
GPU: Mali-450
CPU: A53
GPU: Mali-450
CPU Frequency: 1.2GHz
GPU Frequency: 432MHz
RAM: 512 Mb
ROM: 4Gb
Backlight: 80W 450MA
Resolution: up to 1920×1080
Screen Size supported: 28 to 32 Inch
Audio Output power: 2x8W
Input Voltage: 200-240V AC
Firmware:
Firmware Type: USB Updateable Firmware
Note: The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.ATM50.PB818 firmware file for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.ATM50.PB818_1366X768_512M_4G_9.0.part1 | Download |
| TP.ATM50.PB818_1366X768_512M_4G_9.0.part2 | Download | |
| TP.ATM50.PB818_1366X768_512M_4G_9.0.part3 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
