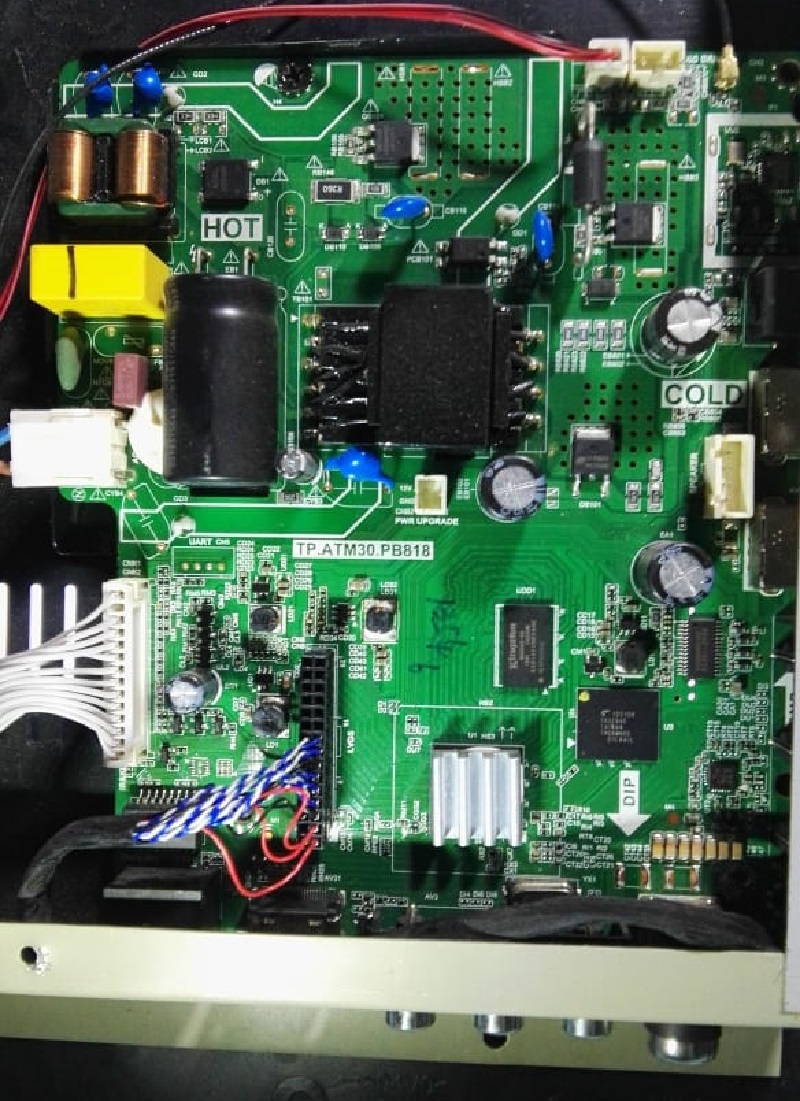

TP.ATM30.PB818 Universal Android LED TV Board
TP.ATM30.PB818 is a universal android network driver smart led tv board with the FHD resolution of 1920×1080. TP_ATM30_PB818 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. TP ATM30 PB818 Smart Board has Dual A/V ports, Dual USB interface Ports, and a HDMI port as well. TP-ATM30-PB818 has a LAN/RJ45 Connector interface port also for the wired internet network. TP.ATM30.PB818 is a Combo Network Triple play board that has the Digital TV tuner built-in in it.
The Graphics and Sound quality of the TP.ATM30.PB818 android board are very good and the Response rate is very efficient. TP.ATM30.PB818 china’s smart network board can support up to 42″ LED Panels but for better result it can be used in 28″ to 32″ panels. TP.ATM30.PB818 firmware file is given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Android WIFI Network Drive Smart Board
Main Board: TP.ATM30.PB818
Main Chipset: aml920
Operating System: Android 5.1
CPU: A53
GPU: Mali-450
CPU: A53
GPU: Mali-450
CPU Frequency: 1.2GHz
GPU Frequency: 432MHz
RAM: 512 Mb
ROM: 4Gb
Backlight: Clipper 48 W 12V and 64v 30-57 V / 25 W
Clipper 48 W 12 V and 104 V 58-87 V / 25 W
Resolution: up to 1920×1080
Screen Size supported: 28 to 32 Inch
Audio Output power: 2x8W
Input Voltage: 200-240V AC
Firmware: allupgrade_aml920_4G_512M_mxl661_50.img, allupgrade_aml920_4G_512M_multi_54.img
Firmware Type: USB Updateable Firmware
Note: The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. (ATV function of 1366×768 firmware is not Enabled). If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
TP.ATM30.PB818 firmware file for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.ATM30.PB818_1366x768_512M_4G_Ref50_Tested.part01 | Download |
| TP.ATM30.PB818_1366x768_512M_4G_Ref50_Tested.part02 | Download | |
| TP.ATM30.PB818_1366x768_512M_4G_Ref50_Tested.part03 | Download | |
| TP.ATM30.PB818_1366x768_512M_4G_Ref50_Tested.part04 | Download | |
| TP.ATM30.PB818_1366x768_512M_4G_Ref50_Tested.part05 | Download | |
| 2 | TP.ATM30.PB818-1920x1080-512M-4G-REF54-Pakistan.part1 | Download |
| TP.ATM30.PB818-1920x1080-512M-4G-REF54-Pakistan.part2 | Download | |
| 3 | TP.ATM30.PB818-1366x768-512M-4G-REF60-Multi.part1 | Download |
| TP.ATM30.PB818-1366x768-512M-4G-REF60-Multi.part2 | Download | |
| 4 | TP.ATM30.PB818_1366x768_512M_4G_Ref35_MX1661.part01 | Download |
| TP.ATM30.PB818_1366x768_512M_4G_Ref35_MX1661.part02 | Download | |
| TP.ATM30.PB818_1366x768_512M_4G_Ref35_MX1661.part03 | Download | |
| TP.ATM30.PB818_1366x768_512M_4G_Ref35_MX1661.part04 | Download | |
| TP.ATM30.PB818_1366x768_512M_4G_Ref35_MX1661.part05 | Download | |
| 5 | TP.ATM30.PB818_1366X768_512M_4G_REF54_INDIA.part1 | Download |
| TP.ATM30.PB818_1366X768_512M_4G_REF54_INDIA.part2 | Download | |
| TP.ATM30.PB818_1366X768_512M_4G_REF54_INDIA.part3 | Download | |
| TP.ATM30.PB818_1366X768_512M_4G_REF54_INDIA.part4 | Download |
i need bios for sundirect sat. rec model no samsung DSB-B580R
not available
how to enable ATV function.
is software me option he nai hy ATV ki. software developer he kar sakta hy
bhai meray pass atm30 pb818 1366 * 768 wala board ha is ma 1920*1080 wala software ho jaye ga…agar ho ga ro konaa ho ga.. thx
g bhai ho jye ga magar apka panel support nai kare ga. agar FHD panel pe lagana hy to kar len
tp atm30 pb818 software download hi nahi ho raha
Salam..Meri led ka wifi on nhi ho rha… Software btaen…
software ki zarorat nai. tv ko reset kar k dobara try karen. aur pehly mobile hotspot se connect karen
Aslam O Alikum kazmi bahi is ma boot files nahi hain
]
w.salam dear zarorat nai hy. tested software hy without ATV
how to enable home mode of wisdom smart cloude tv tp.atm30.pb818 .there is no option for home and vga in source menu
I think these will be disabled from the software. check in the service menu. otherwise not solution
Assalam u Alaikum
Mere pass to.atm30.pb818
Jo continue burn mode man ha. Software Koi usb accept nahi kar raha. Bas burn mode par chal raha ha. Please guide me
w.salam dear ap burn mode se exit ka process follow karen. otherwise, board ka issue ho sakta hy
Hello Sir.. is board me youtube me sign in nai hora hai koi bhi google account… kya solution h iska..please help
factory default kar k dobara try karen
tp.atm30.pb818. Ye chrome cast issu aara hai kya kare
isme inbuilt browser hoga woh use karen
Logo kaise set kare TP.ATM30.PB818 32inch android main
Sir service menu kaise khole
hello , i have new assembled smart tv with wishdom share smart cloud tv. i want to change os of this tv, is it possible to do so.i want normal android in it like sony ,mi lg have it.please help me out in this. in this board is TP_ATM30_PB818,. please revert me asap.
can not do it
Hello, I have a wisdom share smart cloud tv, after plugging in an accepted flash drive. on apps like Netflix, Chrome etc I cannot download or have access to flash drive. But in media app I have access to flash drive. Is they anyway I can extend TV memory using flash drive or will updating firmware fix it. Current firmware version – 20200228_19449. Android 5.1.1 and main board – TP.ATM30.PB818. Thank you.
No
sir mano full hd software tp.atm30.pb818 1920 1080 chahia
/
not available
Aoa sir mry pass led tv iska board no TP.ATM30.PB818 ha is pa software load kiya ha lkn software load krany say pahlay display nah tha software k bd b display nah aya volt saray thk hain ky masla hu sakta ha dusara is board ki price kya ha?
dear price ka to idea nai. board me fault ho sakta hy ya panel me. agar software ka issue ho to logo pe stuck rehta hy
hello sir mere paas TP.ATM30.PB818 board he i m a technician of surat gujarat
is board me tv onn karte hi widsomeshre likha aata he fir wahi repeat hota rehta he
aapka diya hua softwear dala but koi farq ni pa rha please give me some idea.
software load nai hua hoga. koi aur software try karen ya phir hard reset karne ki try karen
Kazmi Bhai is board k liay ya sari files download kr k use krni hongi?
AP thori c details bta daina to mehrbani hogi.
dear post me sab likha hy ap read he nai karte
Kazmi bai atv function kaise enable kare
software me disable hy. software developer kar skata hy
TP ATM 30pb818 1920/1080 software sir
Salam wale kum …TP.ATM30.PB818 Ka 1920×1080 Resolution ka software chahiye sir.
Tp atm30 p818 android board.
Kya ye board dell ki lcd me laga sakte hain 24 inch 1080 resolution hai? Uska apna board kabhi on hota ya on krke off krta ho to dobara on nhi hota.
Board ki price kya hai?
Thanks.
dear isme ap universal board laga len 83.031 wala
Salam kya 1920×1080 wala firmware Ms358.PB818 waly board mein chaly ga??
No
As salam o alikum! Sir agr apky pas 1366 my aesa software jis my atv chly tu plz yahn upload krdyn ya mjhy plz bata dyn kha sy mily ga maine kafi sites visit ki hain magr usmy indian software he hai atv option nh hai agr apky pas hai or ap sell krna chahty hain tu plz btadyn apki mehrbani hogi
mere pas nai hy. jab mile ga to share kar dun ga
sir software download nhi ho rha use ka liya kya krna chay bhut bar download kran ki kosi kri ha
how to download me click here pe video tutorial hy us se idea len
SALAAM
TP-1TM30-PB818 BOARD HAI….SETTINGS RESET KARNE SE GRAPHICS KHARAB HOGYE HAI….KINDLY KONSA SOFTWARE KARU JIS SE SAHI HOJAYE ORYE SOFTWARE DOWNLOAD KESE HOGA…PLZ BATAYE
w.salam dear software karne ki zarorat nai. service menu se setting kar len ya phir factory default kar len
Salam
Dear
Mene 1080p wala software lagya upgrade hone k bad Display blank aarha hai
Kindly guide me
w.salam
ap k panel ki resolution may be 1366 ho
salam…
atm30.pb818…
sir wifi connect tha lekin chal nahi rha tha,,,maine wifi forget kia then again lagane ki koshish ki to chala hi nai…..tv off krdia maine kaha shayad wifi ka issue hga….jab doobara chalaya toi wifi ka option hi ghayab tha….wire lagai to uspar bhi nai chala internet….next day cable bhi chalna band hgai….maine reset bhi kia or software bhi load kia…par same issue hai….pls guide..
w.salam
maybe hardware issue
Hellow sir tp atm30 pb818 ke software ma costumization kar sakta hai kya or iska animation change kasa kry plz guide me plz rply
check in videos section
Bhai meri led ka wifi on nai horaha hay sab kuch kr liya reset lagaya hotspot bhi connect nai horaha hay plz reply atm board
reload software. otherwise hardware issue
Sir I have 8gb ROM 1 GB ram model but it is 4gb software
mere pass atm30.pb818 board hai jiski resolution 1366*768 hai , iska display nahe show horaha on hone k baad sirf awaz ati hai display nahe , is that software issue ? or other issue ? please guide me if u know about this fault …Thank you
dear first check your panel resolution. it may be incorrect software
Flashed the Firmware (multi). And now the remote control isn’t working.
try another remote
I am not repair shop. It’s my own TV, so I don’t know which one to try.
Do you recommend a specific remote so I can buy it?
Hi sir meri led ka board TP.ATM30.PB818 hai 32 inch bottom left corner pr safe mode araha hai r wifi bhi on nahi ho raha safe mode sai kaisy hataon
same as burn mode
sab chozain sahi chal rahi hain display bhi araha hai magar sirf safe mode show horaha hai
https://forum.kazmielecom.com/showthread.php?tid=10723
I need firmware of my android tv , Board Model mentioned TV358_DTMB/tmss_8g
allupgrade_aml920_4G_512M_mx1661_60.img
Usb mai sos file kar connect kiya per led ne boot nahi kar raha
Bin file 2 hain aur Sos file copy ki hai usb mai.
Thank you
all files usb me dal len. na ho to usb disk change kar len
A.A Kazmi Bhai me ne tp atm30 pb818 wala software kia ha board model b same ha. successfully install ho ya par aik issue ha.TV tuner ni aa rha es men.TV option gaeb ho gae ha yani local cable channel tune ki option ni aa rai.bas hdmi aur av ki option ha source men.tv option gaeb ha
Please guide
is software me tv ka option nai hy. ap dosra kar len
Aoa
Sir
TP.ATM30.PB801 is a Combo Network Triple play board that has the Digital TV tuner built-in in it ap ne btaya hy k is me Digital tuning hy, lakin mere pas digital tuning ka option nae a raha plz hal bta de
Ye bta de k ye Digital Tv per kese chalega?
lazmi nei sab me DTV tuner ho. per ho bhe sakta hy magar software me nai hogi option
sir how to enable DTV on this board
change software with DTV option
Sir I am a led tv manufacturer and I wanted to know how can I change remote for this card please help
Dear Bhai,
I am Shyam from India. I used to watch your videos on youtube and interesting tried to update my Wisdom Share Smart TV (Board # TP-ATM30-PB818) but your site’s download links are taking me to other website and even from there it is taking to various pages those are clearly intending to spread Virus and Malware on the firmware seeker’s computers.
Please correct these issue and provide me the exact link for the above firmware download. Thanks in advance.
no need to update. Chinese boards have a final version installed in it
Bhai mere paas factory inbuilt software hai sab kuch sahi se chlta hai lekin playstore se kuch apps (50-60mb+) apps installation failed ho jaata hai usb se downloaded apps bhi nahi chlti iska kya solution hai
no solution
Salam,
I Need resolution software (1920×1080) for TP.ATM30.PB818.
My mail Id : jashodeb.dasgupta@gmail.com.
Please help me problems.
RESPECTED SIR
tp.atm30.pb818 IS VALE BORD ME BURNT MODE YA AGING MODE START HO GYA HE SO BAHAR KESE NIKLE YA ISKA SOFTWER PLZ PROVIDE KARI E JI
https://forum.kazmielecom.com/showthread.php?tid=1916&highlight=burn+mode
Dear Brother,
I have installed the software successfully but the REMOTE CONTROL stopped functioning. What would be the reason and how can I resolve this issue??? Please help me. Thanks in advance.
try some other remote control
tp-atm30-pb817-software
Pls send
TP.ATM30.PB819(N)
Is board me remote work nhi krra hai plz send software
universal remote laga len
Assalamu Alaikum Ustad ji Mere Ko Jara board TP. ATM30. PB818 1366×768 is software k parts 4 . Ya 10 ktny krny pary gy
w.salam dear 1 file ko parts me divide kia gya hy. all parts download kar k kisi 1 ko extract kar len to 1 he folder bane ga
Assalamu Alaikum Ustad Ji Main Apna board number bhej raha hun aur software puchna tha aapse TP. ATB30. 818. 1366X768 ustad 1920,x1080 yh bhi software ho Jay ga Jo AP ki website py pry hain ktny part py software ho Jay ga4part 8wla Assalamu Alaikum Ustad ji Jis Tarah receiver ke Dam fail bante ISI Tarah LCD ki bhi dump file banti hai
w.salam dear 1366 wale panel me 1920 support nai karti hy. yeh panel ki resolution hy agar wrong load karen gay to display nai bane ga. tv board ka bhe backup lia jata hy per uska tariqa smart aur non smart tv ka different hy
Tp.atm.30.pb818 riovery file upload ker den
https://youtu.be/t7VVdJf2ydU
Bhai
tp.atm30.pb818 512+4gb
ki koi b file extract NH ho Rahi
ye kese upload Hogi
mere pass oktra 32 inch hai
Oktra brand me to nai hy. ap isko recover karen terminal se. video se idea len
https://youtu.be/t7VVdJf2ydU
assalam aleikazim sahaib..a 1920x1080p ka board No.TP atm 30 pb 818 ka software send kardein request ha apse plz mojhe download nahi ho raha plz
Dear Bro,
I have been trying to download the firmware but it is always taking me to different links and mostly with spyware / malware attached to it.
Is there any possibility to download directly from your website. Please help me out.
Thank you
use ad blocker
Dear Bro,
Is there any possibility to install Google Play Store in Wisdom Share Cloud Smart TV ? Kindly reply.
apk file can be installed only
Dear Bro,
I am really thankful to you because whenever I posted message, you replied without fail, no one else do like this. My sincere thanks once again for your helpful mind.
Here again, I would like to know one thing that what are the difference between the different Versions of the firmware.
Chinese board’s firmware have single build version means no more updates but reference is changed for different brands or logo or remote control according to regions
Hi sir plz i want u to advice me i have TP.ATM30-pb818 and i try all the code to enter service menu but nothing happen , my remote is copy from samsnug not samsung , can i buy an universail remote and what should i buy and thank u Mr elkazmi
no need to buy a new remote control. try service code one by one:
https://www.kazmielecom.tech/category/document/service-menu-codes/
I have this board in my tv
i have bought amazon fire tv stick but i cant find the tv in the device list as i want to pair the power on/off and volume buttons on the remote
can u tell me the ir profile so that i can find a workaround or any advice on how to solve this issue??
This is non-branded. try one by one
I have board TP.ATM.30PB818. With Android 5.1.1 can it be upgraded to a higher version I am unable to install netflix on my tv parsing error even from store. 1366×768
No
Sir Did you have software of TP.ATM60.PB816 (N) 1366×768??
No
Please which one should i download, i am finding it difficult to watch netflix
no need to load firmware. your android version may be obsolete. so change the mainboard for the latest version
BHAI tp.atm30.pb818 KO ANDROID VERSION 5.1 SE ANDROID VERSION 10 ME KESAY KAR SAKTEY HAI
No
Hello sir is software k maine 1st 5 part download kiye thay
Bt pandrive se nahi ho paya
Kya ye USB BURNING TOOL se hoga
Pls suggest me how to solve this problme
https://www.kazmielecom.tech/how-to-load-firmware/
Hi Software TP.ATM30.PB818 ka software chiye download nahi hora
Slam bhai tp atm 30 pb818 ye board 43 inch china led me kam kry ga? Agr kry ga tw kon c resolution me software krna pry ga….?
kam to kare ga magar behtar hoga koi new board laga len latest android version wala
hello sir,
serial no 2 part 1 1920×1080 is wrong pakistan shoftware is not correct. i open part 1 then its show 1366×768 resulation. please update the software.
regard
adil siddiqui
A.S Electronics
shop no 23, 27 china center 1 basemant yaseen street hall road lahore.
+923333203399
Thanks dear. Updated
