TP.ATM30.PB816 Firmware Free Download

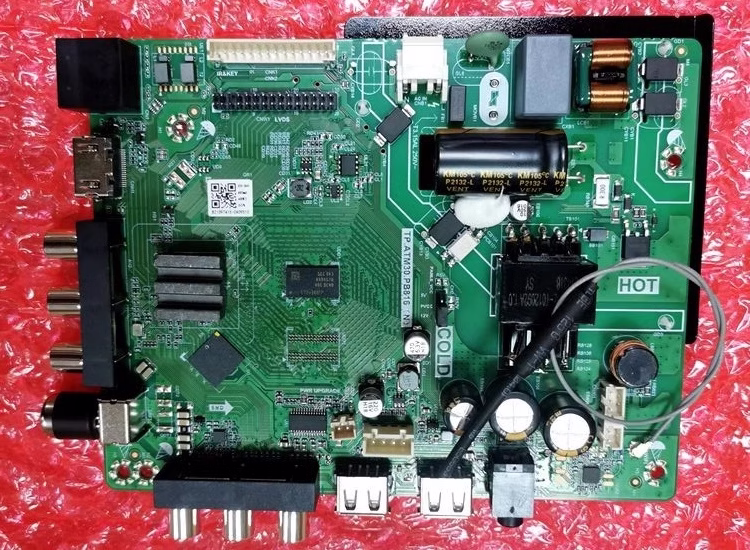

TP.ATM30.PB816 Smart LED TV Board

TP.ATM30.PB816 is a universal Android network driver smart LED TV board with a full-definition resolution of 1920×1080. TP_ATM30_PB816 has a powerful wifi system. Smart FHD TV With Android Platform 9.0 Pie and other smart features to entertain Full HD Wide Screen with better-to-work SMART. TP-ATM30-PB816 Smart Board has an RCA component interface, Dual USB Input interface Ports, an HDMI port, a Headphones jack, and an Ethernet connectivity interface (RJ45).

TP-ATM30-PB816 has a LAN/RJ45 Connector interface port also for the wired internet network. TP_ATM30_PB816 is a Combo Network Triple play board that has a Digital TV tuner built-in in it. The Graphics and Sound quality of the TP-ATM30-PB816 Android board is very good and the Response rate is very efficient. TP.ATM30.PB816 China’s smart network board can support up to 49″ LED Panels but for better results, it can be used in 28″ to 39″ panels.

Tp.atm30.Pb816

Technical Specifications:

Brand/Mark: Universal Android WIFI Network Drive Smart Board

Main Board: TP.ATM30.PB816 (N)

Main Chipset: aml920

Operating System: Android 9

CPU: A53

GPU: Mali-450

CPU: A53

GPU: Mali-450

CPU Frequency: 1.2GHz

GPU Frequency: 432MHz

RAM: 512 Mb

ROM: 4Gb

Backlight:  30-84V 480MA

Backlight Power: 25 Watt

Resolution: up to 1920×1080

Screen Size supported: 28 to 39 Inch

Audio Output power: 2x8W

Input Voltage: 200-240V AC

Firmware: allupgrade_aml920_android9_4G_512M_multi_63.img

Firmware Type: USB Bootable Firmware

Tp.atm30.Pb816

Note: The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

TP.ATM30.PB816 firmware file for free download:

Kazmi-Elecom

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
