TCL LED32D2930 LED TV
TCL LED32D2930 is a 32-inch 81cm Smart High Definition LED TV with a maximum supported resolution of 1366×768. It is a direct-backlight LED TV with great features. Its sound output is 12-watt RMS Dolby Digital Plus. It has a digital TV tuner (DVB-T2, DVB-C, DVB-S2) and an analog TV tuner (NTSC, PAL, SECAM). Its refresh rate is 60Hz.
TCL LED32D2930 has multiple input-output interfaces for user connectivity, such as the Number of HDMI connections: 2, the Number of USB ports: 1, PC input (VGA) Certified, and Other connections: IEC75 antenna, Common Interface Plus (CI+), WiFi Direct, Ethernet LAN: RJ-45 Digital audio output: (optical) PC-in: VGA + audio L/R-in Headphone output and Service connection.
General Features & Specifications:
Brand: TCL
Model: LED32D2930

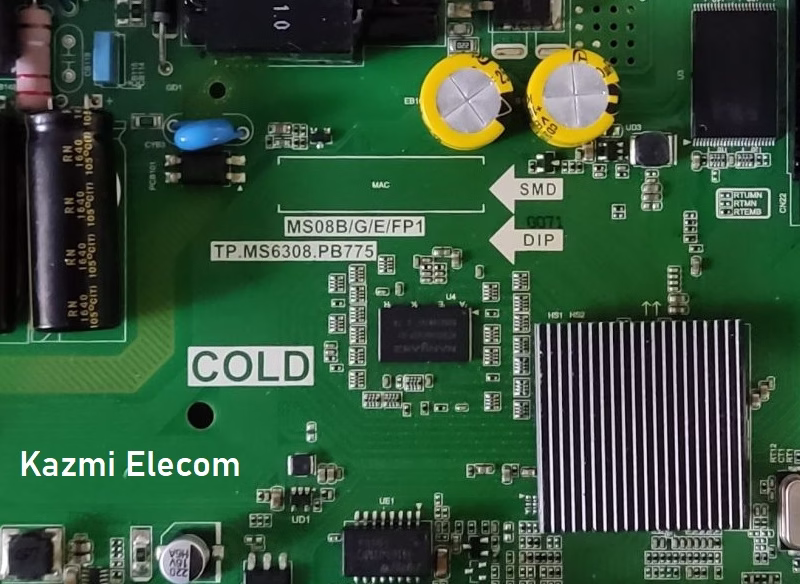

Main Board: TP.MS6308.PB775
Chassis: MS08B/G/E/FP1
Panel: ST3151AO5-8-CX-3
Display Format: HD 720P WXGA
Screen Type: LED
Screen Resolution: 1366×768
Features Format: Smart
OS Version: NA
Chipset: MSD6308RTEMB-8-002A
Processor: Dual-Core
Graphic Processor: Dual-core
RAM Capacity: 512MB DDR3
Storage Memory: MT29F4G08ABADA
No of HDMI Ports: 2
No of USB Ports: 1
Wi-Fi Type: Wi-Fi
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
Speaker Output: 12W
Tuner: Digital TV (DVB-T2); Cable TV (DVB-C)
Power Requirement: AC 110 – 240 V, 50/60 Hz
Power Consumption: 65 W
Firmware Type: NAND Backup
Note: The following firmware is a NAND backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
TCL LED32D2930 Firmware for free download:
