TCL 40-MS08B1-MAD2LG Software Free Download

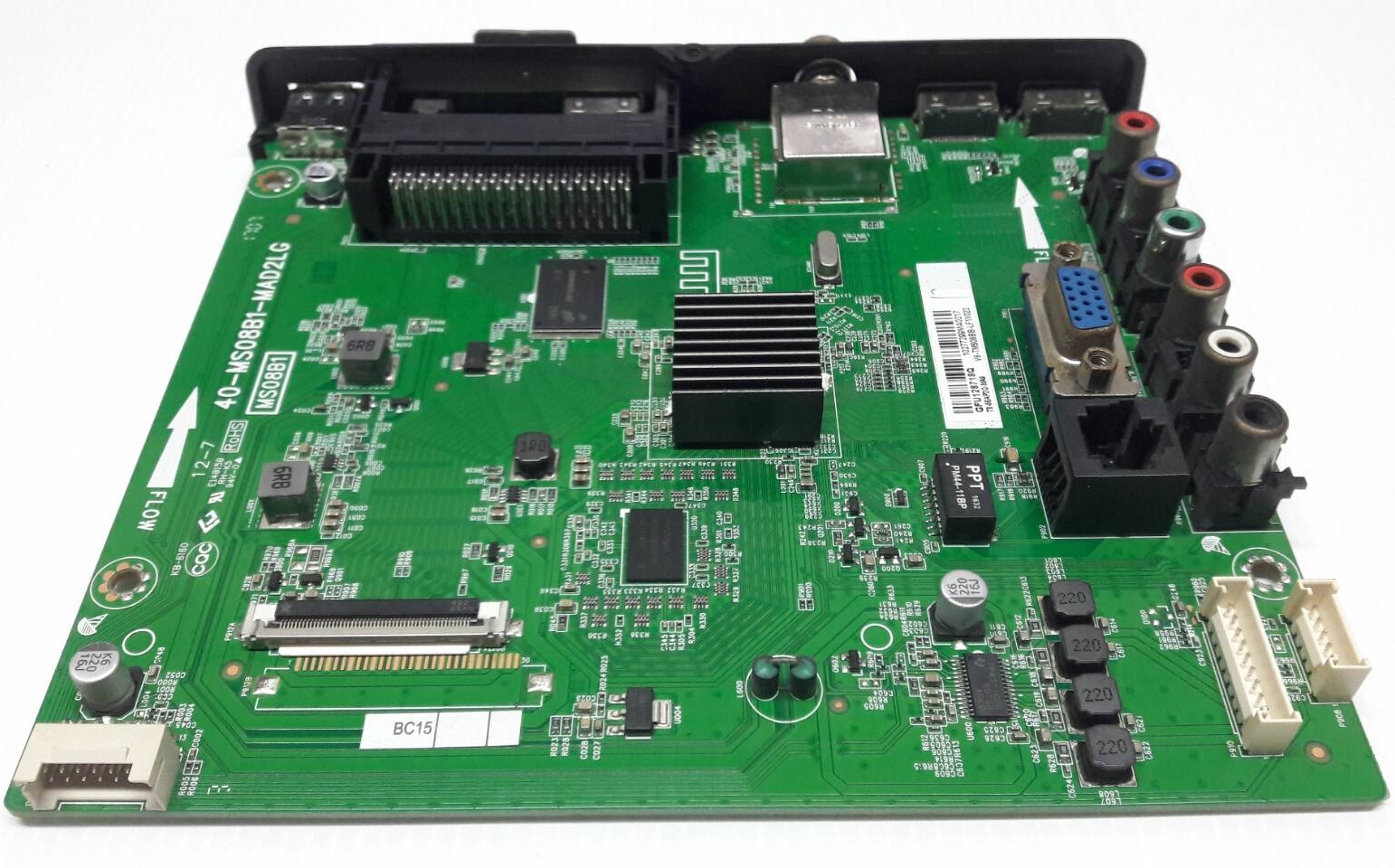

TCL 40-MS08B1-MAD2LG Main-Board

TCL 40-MS08B1-MAD2LG board is used in many TCL brand models. 40-MS08B1-MAD2LG has smart features with NAND flash but not the Android platform. It is a Full HD mainboard with a resolution of 1920×1080. It has power full stereo audio output of 16 watts.  40-MS08B1-MAD2LG has multiple connectivity ports like HDMI, AV, USB, VGA, and RJ45 for Ethernet connectivity. It can support a WiFi USB dongle for wireless connectivity. This main board is used in several models of TCL which some models are listed below:

• LED49D2930
• LED55D2900
• LED55D2930
• LED55D2940
• LED49S3820
• LED55S3830
• L49D2920

General Specifications:

Make: TCL

Board Model: MS08B1

Main Board: 40-MS08B1-MAD2LG

OS: Linux

CPU:

Memory: MT29F4G08ABADAWP

Resolution: 1920×1080

Multi-Languages: Yes

Power Consumption: W

Audio Output: 2x8W stereo

Software Version: V8-TMS08BB-LF1V023 OR V8-TMS08BB-LF1Vxxx

Firmware File: MS08BBupgrade.bin

Firmware Type: USB Upgradeable Firmware, Nand Memory Backup Dump

Note: The following given Software/firmware is USB upgradeable and Nand Memory Backup Dump File. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the main board and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

How to Load Firmware:

Transfer the MS08BBupgrade.bin file to FAT32 empty USB disk and follow the steps:

1). Turn off the TV.
2). Insert the USB disk into the USB 2.0 connector on the TV
3). Remove the plug from the outlet.
4). Hold the “POWER” button on the TV.
5). Insert the plug into a power outlet.
6). The update should start automatically.
Note: Do Not Turn Off the Power during the Upgrade Process.

TCL 40-MS08B1-MAD2LG  firmware  free download:

• 40-MS08B1-MAD2LG-Firmware-USB
• 40-MS08B1-MAD2LG-Backup-Dump
