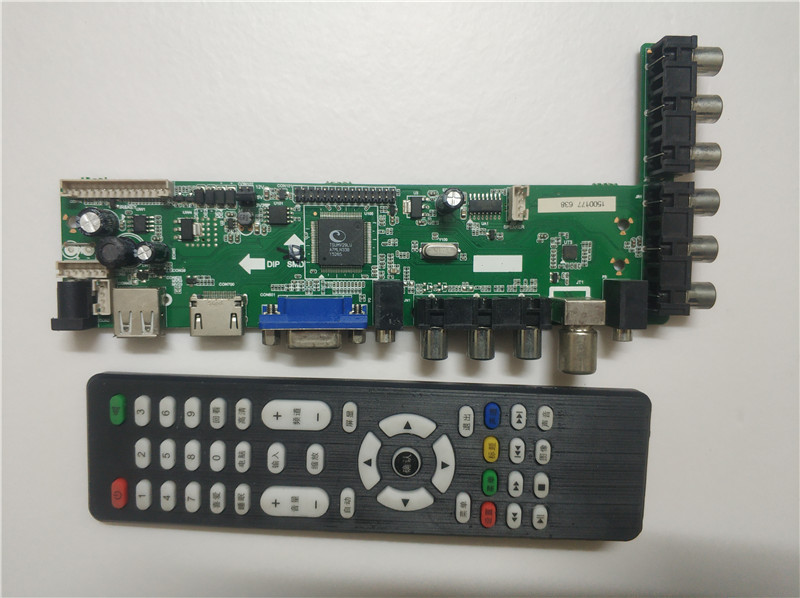

T59B_V5.1-8 Universal Board
T59B-V1.5 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support more than 26-inch LCD panels which resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software upgrades as well. Its HDMI port support 1.4 and its HDCP support 1.1. 59B V1.5-8 is compatible with 10-40 inch screens. T59B_V1.5-8 is widescreen supported and also has a multi-language option. T59B-V1.5-8 and T59B-V1.5 have the special feature of Multiple AV ports.
T59B_V1.5-8 firmware files all resolution is given below for the help of technicians.
General Specifications:
Model: T59B_V5.1-8
Main Chipset: TSUMV59XU, TSUMV29LU
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Firmware Name: VST59XX.bin
Firmware Type: USB Upgrade and Backup Dump
Flash Size V29: 25Q80 (1 Mb)
Flash Size V59: 25Q32 (4 Mb)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Plug in the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the power and Wait even IR indicator led stops flashing
- Done. Unplug the U-disk (It will take max 1 min to upgrade firmware)
Factory Service Mode:
Input/Source+308
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
T59B-V5.1-8 Collection Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T59B-V5.1-8_1024x768_Firmware_USB | Download |
| 2 | T59B-V5.1-8_1280x1024_Dump | Download |
| 3 | T59B-V5.1-8_1280x1024_LED-20A1_Dump | Download |
| 4 | T59B-V5.1-8_1680x1050_Multi Logo_Dump | Download |
| 5 | T59B-V5.1-8_1920x1080_Multi Logo_Dump | Download |
| 6 | T59B-V5.1-8_1920x1080_Shinko_Dump | Download |
| 7 | T59B-V5.1-8_MARKSON NKA-1701_Dump | Download |
| 8 | T59B-V5.1-8_1366x768_LG_Dump.rar | Download |
