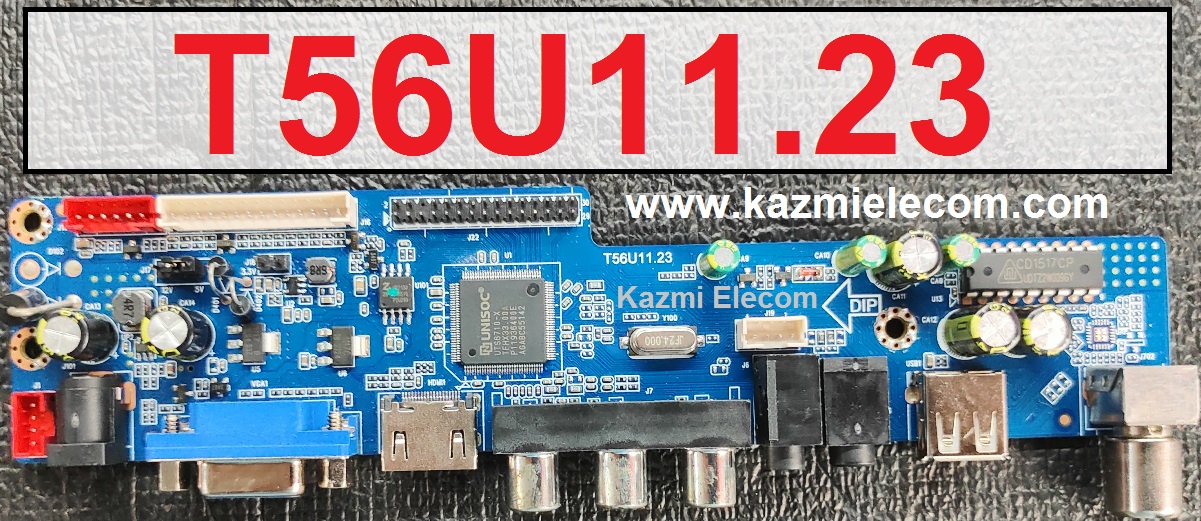

T56U11.23 is a universal jumper board with multi-remote and resolution software.

Basic Info:

Model No. T56U11.23

Main Chipset: UTS6710-X

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Tuner: Yes

Sound: CD1517CP

SPI Memory: 25Q32 (4mb)

Multi Resolution Codes

General Specifications:

TV System: Optional

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Games: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

1. Copy the Required Firmware/software into the FAT32 USB Disk
2. Plugin the U disk into the Mainboard USB port of the LCD/LED TV
3. Switch ON the power and Wait until even the IR indicator led stops flashing
4. Done. Unplug the U-disk (It will take a max half min to upgrade firmware)

Factory Service Mode:

Source/Input+208

Multi-Resolution Code:

• INPUT/SOURCE 031187 FOR 1920X1080
• INPUT/SOURCE 031181 FOR 1366X768
• INPUT/SOURCE 031183 FOR 1280X1024
• INPUT/SOURCE 031184 FOR 1440X900
• INPUT/SOURCE 031185 FOR 1600X900
• INPUT/SOURCE 031186 FOR 1680X1050
• INPUT/SOURCE 031182 FOR 1024X768

T56U11.23 Software Free Download:

T56U11_23_Multi-Resolution_Dump
