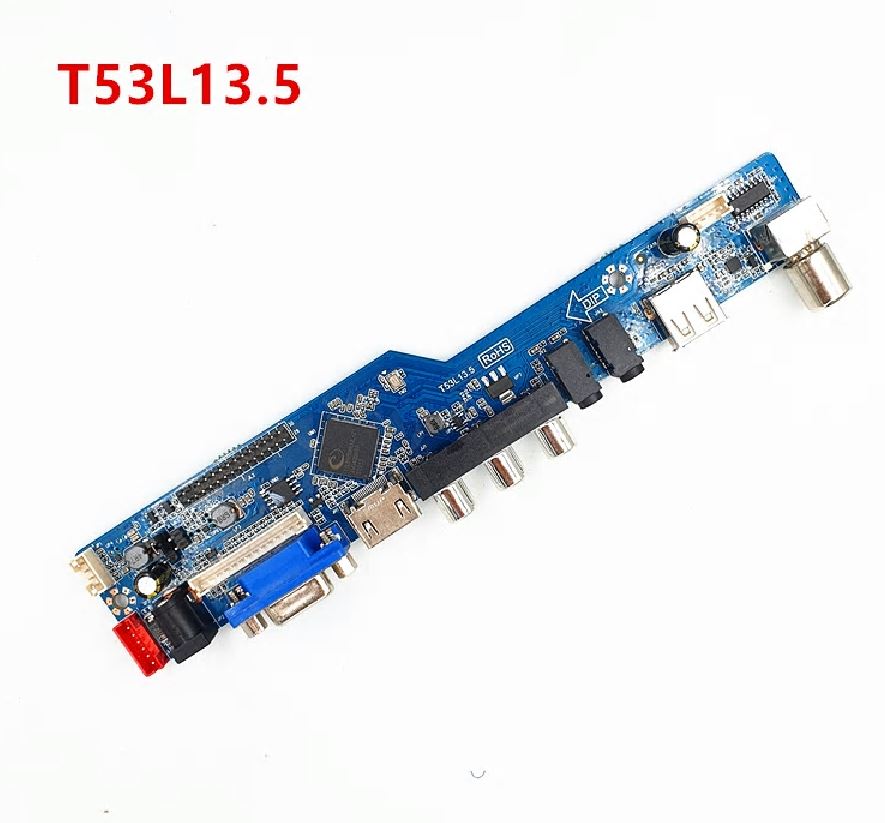

T53L13.5 Universal TV Board
Basic Info:
Model No. T53L13.5
Main Chipset: TSUMV53RUUL-Z1
Tuner: R842
Display Format: up to 1920×1200
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, WMA, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, Jpeg, BMP, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Plugin the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the power and Wait until even IR indicator led stops flashing
- Done. Unplug the U-disk (It will take max 1 min to upgrade firmware)
Factory Service Mode:
Source/Input+208, Menu 1147
Firmware Name: VS_T53RUL_32M.bin
For Multi-Resolution Software:
Default Resolution: 1920×1080
1920×1080 Source/Input+20080
1366×768 Source/Input+20081
1024×768 Source/Input+20082
1280×1024 Source/Input+20083
1440×900 Source/Input+20084
1600×900 Source/Input+20085
1680×1050 Source/Input+20086
Note: Following T53L13.5 firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
T53L13.5 Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T53L13.5_1024X768_CHINA | Download |
| 2 | T53L13.5_1280X768_CHINA | Download |
| 3 | T53L13.5_1280X1024_CHINA | Download |
| 4 | T53L13.5_1366X768_CHINA | Download |
| 5 | T53L13.5_1440X900_CHINA | Download |
| 6 | T53L13.5_1600X900_CHINA | Download |
| 7 | T53L13.5_1600X1200_CHINA | Download |
| 8 | T53L13.5_1680X1050_CHINA | Download |
| 9 | T53L13.5_1920X1080_CHINA | Download |
| 10 | T53L13.5_1920X1200_CHINA | Download |
| 11 | T53L13.5_640X480_LG | Download |
| 12 | T53L13.5_800X600_LG | Download |
| 13 | T53L13.5_1024X768_LG | Download |
| 14 | T53L13.5_1280X768_LG | Download |
| 15 | T53L13.5_1280X1024_LG | Download |
| 16 | T53L13.5_1366X768_LG | Download |
| 17 | T53L13.5_1400X1050_LG | Download |
| 18 | T53L13.5_1440X900_LG | Download |
| 19 | T53L13.5_1600X900_LG | Download |
| 20 | T53L13.5_1600X1200_LG | Download |
| 21 | T53L13.5_1680X1050_LG | Download |
| 22 | T53L13.5_1920X1080_LG | Download |
| 23 | T53L13.5_1920X1200_LG | Download |
| 24 | T53L13.5_640X480_SAMSUNG | Download |
| 25 | T53L13.5_800X600_SAMSUNG | Download |
| 26 | T53L13.5_1024X768_SAMSUNG | Download |
| 27 | T53L13.5_1280X768_SAMSUNG | Download |
| 28 | T53L13.5_1280X1024_SAMSUNG | Download |
| 29 | T53L13.5_1366X768_SAMSUNG | Download |
| 30 | T53L13.5_1400X1050_SAMSUNG | Download |
| 31 | T53L13.5_1440X900_SAMSUNG | Download |
| 32 | T53L13.5_1600X900_SAMSUNG | Download |
| 33 | T53L13.5_1600X1200_SAMSUNG | Download |
| 34 | T53L13.5_1680X1050_SAMSUNG | Download |
| 35 | T53L13.5_1920X1080_SAMSUNG | Download |
| 36 | T53L13.5_1920X1200_SAMSUNG | Download |
| 37 | T53L13.5_CLAA150XG_SAMSUNG | Download |
| 38 | T53L13.5_640X480_SONY | Download |
| 39 | T53L13.5_800X600_SONY | Download |
| 40 | T53L13.5_1024X768_SONY | Download |
| 41 | T53L13.5_1280X768_SONY | Download |
| 42 | T53L13.5_1280X1024_SONY | Download |
| 43 | T53L13.5_1366X768_SONY | Download |
| 44 | T53L13.5_1400X1050_SONY | Download |
| 45 | T53L13.5_1440X900_SONY | Download |
| 46 | T53L13.5_1600X900_SONY | Download |
| 47 | T53L13.5_1600X1200_SONY | Download |
| 48 | T53L13.5_1680X1050_SONY | Download |
| 49 | T53L13.5_1920X1080_SONY | Download |
| 50 | T53L13.5_1920X1200_SONY | Download |
| 51 | T53L13.5_CLAA150XG_SONY | Download |
| 52 | T53L13.5_FHD_MULTI | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
