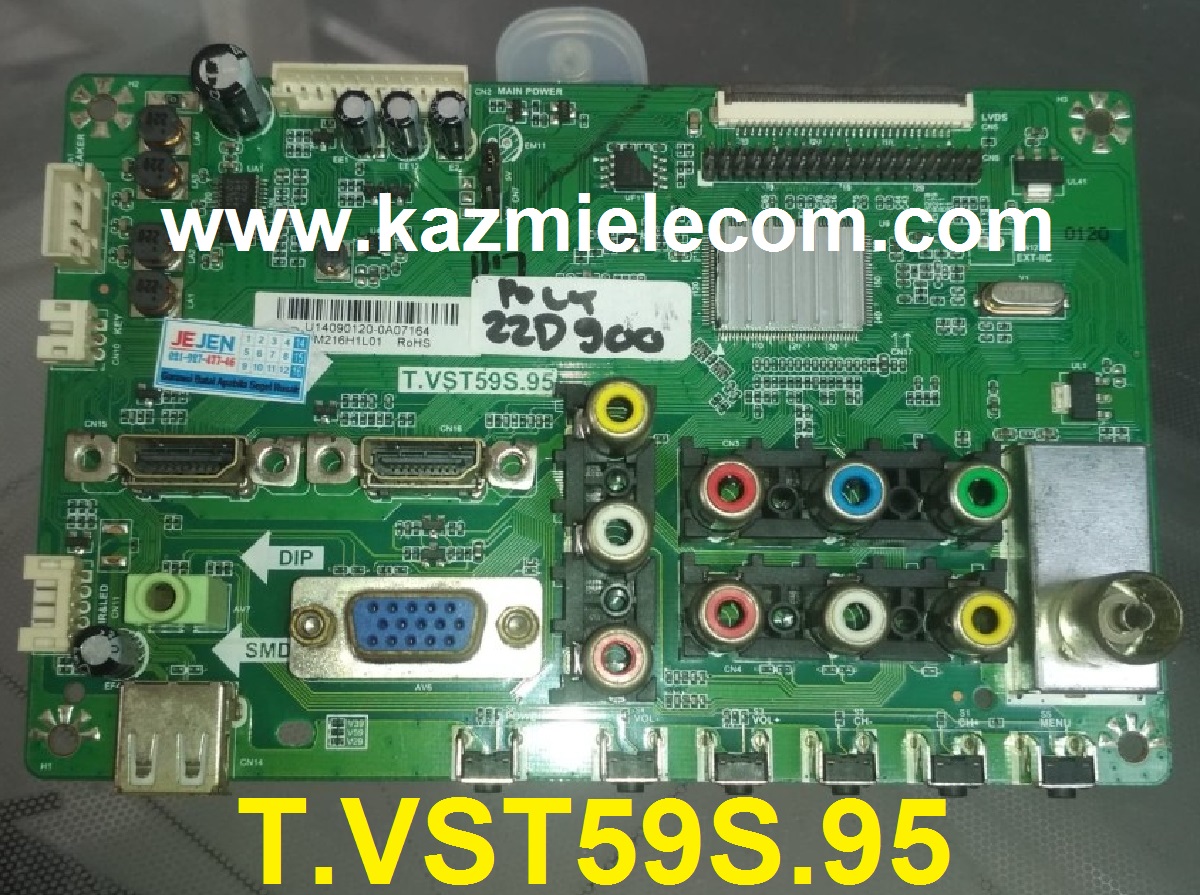

T.VST59S.95 LED TV Board
T.VST59S.95 is an analog TV control board, which is suitable for Asia-Pacific and middle-East markets. T_VST59S_95 is a single universal board without a power supply and an LED driver only a TV board that is the external power supply. T-VST59S-95 supports 18.5〞to 26〞LED backlight TFT panel screens. Its USB 2.0 interface can be used for multimedia playback and for a software update as well the HDMI supports 1.4, and the HDCP support 1.1. T.VST59S.95 software is given below for the technician’s support.
General Specifications:
Brand/Mark: China Universal
Model: T.VST59S.95
Main Chipset: TSUMV59S
OSD Language: English
Product: LED TV
Backlight: No
Panel Voltage: 5v, 12v
Board Power Input: 12v/24v
Resolution: Up to 1920×1080
Interface: Dual/Single LVDS Interface
Screen Supported: 18.5 to 26 inch
Audio Power Output: for 12v (2x8w 8ohm), for 24v (2x9w 8ohm)
Service Code: Menu
Note: The following given software/firmware is Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
T.VST59S.95 firmware free downloads:
For video tutorials, visit “Kazmi Elecom” my youtube channel.
The T.VST59S_95_1366x768_POLYTRON_DUMP it’s working!
Polytron is a TV brand in Indonesia & model number is PLD 24D810,
Thank’s in advance
the dump is confirmed with the polytron logo. mirror/panel setting not verified.
