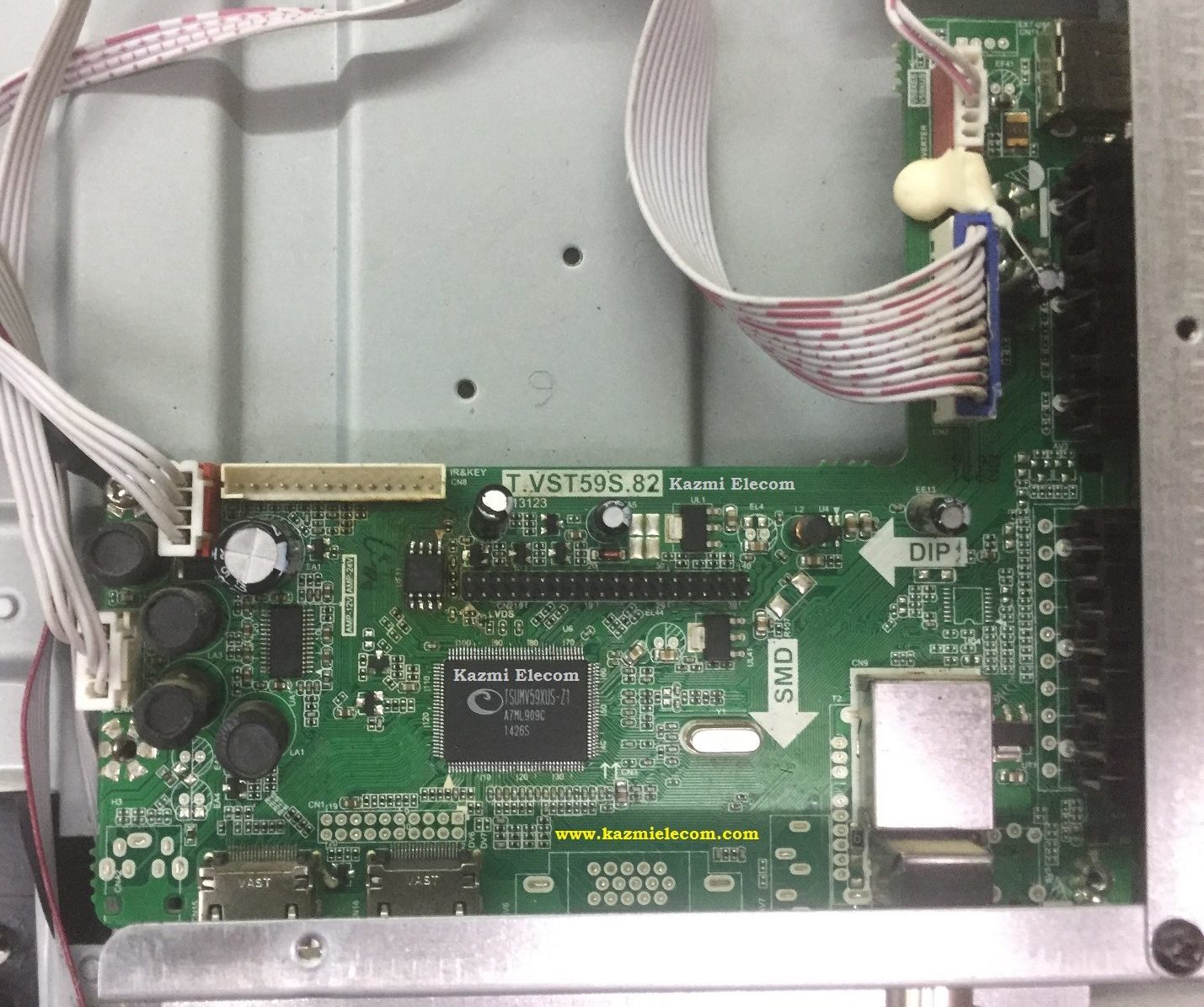

T.VST59S.82 LED TV Board
T.VST59S.82 is an analog TV control board, which is suitable for Asia-Pacific and middle-East markets. T_VST59S_82 is a single universal board without a power supply and an LED driver only a TV board that is the external power supply. T-VST59S-82 supports 26〞to 60〞LED backlight TFT panel screens. Its USB 2.0 interface can be used for multimedia playback and for a software update as well the HDMI supports 1.4, and the HDCP support 1.1. T.VST59S.82 software is given below for the technician’s support.
General Specifications:
Brand/Mark: China Universal
Model: T.VST59S.82

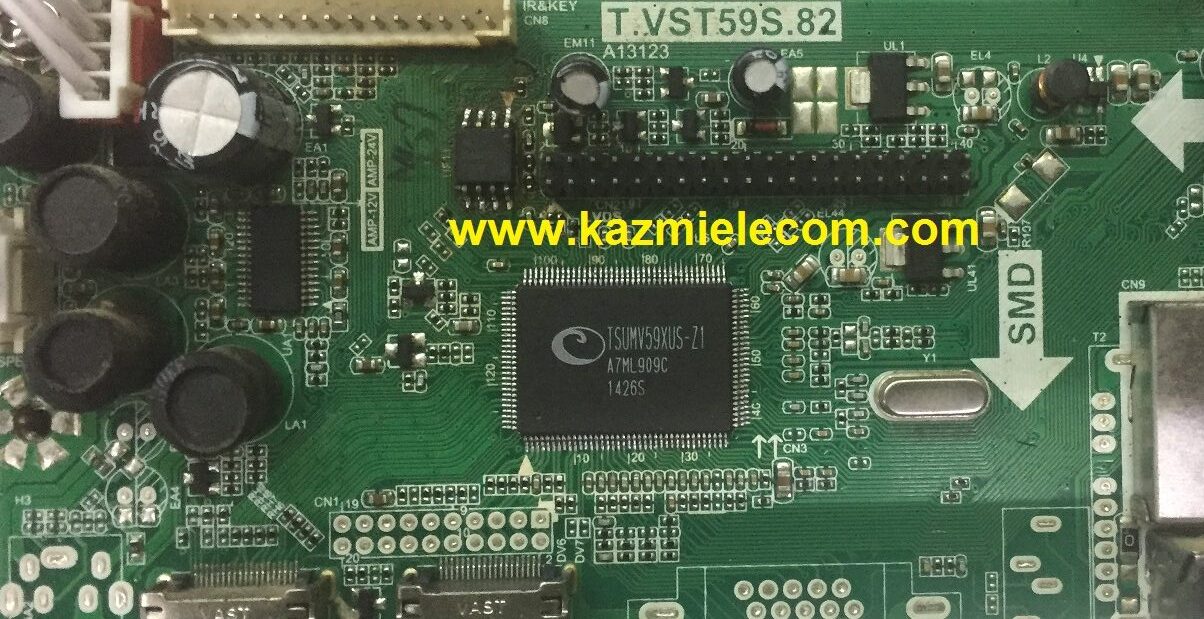

Main Chipset: TSUMV59XUS-Z1
OSD Language: Chinese, English
Product: LED TV
Backlight: No
Panel Voltage: 5v, 12v
Board Power Input: 12v/24v
Resolution: Up to 1920×1080
Interface: Dual/Single LVDS Interface
Screen Supported: 26 to 60 inch
Audio Power Output: for 12v (2x8w 8ohm), for 24v (2x9w 8ohm)
Service Code: Menu+1147
Note: The following given software/firmware is Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here are below all T.VST59S.82 firmware free downloads:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.VST59S.82_1366x768_Haier_Backup Dump | Download |
| 2 | T.VST59S.82_1366x768_Samsung_Backup Dump | Download |
| 3 | T.VST59S.82_1366x768_Sony_Backup Dump | Download |
