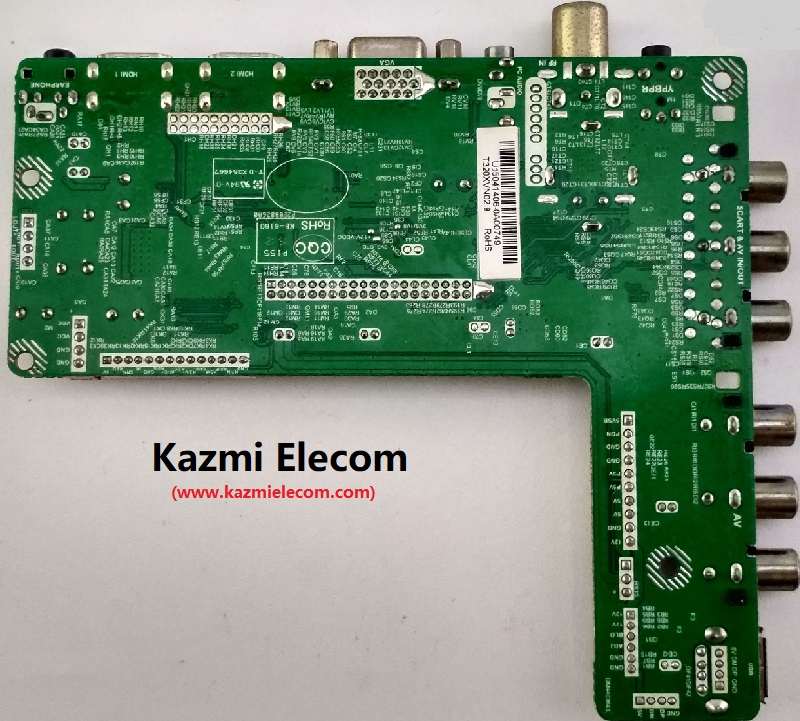

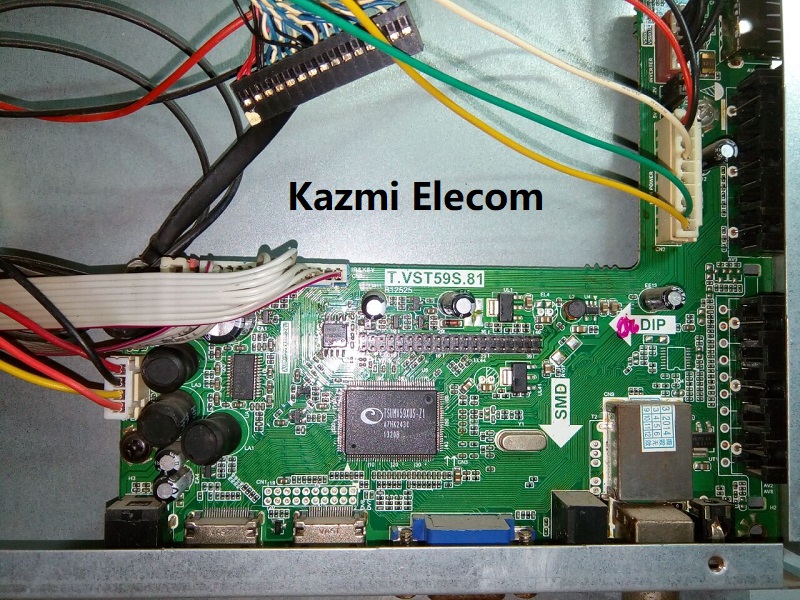

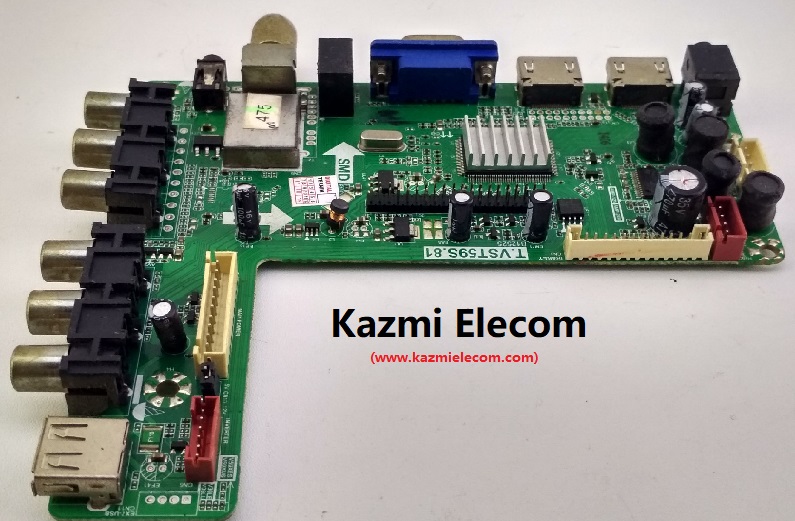

T.VST59S.81 LED TV Board
T.VST59S.81 is an analog TV control board, which is suitable for Asia-Pacific and Middle-East markets. T_VST59S_81 is a single universal board without a power supply and LED driver only a TV board that is the external power supply. T-VST59S-81 supports 26〞to 60〞LED backlight TFT panel screens. Its USB 2.0 interface can be used for multimedia playback and for a software update as well The HDMI supports 1.4, and the HDCP support 1.1.
T.VST59S.81 has dual HDMI input ports for connecting high-definition devices such as Blu-ray Media Players, Gaming Consoles, etc. It has a VGA interface for personal computers and Laptop connectivity to get display on a bigger screen.
General Specifications:
Brand/Mark: China Universal
Model: T.VST59S.81
Main Chipset: TSUMV59XUS-Z1
OSD Language: Chinese, English
Product: LED TV
Backlight: No
Panel Voltage: 5v, 12v
Board Power Input: 12v/24v
Resolution: Up to 1920×1080
Interface: Dual/Single LVDS Interface
Screen Supported: 26 to 60 inch
Audio Power Output: for 12v (2x8w 8ohm), for 24v (2x9w 8ohm)
Service Code: Menu+1147
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
T.VST59S.81 firmware free downloads:
Hello sir do you have firmware for t.vst59.96 main board? Thank you.
hallo sir do you have firware fot T.VST59S.82
email me clear board pictures. kazmielecom@gmail.com
halo Iam working in ksa I need your help
post on Forum page
Plz sir I am not find this TPV56U112
So suggest me
eranilcs.09@gmail.com
https://www.kazmielecom.tech/2018/09/23/vs-t56u11-2-software-free-download-all-resolution.html
Sir.. I had a 50 inch infocus full hd non android smart led tv…
I has T.VST59S.81 Motherboard .Few days back I got hdmi port not working and menu changing automatically and voice increases and decreases automatically… A technician told me to replace the board… But due to covid 19 .. I am unable to get the board… Can I replace the same board or any compatible one if any?… And tried downloading the firmware in the above links.. and the final rar file showing error and not opening.. pls help
you can fit any universal board android or simple with this screen. try with 7zip to extract
hallo sir,can you help me? pleas,,, i need firmware t.vst59s.81
link fixed
sir T.VST59S.81 software not download this link expair
all links working fine
