T.VST59S.32 Universal Board

T.VST59S.32 is a special universal jumper board with a multiple-user connectivity interface. It can support 15-55-inch screen panels. It has dual HDMI input ports, dual USB ports, a VGA interface for Personal Computer connectivity, and an RF tuner. RCA input jack is not available on this board. V59 chipset installed on it that can make the picture quality better. This is a non-combo board. DC 12-volt external power supply will be used to make it functional.

Basic Info:

Model No. T.VST59S.32 B13093

Main Chipset: TSUMV59

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Tuner: NA

Sound: NA

Bin Name: NA

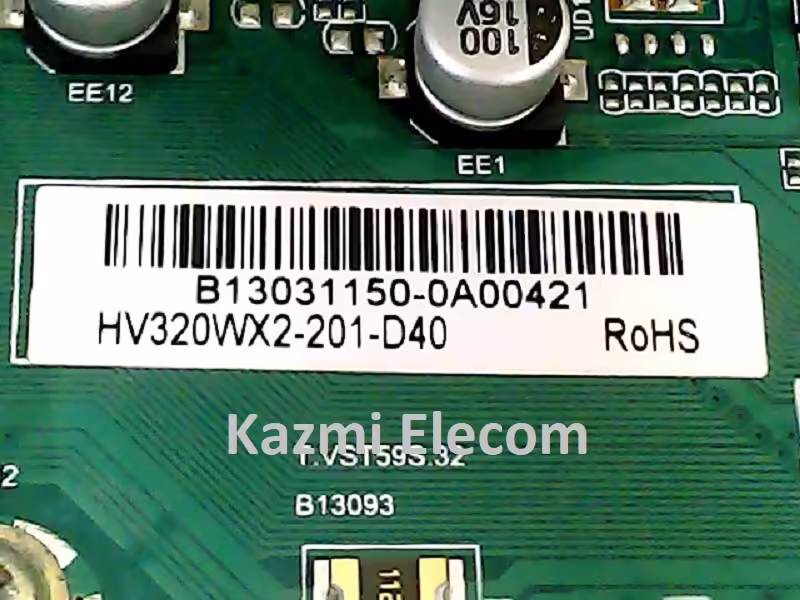

T.vst59S.32

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Factory Service Mode:

Menu+1147

Caution:

All the pictures and specification details related to T.VST59S.32 in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.

How to Load USB Firmware:

  1. Copy the Required Firmware/software into FAT32 USB Disk
  2. Plugin the U disk into the Mainboard USB port of the LCD/LED TV
  3. Switch ON the power and Wait until even the IR indicator led stops flashing
  4. Done. Unplug the U-disk (It will take a max half min to upgrade firmware)

Pros:

There are many advantages to installing the given T.VST59S.32 USB software or backup dump file. A few benefits are described below:

  • The dead board can be recovered and operational by loading the given software backup file
  • Remote and Logo may change at your own choice to satisfy the customer
  • Money saving instead of changing the mainboard
  • Time-saving instead of arranging a new board
  • Customer satisfaction to do an urgent job
  • Skill and confidence improvement

Cons:

There may be some disadvantages to installing the given T.VST59S.32 USB software or backup dump file. But it depends on the technician or user as per his understandings. A few drawbacks are described below:

  • The working board may go to the standby position
  • Remote Control may not work and the Logo may change by writing the given software
  • Panel screen parameters may be changed

T.VST59S.32 Version Upgrade:

Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software malfunctions due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.

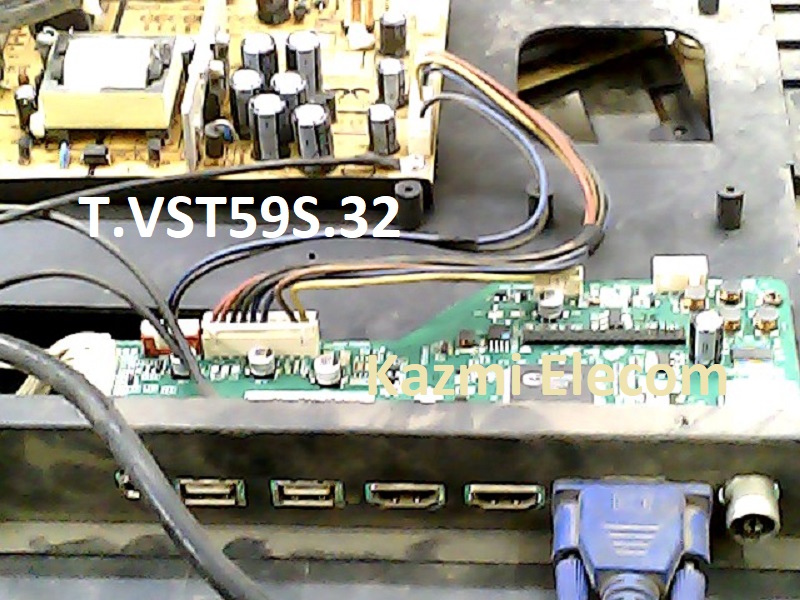

T.vst59S.32

T.VST59S.32 Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.

Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download:

Download your required resolution firmware/software and then extract it, you will get the folder. Now copy the files to USB or write flash by a programmer. For more Details about the download process watch the video Click Here

T.VST59S.32 Firmware All resolutions Free Download:
