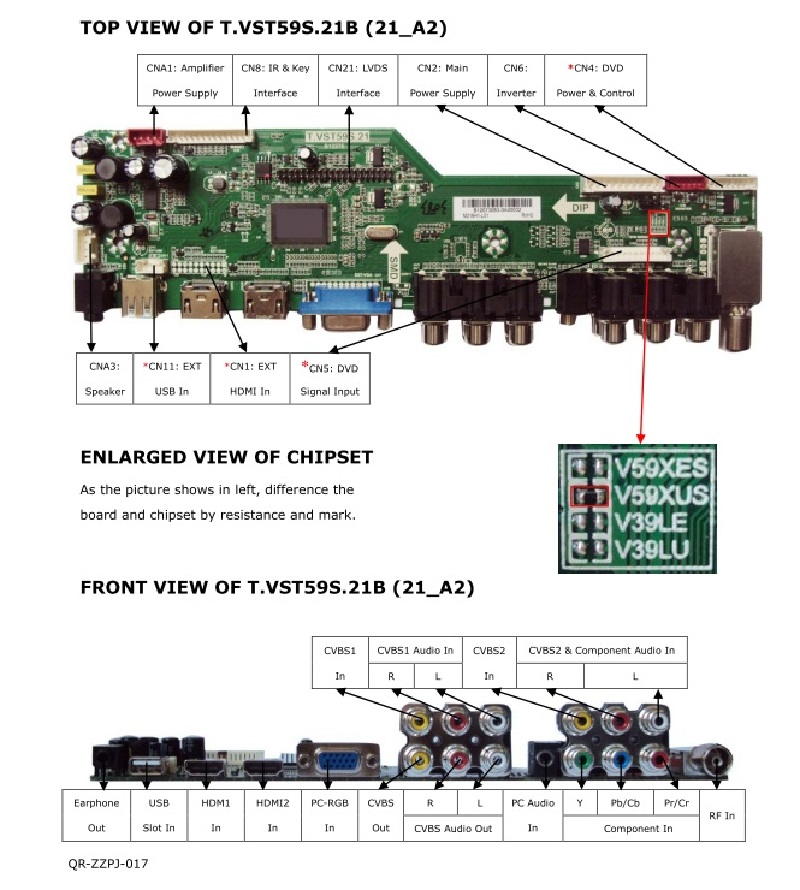

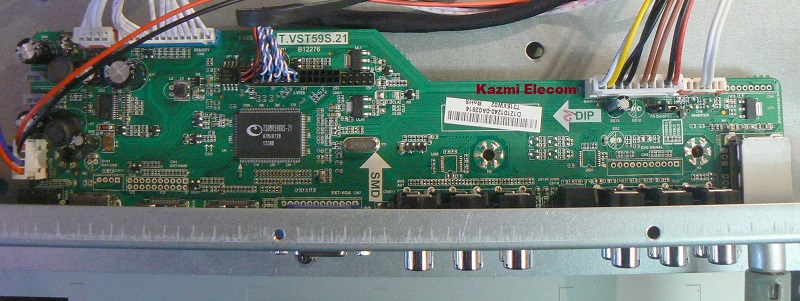

T.VST59S.21 Universal TV Control Board
T.VST59S.21 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support more than 26-inch LCD panels which resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software upgrades as well. Its HDMI port support 1.4 and its HDCP support 1.1.
General Specifications:
Model: T.VST59S.21
Main Chipset: V59XUS
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Plug in the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the power and Wait even IR indicator led stops flashing
- Done. Unplug the Udisk (It will take max 1 min to upgrade firmware)
Factory Service Mode:
Menu+1147
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
T.VST59S.21 Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.VST59S.21_1366x768_General_USB | Download |
| 2 | T.VST59S.21_1366x768_Panel_USB | Download |
| 3 | T.VST59S.21_1920x1080_General_USB | Download |
| 4 | T.VST59S.21_1920x1080_Panel_USB | Download |
| 5 | T.VST59S.21_100HZ_USB | Download |
| 6 | T.VST59S.21_2AV_CH_M90_KA03_General_Normal_All Resolution_USB | Download |
| 7 | T.VST59S.21_2AV_CH_M90_KA03_Panel_Normel_All Resolution_USB | Download |
| 8 | T.VST59S.21_M90_KA03_3D_60HZ_General_All Resolution_USB | Download |
| 9 | T.VST59S.21_M90_KA03_3D_60HZ_Panel_All Resolution_USB | Download |
| 10 | T.VST59S.21_M90_KA03_General_MIRROR_All Resolution_USB | Download |
| 11 | T.VST59S.21_M90_KA03_Panel_MIRROR_All Resolution_USB | Download |
| 12 | T.VST59S.21_M90_KA03_SBOOT_D2S_General_All Resolution_USB | Download |
| 13 | T.VST59S.21_M90_KA03_SBOOT_D2S_MIRROR_General_All Resolution_USB | Download |
| 14 | T.VST59S.21_M90_KA03_SBOOT_D2S_MIRROR_Panel_All Resolution_USB | Download |
| 15 | T.VST59S.21_M90_KA03_SBOOT_D2S_Panel_All Resolution_USB | Download |
