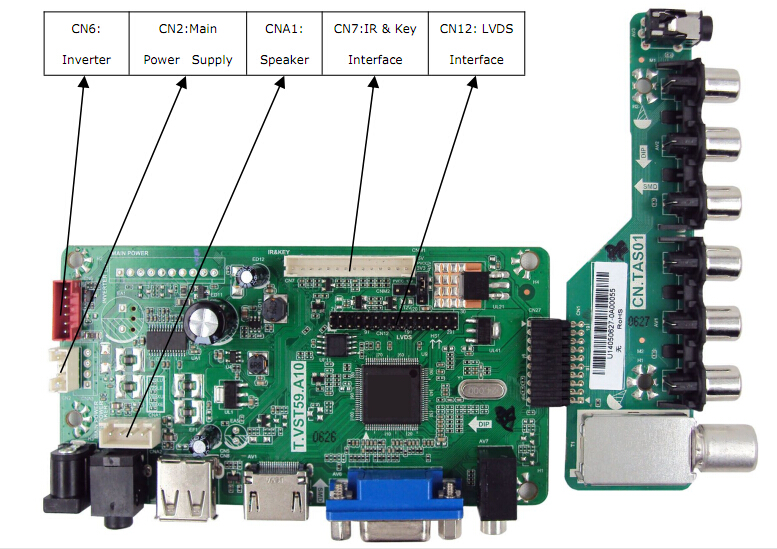

T.VST59.A10 LCD / LED Mainboard
The analog High Definition V59 Dual AV universal LCD/LED TV driver motherboard known as T.VST59.A10 is intended for markets in Asia and the Middle East. T_VST59_A10 has generally required interface ports like AV, PC VGA, HDMI, Earphone, RF, and USB interface. The panel monitors with a resolution of 1920 x 1080 can be used with the T-VST59-A10. The picture and sound quality are excellent.
This board is mostly found in SHARP LCD TVs, but it can also be found in other brands. Its USB point of interaction can be utilized for programming overhauls and sight and sound playback. T VST59 A10 has a 30-pin LVDS connector. Panel sizes ranging from 24 to 55 inches are supported. In the event that you are confronting any issue during firmware establishment, visit and read here first.T.VST59.A10 software files are shared in this post.
General Specifications:
Model Name: T.VST59.A10 (High Definition V59 Dual AV LCD Driver Board)
Main Chipset: TSUMV59XU-Z1
Mark: Leroy
Supported Resolution : 1920×1200
Input: PC, HDMI, AV, RF, USB
Operating voltage: 12 V single
Interface screen: lvds / individual 6 / single 8 / double 6 / double 8
Panel Volt : 3.3 v / 5 v / 12 V (Jumper Setting)
Screen Compatibility : 15 to 64 inch
Factory Service Mode:
Menu+1147
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
Here are below some T.VST59.A10 Firmware for free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.VST59.A10_1366x768_General | Download |
| 2 | T.VST59.A10_1920x1080_General | Download |
| 3 | T.VST59.A10_1920x1080_Samsung_Seedha | Download |
| 4 | T.VST59.A10_1920x1080_Sony_Mirror-Ulta | Download |
| 5 | T.VST59.A10_1920x1200_General | Download |
| 6 | T.VST59.A10_Panel_Mix | Download |
| 7 | T.VST59.A10_Sony_24_KDL24X900A | Download |
| 8 | T.VST59.A10_Samsung_24_24H9000AN | Download |
| 9 | T.VST59.A10_1920X1080_Sharp_USB | Download |
