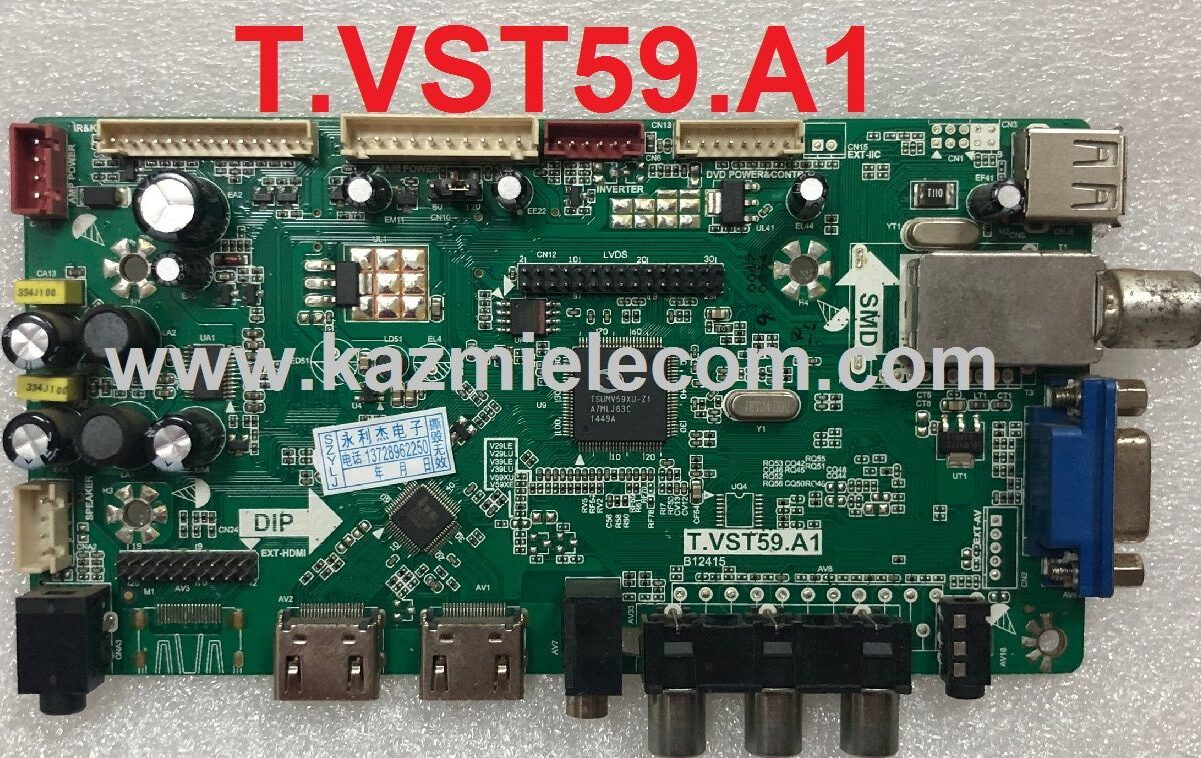

T.VST59.A1 LED TV BOARD
T.VST59.A1 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support more than 26-inch LCD panels which a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software upgrades as well. Its multiple HDMI ports support 1.4 and its HDCP support 1.1. T_VST59_A1 is compatible with 26-60 inch screens. T.VST59.A1 is widescreen supported and also has a multi-language option. T.VST59.A1 software collection is given below for free download.
General Specifications:
Model: T.VST59.A1
Main Chipset: TSUMV59XU-Z1/TSUMV59XE
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohms)
Panel Voltage: +5V/+12V DC
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W
Maximum Current for USB: 500mA
Factory Service Mode:
Menu+1147
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
T.VST59.A1 Firmware Collection Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.VST59.A1_1366x768_AKAI_DUMP | Download |
| 2 | T.VST59.A1_1366x768_DIGITAL_DUMP | Download |
| 3 | T.VST59.A1_1366x768_ERISSON_DUMP | Download |
| 4 | T.VST59.A1_1920x1080_BRAVIS_DUMP | Download |
| 5 | T.VST59.A1_1920x1080_DANSAT_DUMP | Download |
| 6 | T.VST59.A1_1920x1080_DIGITAL_DUMP | Download |
| 7 | T.VST59.A1_1920x1080_ERISSON_DUMP | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
