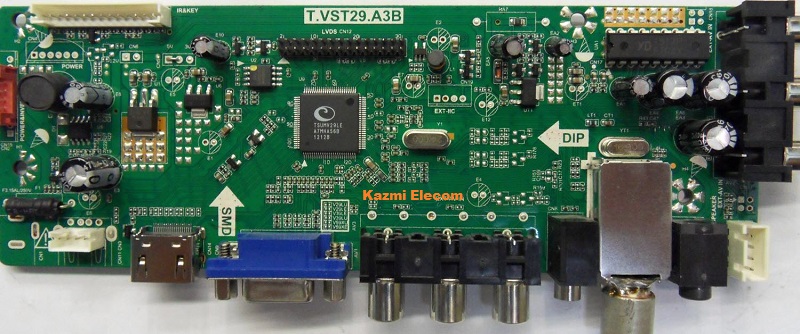

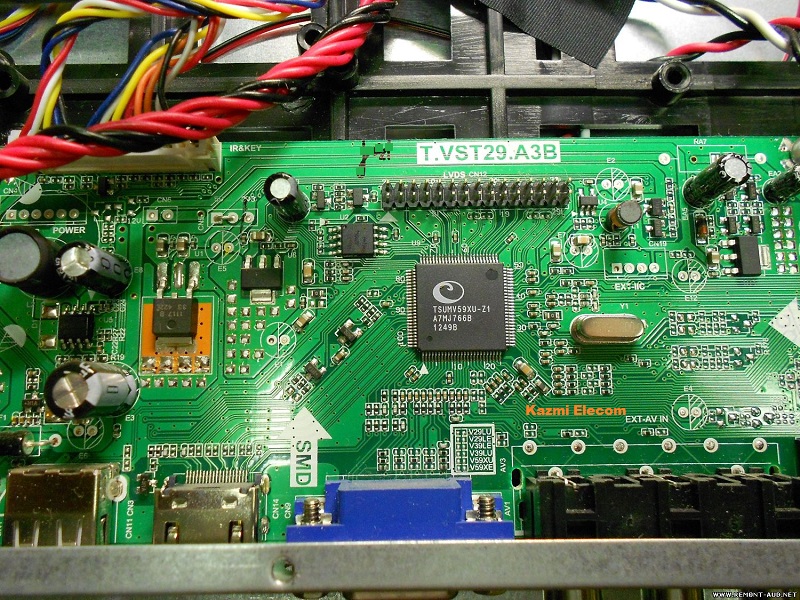

T.VST29.A3B Universal LCD/LED Controller Board
T.VST29.A3B software files are shared in this post.
Basic Info:
Model No. T.VST29.A3B (Dual Audio Video)
Main Chipset: TSUMV29, TSUMV39, TSUMV59
Trademark: Leroy
Display Format: up to 1920×1200
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (*. Bin file) to the U disk.
Step 3: Connect the U disk with Mainboard
Step 4: Connect the Keypad and IR also
Step 5: Connect the power supply, check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
Factory Service Mode:
Menu+1147
Note: The following given firmware is USB Boot/dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware and then extract you will get the folder. Now load the file by the programmer. For More Detail about the download, process watch the video Click Here
T.VST29.A3B Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.VST29.A3B_V59_General_1024x768 | Download |
| 2 | T.VST29.A3B_V59_General_1366x768 | Download |
| 3 | T.VST29.A3B_V59_General_1600x900 | Download |
| 4 | T.VST29.A3B_V59_General_1680x1050 | Download |
| 5 | T.VST29.A3B_V59_General_1920x1080 | Download |
| 6 | T.VST29.A3B_V59_General_1920x1200 | Download |
| 7 | T.VST29.A3B_V59_PANEL_1024x600 | Download |
| 8 | T.VST29.A3B_V59_PANEL_1024x768 | Download |
| 9 | T.VST29.A3B_V59_PANEL_1280x768 | Download |
| 10 | T.VST29.A3B_V59_PANEL_1280x800 | Download |
| 11 | T.VST29.A3B_V59_PANEL_1280x854 | Download |
| 12 | T.VST29.A3B_V59_PANEL_1280x1024 | Download |
| 13 | T.VST29.A3B_V59_PANEL_1366x768 | Download |
| 14 | T.VST29.A3B_V59_PANEL_1400x1050 | Download |
| 15 | T.VST29.A3B_V59_PANEL_1440x900 | Download |
| 16 | T.VST29.A3B_V59_PANEL_1600x900 | Download |
| 17 | T.VST29.A3B_V59_PANEL_1600x1200 | Download |
| 18 | T.VST29.A3B_V59_PANEL_1680x1050 | Download |
| 19 | T.VST29.A3B_V59_PANEL_1920x1080 | Download |
| 20 | T.VST29.A3B_V59_PANEL_1920x1200 | Download |
| 21 | T.VST29.A3B_V59_PANEL_Mix | Download |
| 22 | T.VST29.A3B_Digital DLE-2227 | Download |
| 23 | T.VST29.A3B_GOSONIC GLED-3624 | Download |
| 24 | T.VST29.A3B_Haier LE19ZA1_TSUMV39LU | Download |
| 25 | T.VST29.A3B_HYUNDAI H-LED24V25 | Download |
| 26 | T.VST29.A3B_IZUMI TLE19H310B | Download |
| 27 | T.VST29.A3B_LLOYD-24ND | Download |
| 28 | T.VST29.A3B_MV29P_PNL_V216B1_1366x768 | Download |
T.R67.03.V3 Multi-Resolution and Multi Remote Universal LCD/LED TV Jumper Board Features
Sir download nehi ho raha hai…please help me
https://youtu.be/o2-CQtpegVE
Bhai usb progiramar k drivar instal karne ka tareka batao pc main our window verson bhi batan thax
USB programmer auto hota hy Windows 7 aur later me
Sir i need softwares of Card Model CV59L.L
ok i will try to upload soon
I need firmware vst 596 . Ver 1.3
sir g good morning.mujhko t.vst29.a3b ka 1280#1080 ka software download karnatha.but link is protected bol raha hai.plz sir kindly help me sir g.
Good Site
Hi is there a certain type of flash drive I need to use ? Currently it’s have a 16gig verbatim flash drive. But software don’t want to load. Formatted in FAT32 and follow all steps. TV Is currently on burn screen. So I Wana do software to fix issue. On my sinotec 24″ tv
try some other resolution first then load required resolution. the file must be usb boot otherwise load with the programmer
tvst 29.a3b 1280 1024 up-4ever se download nahi ho raha
link working fine. ap website k homepage pe video dekh len
TP.V56.PB832 FIRMWARE REQUIRED FOR ALL RESOLUTION WITH CHINA REMOTE
Dear sir i have need T,VST.29.A3B LVDS Voltes Deattales in this board not sowing pin deattales
all universal boards have the same lvds connection
T.vst29.a3b software chaiye
download kar len
Sir. 1366*768 download nehi hoa raha hei..kiya karu ab.. Mujhe bohot jaruri hai..
all links replaced
I need 1366*768 firmware this curcit.. Plz help me.. I cannot download this
Now you can download
Thank u sir… I got it.. I need once more softwar..
Hi!
I have Samsung LTN150XBL-03 1024*768 LVDS panel.
Which firmware could I use for it?
Hi!
I have Samsung LTN150XBL-03 1024*768 LVDS panel.
Which firmware could I use for it?
