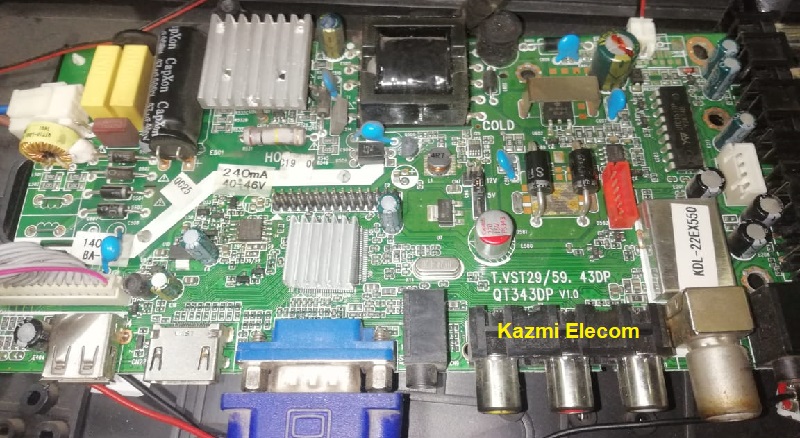

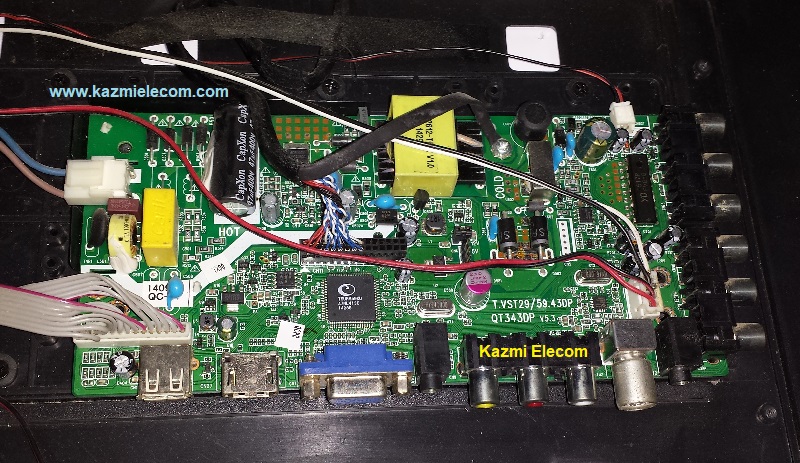

T.VST29/59.43DP QT343DP LCD/LED Board
T.VST29/59.43DP QT343DP is an analog LCD/LED Controller driver board that is suitable for the Asia Pacific and the Middle East countries. T.VST29/59.43DP QT343DP is a combo board with different models according to the backlight driver but has the same chipset.
Basic Info:
Model No. T.VST29/59.43DP QT343DP (Combo Board)
Main Chipset: TSUMV59XU-Z1
LED Backlight Volt: 40-46V, 24-58v
LED Backlight Current: 220mA to 300mA
Display Format: up to 1920×1080
Panel Supported: 19″ t0 26″
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohm)
Panel Voltage: 12v, 5v, 3.3v optional with jumper setting
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support as well)
Electrical Parameters:
Working Input Voltage: AC 220V
Maximum Current: 3000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
Factory Service Mode:
Menu+1147
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
T.VST29/59.43DP QT343DP Firmware Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.VST29 59.43AP_1366x768_Backup Dump | Download |
| 2 | T.VST29 59.43AP_1366x768_QT343DP_V6.1_Samsung_Backup Dump | Download |
| 3 | T.VST29 59.43AP_1920x1080_Backup Dump | Download |
| 4 | T.VST29 59.43AP_1920x1080_QT343DP_V2.5_Samsung_Backup Dump | Download |
| 5 | T.VST29 59.43AP_1920x1080_QT343DP_V5.2_Samsung_Backup Dump | Download |
| 6 | T.VST29 59.43DP_1366x768_Backup Dump | Download |
| 7 | T.VST29 59.43DP_1366x768_QT343DP_Samsung_Backup Dump | Download |
| 8 | T.VST29 59.43DP_1366x768_QT343DP_Sony_Backup Dump | Download |
| 9 | T.VST29 59.43DP_1366x768_QT343DP_V2.1_Samsung_Backup Dump | Download |
| 10 | T.VST29 59.43DP_1366x768_QT343DP_V5.3_Samsung_Backup Dump | Download |
| 11 | T.VST29 59.43DP_1366x768_QT343DP_V6.1_Samsung_Backup Dump | Download |
| 12 | T.VST29 59.43DP_1366x768_QT343DP_V6.1_Samsung_USB | Download |
| 13 | T.VST29 59.43DP_1366x768_QT343DP_V6.1_Sony_USB | Download |
| 14 | T.VST29 59.43DP_1920x1080_Apple Remote_Backup Dump | Download |
| 15 | T.VST29 59.43DP_1920x1080_QT343DP_V5.3_Samsung_Backup Dump | Download |
| 16 | T.VST29 59.43DP_1920x1080_QT343DP_V6.1_Samsung_Backup Dump | Download |
| 17 | T.VST29 59.43DP_1920x1080_QT343DP_V6.1_Samsung_USB | Download |
| 18 | T.VST29 59.43DP_1920x1080_QT343DP_V6.1_Sony_USB | Download |
| 19 | T.VST29 59.43DP_1680x1050_QT343DP_V1.0_USB | Download |
| 20 | T.VST29 39 59_QT343_V29(V6_R840 tuner)_All Resolution_USB | Download |
