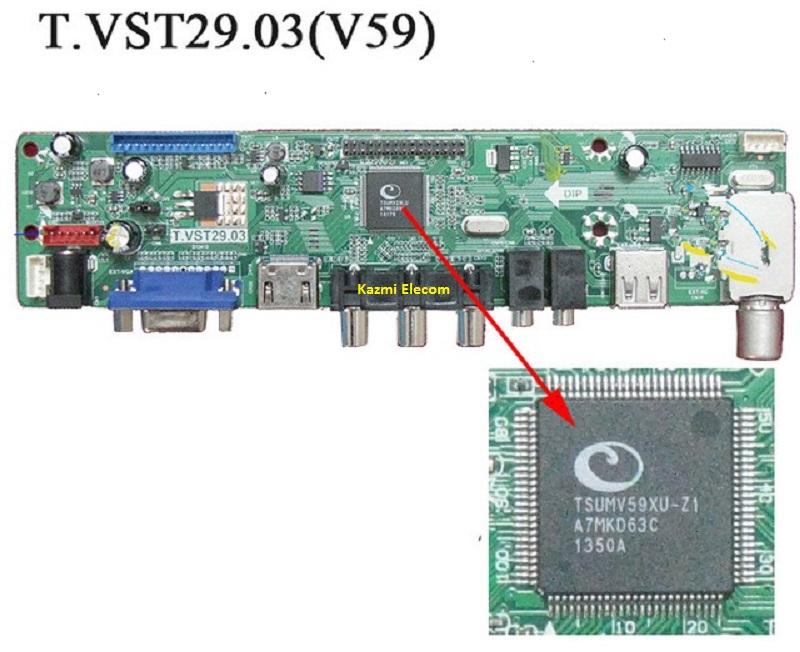

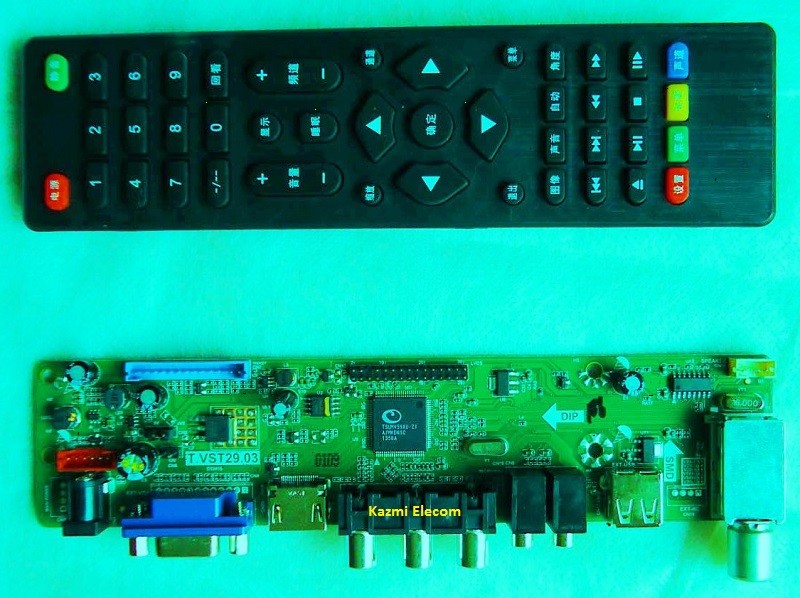

T.VST29.03 Universal LCD/LED Controller Board
T.VST29.03 Firmware All Resolution Shared in this post.
Basic Info:
Model No. T.VST29.03
Main Chipset: TSUMV29, TSUMV39, TSUMV59
Trademark: Leroy
Display Format: up to 1920×1200
Aspect Ratio: 4:3, 16:9 & 16:10
Board Size: 168.00 X 42.0 (mm)
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (*. Bin file) to the U disk.
Step 3: Connect the U disk with Mainboard
Step 4: Connect the Keypad and IR also
Step 5: Connect the power supply, check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
Factory Service Mode:
Menu+1147
Note: The following given firmware is USB Boot. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware and then extract you will get the folder. Now load the file by the programmer. For More Detail about download, process watch the video Click Here
T.VST29.03 Firmware All resolutions Free Download Here :
J’aime beaucoup
Dear Agar china led tv k firmware all resolution zip file ho to behtar hoga thanks.
1600*1200 Resolation ka Softwear Chai a T.vst29.03
plzz add 1600×1200 resolution plzz badly need it!!!!!!
not available for this board. you should change the board
T.vst 29.031 1920×1080 ultra software send kar dy.please urgent
T.VST.03
t,vst29.03 1280×800
T.vst29.03 software download
Sir. Hame 1366*768 software cahiye
T. VST29.03 BOARD SOFTWARE RE UPLOAD PLEASE
terima kasih ini sangat membantu
after installation of v59 the language change to Chinese.. how to change it back to English? thank you and more power
open menu then last option of menu
Thank you, but the screen is in mirror mode, how can i fix it? there is no panel settings in factory
load panel software instead of general
where I can find the panel software or download it.. im really sorry bro for the inconvenience..
share panel id
T320XVN01.0
helo sir i cant download file it showing link error
resolution??
sir T.VST29.03 ka 1440×900 resolution ka software chahiye please woh link expired hogaya hai error araha hai
alternate link updated. v59 chipset wala hy
