T.VST26.3B Software Free Download

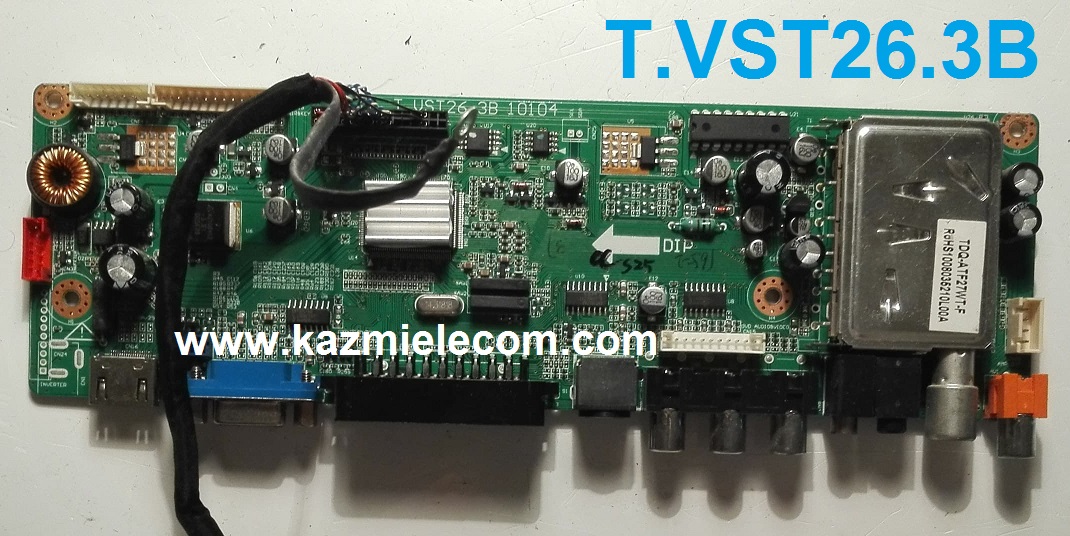

T.VST26.3B Universal Board

T.VST26.3B is a universal LCD/LED TV non-combo controller board with multiple interfaces like AV, HDMI, VGA, and SCART input. If you are facing any issues during firmware installation then visit and read here first.

Basic Info:

Model No. T.VST26.3B 10104

Main Chipset: TSUMV26

Trademark:

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Flash Memory: 1 Mb (25Q80)

Sound IC: 1517

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Note: The following firmware is a USB upgrade file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.

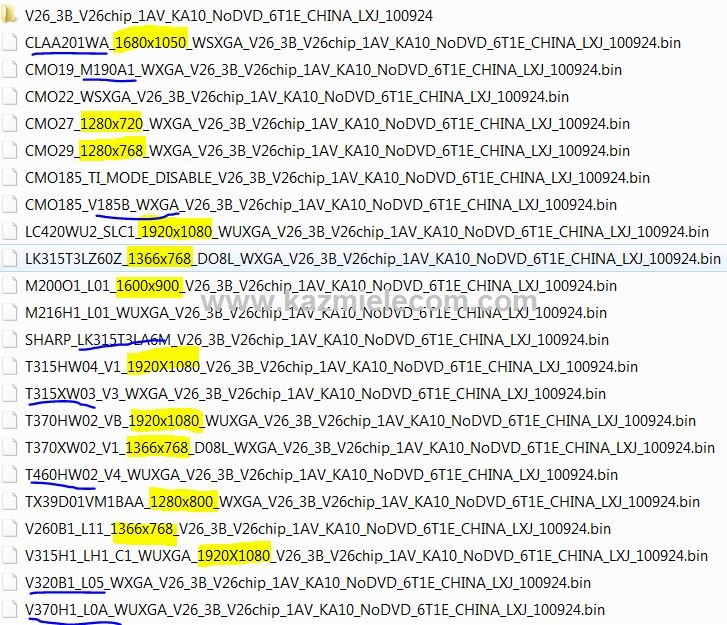

Supported Resolutions:

• 1280×720
• 1280×768
• 1280×800
• 1366×768
• 1600×900
• 1680×1050
• 1920×1080

 T.VST26.3B firmware for free download.

For video tutorials, visit “Kazmi Elecom” my youtube channel.
