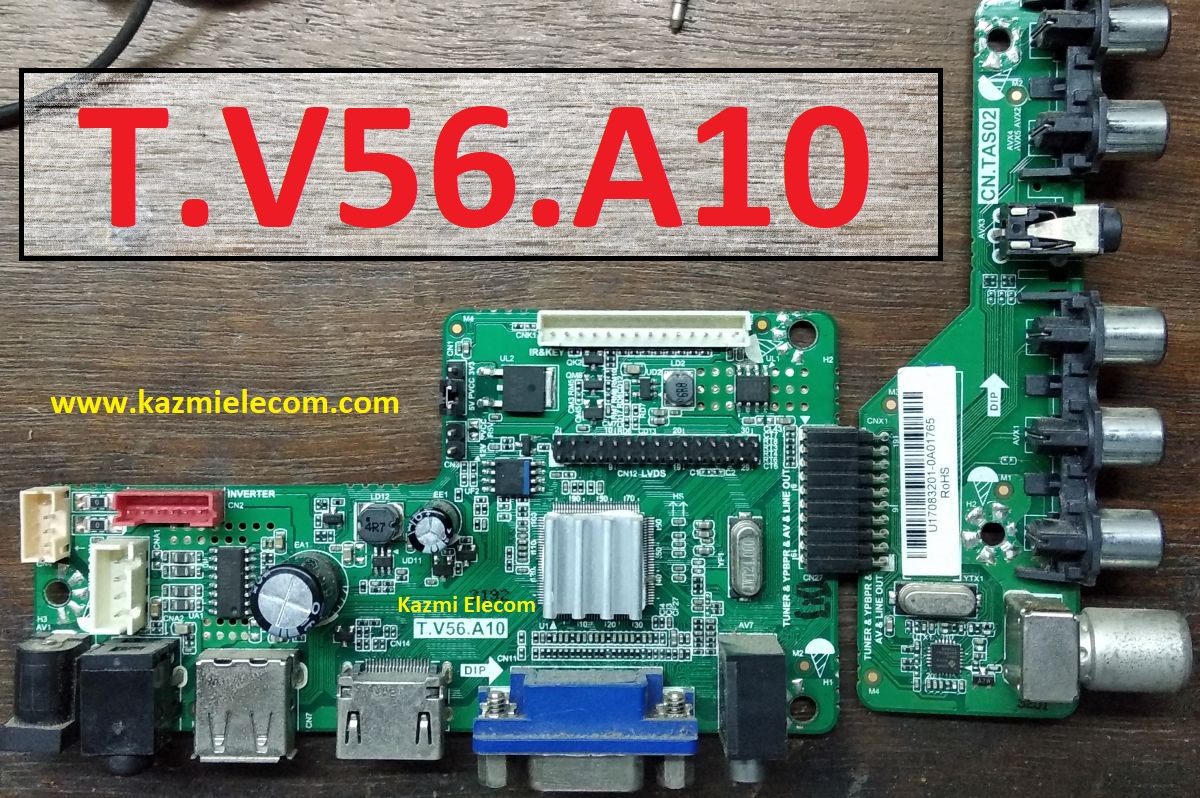

T.V56.A10 LED TV Board
T.V56.A10 is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately but ATV Card is built into this motherboard. This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.T.V56.A10 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: T.V56.A10
Main Chip: TSUMV56
Product: LED TV
LED Backlight: mA
Flash IC: 4Mb
Sound Chip:
Tuner: ATV
Screen supported: 24-32 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Service Code:
Menu 1147, Source/Input 2580
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download your required resolution firmware/software and then extract it you will get the folder. Now copy the files to USB or load them with a programmer. For more Details about the download process watch the video Click Here
T.V56.A10 firmware for free download:
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
