T.V56.81 Firmware Free Download

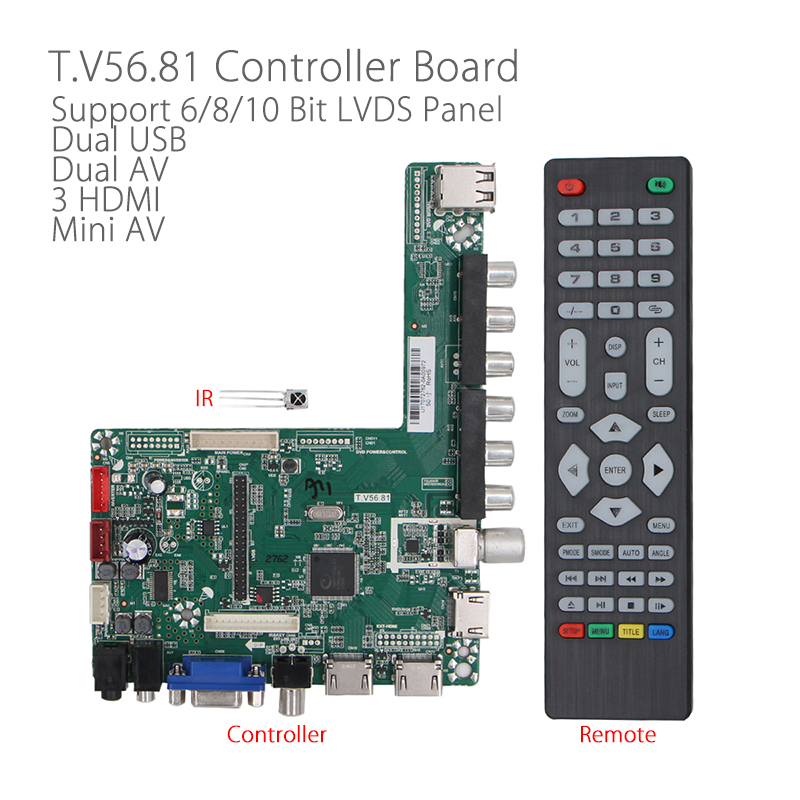

T.V56.81 FHD LCD Driver Board

T.V56.81 Full HD LCD Universal Driver Board has three HDMI, Dual AVVideo Support USB Playback TV Board. It Supports multi-OSD languages. This universal LCD control board supports a lot of panels. Max supports Full HD LCD tv main board 1920X1080 resolution TFT-LCD  7″ to 50 ” screen. it can Dynamically adjust the picture’s color, contrast ratio, definition, and so on. it Automatically detects input video format. T.V56.81 supports the USB upgrade. T.V56.81 firmware is given below for the Technician’s support.



Basic Info :

Model No. T.V56.81

Main Chipset: TSUMV56RUU-Z1

Tuner: R842

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

General Specifications & Features:

TV System: PAL/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Source/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohm)

Panel Voltage: +12V

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt 4Amp

Maximum Current: 4000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

• Empty the USB disk or Format in FAT32
• Copy the required resolution file (*. Bin file) to the USB disk
• Connect the USB disk to the mainboard
• Connect the Keyboard and TV Mainboard
• Connect the power supply, and check the keyboard light. If there is a flashing light,
  that is in the written program, waiting for the light to turn to Green, work is done.

Note: If there is no flashing light, please cut off the power supply, then connect the USB disk once
again, then connect the power supply again, and if the power supply can’t be cut off *The same firmware can only be burned once a time

Factory Service Mode:

Menu+1147

Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

T.V56.81 Firmware Free Download Here :

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	T.V56.81_1366x768_M90_Firmware	Download
2	T.V56.81_1920x1080_M90_Firmware	Download
