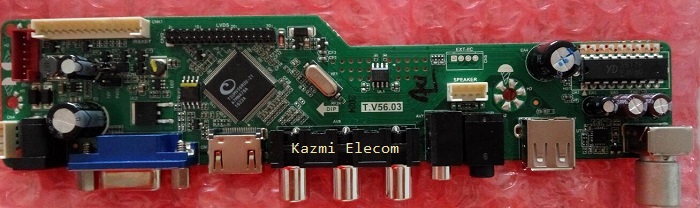

T.V56.03 Universal LCD/LED Controller Board
T.V56.03 is a small universal LCD/LED TV Driver Controller Board with DC input power and Jumper cap setting for Panel VCC.
Basic Info:
Model No. T.V56.03
Main Chipset: TSUMV56RUU-Z1
Trademark:
Display Format: up to 1920×1200
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Plugin the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the power and Wait even IR indicator led flashing in speed
- Done. Unplug the U-disk (It will take a max of 1 min to upgrade firmware)
- It continues to flash and never stop. This is normal, just wait about 1 minute, this means that the update is complete. Then turn off and turn off the u-disk
Factory Service Mode:
Menu+1147
Note:
If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download your required software and then extract it you will get the folder. Now copy the files to USB or load with Programmer. For More Detail about the download process, watch the video Click Here
T.V56.03 Firmware All resolutions Free Download Here :
| S.NO. | RESOLUTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.V56.03_1024X768 | Download |
| 2 | T.V56.03_1280x1024 | Download |
| 3 | T.V56.03_1366X768 | Download |
| 4 | T.V56.03_1440X900 | Download |
| 5 | T.V56.03_1600X900 | Download |
| 6 | T.V56.03_1680X1050 | Download |
| 7 | T.V56.03_1920X1080 | Download |
| 8 | T.V56.03_1920X1200 | Download |
| 9 | T.V56.03_1280x800 | Download |
| 10 | T.V56.03_1366X768_Sony | Download |
| 11 | T.V56.03_1920X1080_Sony | Download |
| 12 | T.V56.03_1366X768_LG | Download |
| 13 | T.V56.03_1920X1080_LG | Download |
| 14 | T.V56.03_1366X768_Samsung | Download |
| 15 | T.V56.03_1920X1080_Samsung | Download |
plz send softwair 56.30univarsal
Sir I want led lcd tv software please give me
which software???
I WANT T .V56.03 UNIVERSAL BOARD BIOS FIRMEWARE . WHARE IS AVALABLE. PLZ GAID ME
Need firmware for 1024×600
hello.
i need dump rom for this board because my eeprom chip was replaced.
can you share..
many tanks.
Already posted all resolutions
Plz. 56j11.2 software to resolution
firmware T.V56.03 1366×768 samsung and also in general is not working.. pls.. help me! what swill i do and if need to pay for the firmware to work, how much the cost of this? i hope is not so expensive.
working
I need software tv56.03 1680-1050.. using sony remote.. Pls help me.
not available. use china remote
where i can got it. help me to find it
Sir T.V56.03 Firmware software1920×1080 resolution please give me
Already posted. Download
Mainboad LA.MV56U.A tidak respon ke panel v236h1-le6.apa harus saya lakukan mohon petunjuknya
Sir 56.03 all resolution software please sent me
Sir my board is T.V56.031 IT THE TO the t.v.03?
Dear, good afternoon, I have, the controller card T.V56.03, an LDC of a TV LG 37LK450-SG.AWHYLUR, its screen is LCD is “LC370WUE-SCA1”, 1920×1080, 12 Vdc, I connect everything but I do not load the firmware neither general nor the others. Consult, I need an investment card to work or only with the T.V56.03 direct vast and superfluous, thanks, I remain attentive to your comments, I hope you can help me.
Sir T.V 56.03 univarsl bod to 12801224 Resolution Software please sent me
1366×768 lg takes me to 1920×1080
Kazmi sahab thanks
cam you direct me to a video because i cant seem to get mine to work
too many videos are available on youtube
it wont let me update and i dont know why
can you tell me where to get on i had to return mine because it was broken and i dont trust the seller
i bought the T.V56.03 CONTROLLER BOARD (TSUMV56RUU-Z1 / A7MPP46A / 1829A)
for the old hp laptop screen innolux BT156GW01 V3.
The firmware it came with is 8bit colour and the screen is 6bit.
Is that a configuration setting I can do without updating the firmware?
or do I have to download this 1366×768 firmware of yours?
no need to update software. you can make changes in the service menu. press Menu then 1147 then panel setting and change bit mode or LVDS
In the menu (menu + 1147 or input +2580) it doesn’t allow to change to 6-bit
or to change LVDS MAP or CHANNEL.
not with left and right arrows or enter.
Is there a trick to change it? or do i need to upgrade the firmware?
System info
Mantis/OCS: CPS8_18010296
SW UPGRADE NAME: VST56_4MB.bin
PANEL INFO: PANEL_CMO_32_B1
EDID: OK
TUNER TYPE: RAFAEL_042_R040
BOARD TYPE: T.VST56.03
FLASH SIZE: 4M
MEMORY SIZE: 64M
First, take the backup and then try to load other software
and does your software (T.V56.03_1366X768 – FACTORY REMOTE) works for my case?
my screen is a innolux BT156GW01 V3
yes it works
I could fix it without updating the firmware.
The problem is V56 doesn’t allow you to change manually the
COLOUR BIT
LVDS MAP
LVDS CHANNEL
in the PANEL SETTINGS, the first option is the PRESET ID.
only there you can change it.
It was at 0 for me. i could change it to 1 and, when i tryed to change forward to 2 it went all black, so I got back to 1 or 0.
ONLY THEN, i tried to keep going forward even though the screen was all black…and shazam! at the number 5, the bit colour changed to 6bit, and LVDS MAP and CHANNEL was set right and my screen is perfect now.
If anyone face this problem that’s the right solution to it.
Thank you Kazmielecom and good luck for you all DIY’ers.
Kazmi sahib please share T.R 83.031 V3 bin file
Already shared
Larning
i want t.v56.a8 univasal board softwer
It works amazing , thank you!
Vhai jan mujhe sofwer chahyea
T.V53.03 per ye firmware use ho sakte hain kia.???
No
Hey anyone know how to make the monitor turn on automatically when the power is connected? It’s for an arcade monitor and it did it before I updated the firmware.
Panel Interface: Single channel or Dual channel LVDS
V System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for motherboard only)
sir i want t.v56.03 software by micromax 13668768
check in micromax post by model number
Hi, do you know how to backup the installed firmware? is it possible to do it from the service menu? I don’t see the option… 🙁 Thanks.
no need to save backup for this board. you can load any software in this board easily by usb
Sir mujhe t.v56.03 ka 1024×768 ka software chahiye h
ok i update soon
Please, somebody can help me with the Data Sheet to T.V53.03. Thanks in advance.
Please some body can help me with the data sheet to.v56.pa671
hello i have a tiny problem my remote is not working and i lock on the key command,,, and now y dont know how to repair this problem you have idea how to to repair the key lock ? thanks for your answer
reload software
sir I have a T.V56.031 and in the service menu under Erase data Area the Permission is denied how do I update my firmware for 1600 900
Thx Sir
no need to update. installed version is final
vs.sp35851.22. software
https://www.kazmielecom.tech/2019/10/15/vs-sp35851-firmware-free-download.html
well
boa tarde amigo tudo bem? estou precisando do sofwere da placa universal i.a.mv 56 u.a pra funcionar no display Samsung modelo LTM24CT04, nao achei na internet o sofwere.obrigado aguardando resposta…
search with complete board number of resolution 1920×1200
