T.V53.816 Software Free Download

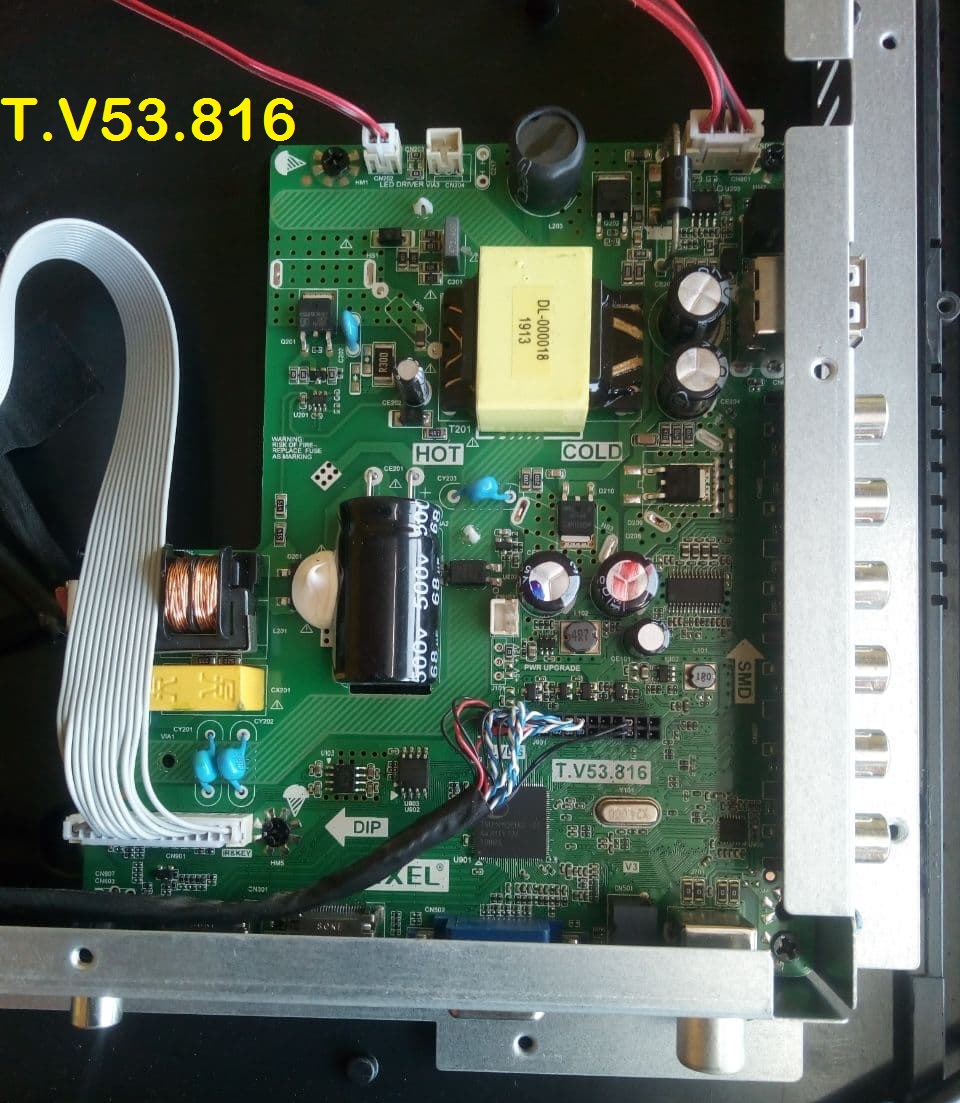

T.V53.816 LED TV Board

T.V53.816 FHD three in one LCD/LED TV Driver Card for LED Display Screen 26″ to 32″. T.V53.816 can support up to 1920×1080 screen panel resolution. The USB interface can be used for software Upgrades and Multimedia Playback functions. T-V53-816 is specially designed for the Middle East and Asian Countries.

Download Here

Basic Info:

Model No. T.V53.816 (Combo Board)

Main Chipset: TSUMV53

LED Backlight: 25W

Display Format: 1080 Full HD

Panel Supported: 26″ to 32″

Aspect Ratio: 16:9

Wide Screen: Yes

Backlight: LED

Display: TFT-LCD

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Language OSD: English,Hindi,Simplified ,Chinese,Khmer,Myanmar,French,German,Italian,Spanish

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohms)

Max. Resolution: 1920×1080

Panel Voltage: 12V, 5V

Backlight: 48W 12V/19V 30V-44V/25W 2PIN-2.0+3PIN-2.0 or 2PIN-2.0+2PIN-2.0
48W 12V/24V 45V-63V/25W
48W 12V/32V 64V-94V/25W
48W 12V/19V 34V-54V/25W

USB Port: USB interface for Firmware Upgrade and Multimedia Playback Support

Note: External DC 12V Power Jack is also available on this board

Electrical Parameters:

Working Input Voltage: 100-240V AC

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Factory Service Mode:

Menu+1147

Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here

Here are below T.V53.816 Firmware for Free Download Here :
