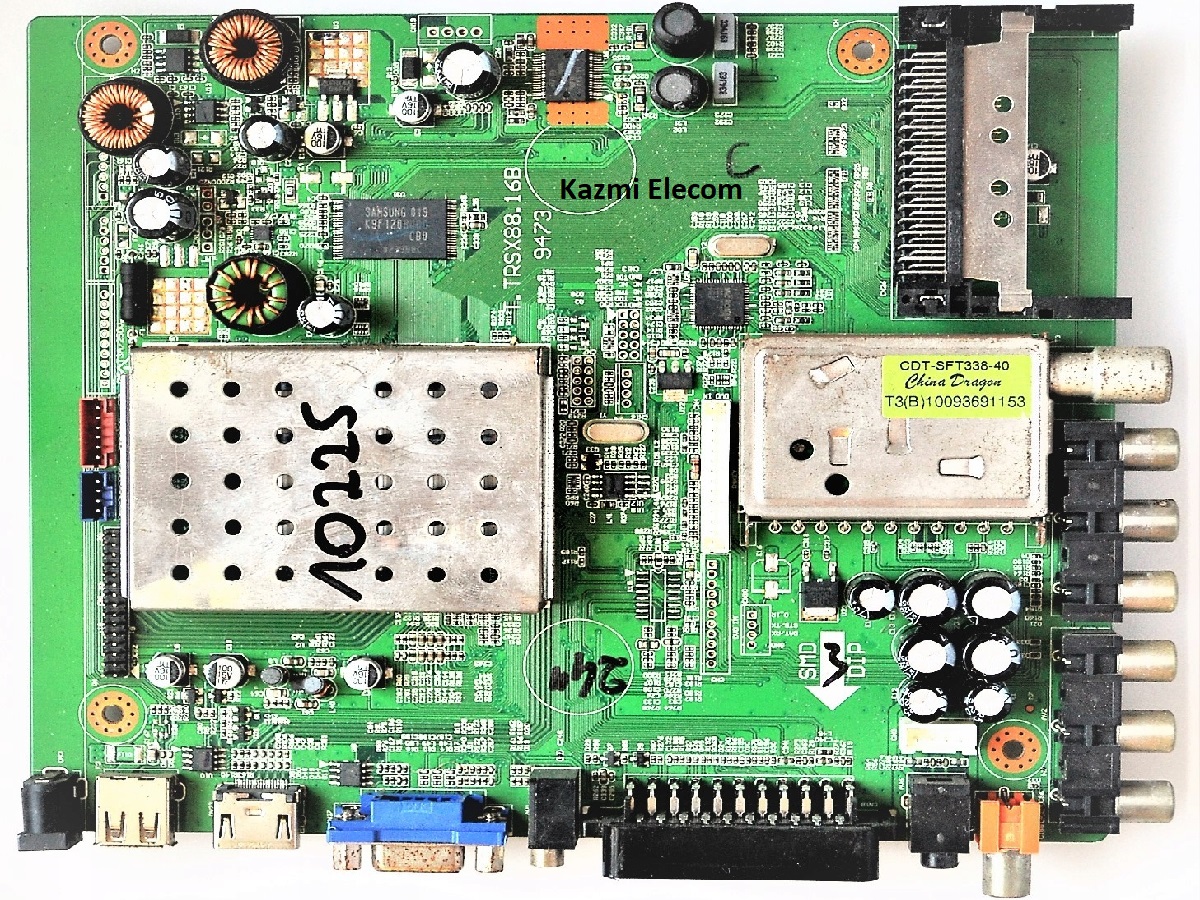

T.TRSX88.16B LCD/LED TV Board
T.TRSX88.16B is an LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 20-30 inches of LED panels, with a maximum resolution of up to 1920×1680. T_TRSX88_16B is a non-combo board i.e. power card and backlight driver module are required separately while the ATV board is built-in into it. T-TRSX88-16B has multiple input interface ports like USB, HDMI, AV, Headphones, and Scart ports for computer connectivity.
T TRSX88 16B for many brands of LED TVs like Prosonic, Lumatron, TOKAI, etc. Its USB interface can be used for loading software as well as for playing multimedia files. T.TRSX88.16B support for analog TV signals. T.TRSX88.16B firmware files are given below for the technician’s support.
General Specifications:
Model: T.TRSX88.16B
Main Chipset:
Resolution Supported: 1920×1080
Flash Memory: 25Q40 25Q80
Television System: PAL (BG, DK), SECAM (BG, DK, LL)
Tuner: CDT-SFT336-40
Audio Output Power: 2X6 W (8Ω)
Backlight: NA
Backlight Power: W
Power Input: 12V
Power Consumption: 45W
Service Code: Menu
Firmware Name: .bin
Firmware Type: Backup Dump
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB.
T.TRSX88.16B Firmware files for Free Download:
