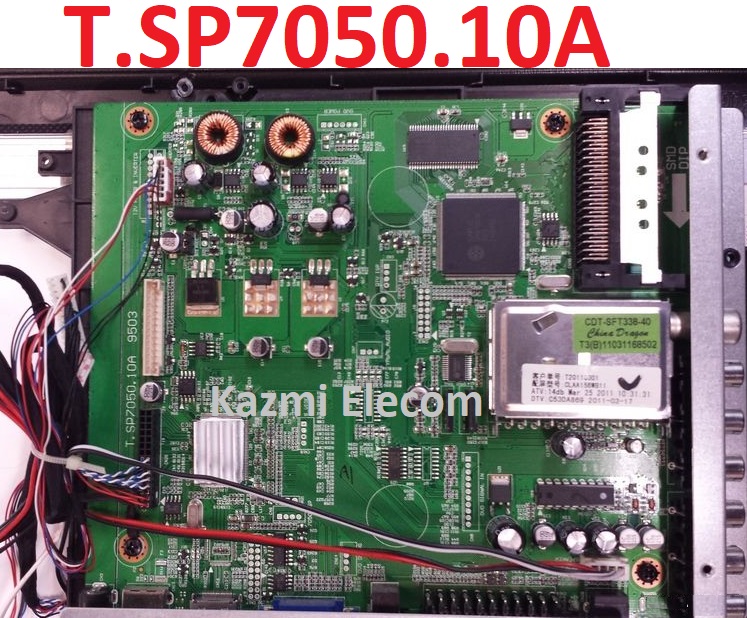

T.SP7050.10A LED TV Board
T.SP7050.10A is a simple ATV Driver Motherboard designed for LCD TVs. This board is suitable for the Asia Pacific and the Middle East markets. This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately but the ATV Card is builtin into this motherboard. It has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.T.SP7050.10A 9503 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: T.SP7050.10A 9503
Main Chip: SUNPLUS SPHE1003A
Product: LCD TV
LED Backlight: mA
Flash IC: 1Mb & 2Mb
SPI Flash: 1M – U11
SPI Flash: 2M – U24
Sound Chip: YD1517P
Tuner IC: CDT-SFT338-40
Screen supported: 15-24 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Service Code:
Source/Input+
Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
T.SP7050.10A firmware for free download:
For video tutorials, visit “Kazmi Elecom” my youtube channel.
