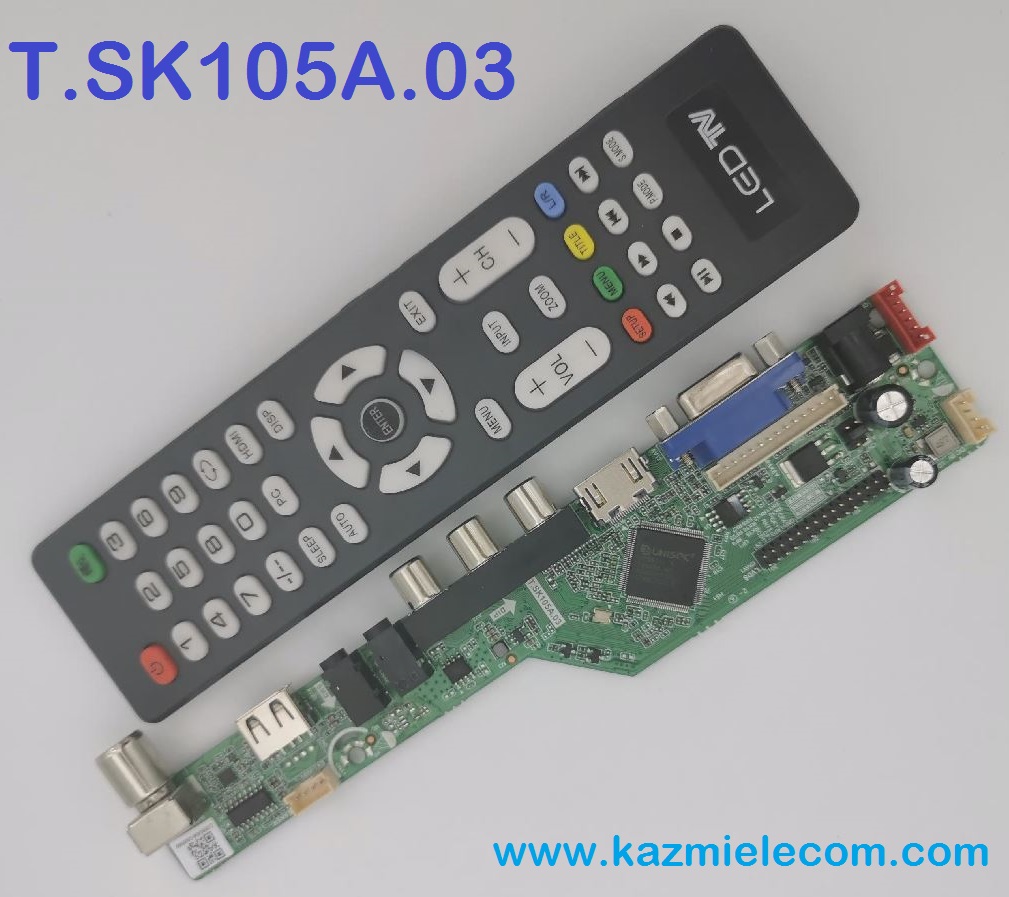

T.SK105A.03 Universal LED TV Board
T.SK105A.03 is a universal jumper option board for all universal LCD/LED TV panel screens.
Basic Info:
Model No. T.SK105A.03
Main Chipset: UTS6710-x
Display Format: up to 1920×1200 (FHD)
Supported Screens: up to 42″
Aspect Ratio: 4:3, 16:9 & 16:10
TV Format: Analog Signal
Support Language: Russian, English, Hindi, Simplified Chinese, Khmer, Vietnamese, Myanmar, French, German, Italian, Spanish
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: LVDS Double 6/8
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Screen voltage: 3.3V / 5V / 12V (Jump cap)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 3-5 Amp
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
Not only USB interface can be used to upgrade programs, but also can be used to play video/music/photos, basically, formats are supported. You can also set a boot display pictures or LOGO and Mirror Enable.
How to Upgrade T.SK106A.03 Program:
- Copy the Required bin file in the FAT32 USB Disk
- Plugin the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the power and Wait even IR indicator led flashing stop (or flashing speedily)
- Done. Unplug the U-disk (It will take max 1 min to upgrade firmware)
Factory Service Mode:
Menu+1147
Firmware Name: UTS6710_100.bin
Firmware Type: USB upgradeable
Remote Type: M90
Note: The following T.SK105A.03 firmware/software is USB upgradeable. Download the required resolution and then extract/unzip anyone of them you will get the folder. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download T.SK105A.03 Firmware files:
Download your required T.SK105A.03 resolution file and then extract them you will get the folder. Now copy the bin and text files to USB. For more Details about the download process watch the video Click Here

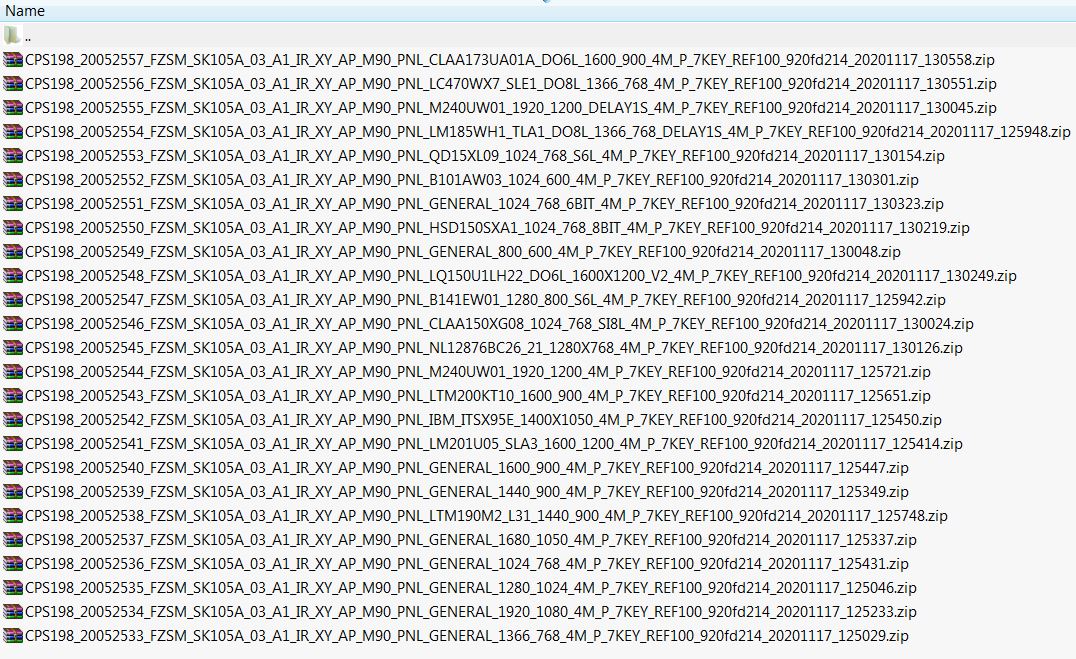

T.SK105A.03 Firmware All resolutions Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.SK105A.03_800X600_Firmware_USB | Download |
| 2 | T.SK105A.03_1024X600_Firmware_USB | Download |
| 3 | T.SK105A.03_1024X768_Firmware_USB | Download |
| 4 | T.SK105A.03_1280X768_Firmware_USB | Download |
| 5 | T.SK105A.03_1280X800_Firmware_USB | Download |
| 6 | T.SK105A.03_1280X1024_Firmware_USB | Download |
| 7 | T.SK105A.03_1366X768_Firmware_USB | Download |
| 8 | T.SK105A.03_1400X1050_Firmware_USB | Download |
| 9 | T.SK105A.03_1440X900_Firmware_USB | Download |
| 10 | T.SK105A.03_1600X900_Firmware_USB | Download |
| 11 | T.SK105A.03_1600X1200_Firmware_USB | Download |
| 12 | T.SK105A.03_1680X1050_Firmware_USB | Download |
| 13 | T.SK105A.03_1920X1080_Firmware_USB | Download |
| 14 | T.SK105A.03_1920X1200_Firmware_USB | Download |
T.R67.03.V3 Multi-Resolution and Multi Remote Universal LCD/LED TV Jumper Board Features
Hi sir
Can you help me please.
I need datasheet of T.SK105A.03 board
After updating, my screen reproduces the image with grain and inverting the colors. Can you help me ? My screen is a LP156WH2 and is it possible to reflash old firmware?
enter to factory setting and adjust mapping
How to do that… Now I have a screen for decoration?
my display model is LP156WH4 (TL A1). I’ve ordered a 40 pin 1 channel 6 bit lvds cable and a T.V53* card. However the seller sent me a T.SK105* card. (Haven’t received the lvds yet.)
Can you please give me some advice in this regard? Will they work together?
30 pin universal lvds
hello good day i have a problem on t.sk105a.03 board i accidentally put it on burn mode i try everything nothing work and update won’t work too
https://forum.kazmielecom.com/showthread.php?tid=1916&highlight=burn+mode
hi sir i reprogram tsk105a.03 for 1366×768 the resolution is ok but cant found chanel in cable/ant
maybe tuner ic is dry
Hello! … I have bought the t-sk105a-03 board and it works fine, but I only play videos with audio in MP4 format, … in other video formats (MKV, AVI, etc) its playback is mute and the OSD message appears “AUDIO NOT COMPATIBLE”. I flashed with the proper firmware from this web page, but the silent playback of MKV and AVI videos still remains. What could be the cause? Thanks in advance
No solution
Hello. I installed the 1920 x 1080 firmware for AUO B173HW01 v4. I changed LVDS map to JEIDA from NS setting.
Why is the picture washed out, like very white, and resolution is very grainy
adjust lvds setting
Pls help me i want to change the backlight value but changing it does not change the brightness.
not work for ccfl
i use old laptop LED screen why is it not working but changing the value to 11 turns off the display
maybe resolution/ LVDS mismatch
Hallo,
ich möchte meinen Controller an ein anderes Display mit anderer Auflösung anschließen.
Aber wenn ich die Firmware ändern möchte, zeigt er nur “Gleiche Version” an.
Wie kann ich die Firmware überschreiben?
Viele Grüße
jgborg
——
Hello,
I would like to connect my controller to another display with a different resolution.
But when I want to change the firmware, it just shows “Same version”.
How can I overwrite the firmware?
Best wishes
jgborg
simply load file by usb
Ha Ha, (Ironie off)
“it just shows “Same Version”….
So which file should I “simply load” ???
“Same Version” is “Same Version”…
No difference, USB-Update via standard menu or factory settings.
I met the same problem. How to simply load file by usb ?
Hi j.g. borg,
first you need to flash the “SOS” version of actual the FW and in next step the FW for the new display.
regards
HE
Hello,
How to flash “SOS” firmware ? Where can download the “SOS” firmware ?
please help,
thanks A lot.
Dino
you can rename the file REF to sos
u mean likr UTS6710_SOS.BIN
I just want to change the different firmware then show ” the same version” it seem only can work on “ONE TIME”
rename the UT6710_SOS.BIN , it not working
how to do it ?
first you need to flash the SOS version of the actual firmware.
Power cycle
and voila, you are able to flash the FW for the other display.
regards
HE :-
Hi,
Du musst zuerst die SOS Firmware flashen, dann rebooten. Jetzt kannst Du die gewünshte FW Version flashen
Viel Erfolg.
HE :-
Hello. Few signal sources work at the AV input. There is no sign. What can it be? Thanks.
reset to factory default and check again otherwise reload firmeare
Hi, I have a video with multiple subtitles. How do I select one of them? Tks.
play video then press menu. otherwise not supported
Hello i have a t.sk105a 03 but they didn’t send me a remote how can I get in to the service menu from the Little keyboard to adjust the mapping
no way. try some universal remote or purchase from local market
Hi, I have a T.SK105A.03 and install 1280×800 firmware to work with LCD Quanta QD14TL01. But windows 10 cannot show 1280×800 resolution. The best thing it can show is 1280×720 with two back border at top and bottom.
Hi, i had this with a screen of mine. Check on the GPU settings or Win10 Settings to try to force it to 16:10 resolutions. Apparently is needed to install external apps sometimes, try Custom Resolution Utility by ToastyX. In my case I had to play with the AMD Radeon Settings Lite to make my resolution 1728×1080
Please is any suggest firmware for 1024×600 with 6bit color for B101AW02-V0 display? Thank you. I flash T.SK105A.03_1024X600_Firmware_USB.rar but still white screen on display. Thank you.
panel issue
panel is good, if ai connect to original laptop. work good. I have two panels with same result. If i measure LVDS clock by scope that is ok for panel definition. Thanks for any suggestion
then you should get universal lvds cable
wat the file name of sos reference
universal
file name of SOS reference (UTS6710_SOS.BIN) “CAN NOT WORK ”
It seem only allow one time change the firmware. “The Same Version”
Where have SOS file and How to flash the SOS file ??
Please help.
Is it known what code is used on the remote? when programing a universal remote is there a brand that uses the same code map?
Is there a way to rotate the picture to portrait mode / or is there a firmware for 1080×1920 ?
No
Hello Kazmielecom, I bought this board (T.SK105A.03) in the Shopee. I save the UTS6710.BIN and UTS6710_MD5.TXT to the FAT32 USB and put the USB to the board. But when I power on the board, the Red light on the key board is ON and the light in the USB is blinking 2 times then OFF, the panel is still off. I think the board cannot flashing the Firmware in the USB, I try to rename the file to UTS6710_SOS.BIN and do it again, but I see the same issue. After that, I try to use the key board to power on the screen, the screen is on, but the resolution is very low but I can control something with Menu key, I try to change language to English and go to menu Upgrade USB in the Setting. I press on it, and the screen show me “SAME VERSION”. Please help me …
if you try to load the same resolution software then it may not boot. first, change resolution then load again required software. if display size is ok but picture is not good then chane Mapping setting from service menu.
Sometimes USB disk not supported. So, try with other USB disk
I just do anything follow your suggest but the board cannot load sứ again. I think I must remove the XM25QH32b chip and flash sw to it.
if you have a programmer then no problem
Hi,
could You provide original FW (entire binary file) – full. I think that mine was damaged someway, I have a programmer and I would like to flash it. Thanks in advance.
download. you can install by USB or can be write with a programmer
I brought a tsk board but I install it but iam seeing white screen only
check LVDS
sir,please help,,i cant download the firmware,thank you
which resolution file you required??
Dzień dobry
Mam T.SK105A.03 Po wgraniu rozdzielczości 1366X768 cały ekran świeci naprzemiennie R.G.B.
Co może być przyczyną.
resolution mismatch. check panel resolution first then load accordingly
I installed motherboard Tsk105a03 in lg 19inch panel (1280×2024)but picture is going out of panel boundaries from right side and bottom.please any solution?
check panel resolution from google the load correct resolution firmware
Hello, I’m having problems with the universal board T.SK105A.03. Any firmware I try to install it ignores. If I enter menu 1147 and try to do a SW UPGRADE, it says that it is the “same version”, no matter what is recorded on the flash drive. What do I do? And please, complete responses
the installed version is final. do not try to update. if you want to load a different resolution then you can load with usb boot. for more details:
https://www.kazmielecom.tech/2021/08/26/how-to-load-firmware.html
How to change resolution without changing firmware?
no way
But if you say that the installed version is final, so as not to try the upgrade, how am I going to change the resolution, if the USB update is the only way to do this and all I get is “the same version” ?
https://www.kazmielecom.tech/2021/08/26/how-to-load-firmware.html
Good afternoon, I would like to know if there is a way to have files with lower video resolution, below 800×600, or generate files with lower resolution.
software is designed according to height and width of the screen. board can support lower resolution videos
do you have software designed for low resolutions? Or do you know how to get it?
No
T.SK105A.03 does not support firmware update
https://youtube.com/shorts/hrHoV1I_JbI?feature=share
https://www.kazmielecom.tech/2021/08/26/how-to-load-firmware.html
The board had a problem. I was only able to update the firmware by removing the eprom and programming through the computer. By the method indicated, it doesn’t work. And this happened with 2 boards. This is serious.
maybe but this firmware is shared by the manufacturer
tsk 105 aldım ekranı 4ebölük gösteriyor 30 pin d0gru yanıtı larmısınsz rica etsem
first, check panel resolution then load appropriate firmware
yazılım yükliyemedim usb tanımıyor yanlışmı yapıyorum acaba
https://www.kazmielecom.tech/2021/08/26/how-to-load-firmware.html
yazılımda olmuyor anlamadım yardım etigin in icin sagol
başaramadım usb yazılımı tanımıyor
cözüm bulamadım
panel b154ew01 v9 cıhaz tsk105ao3 herşeyi calışıyor ekran dörde bölünmüş olarak cıkıyor yazılımda aynı verisyon diyor rica etsem cözümünü yazarmısınız saygılar
post on Forum page with pictures
herşeyden evel olur veya olmaz yardımların icin candan teşekür ederim sagol
arkadaşım bu cıhazda 16.9 4.3 nasıl ayarlanıyor bulamadımda yazarsan memnun olurum
find aspect ratio button on remote control
remote not working
Hello sir, is there any Firmware update? I found new T.SK105A.03 Mainboard but in system info the SW name is UTS6710_03C_100.bin and your Firmware is not compatible with this Mainboard.
not available
Hi. I bought a T.SK105A.03 board but it comes with wrong resolution.
I hav tried to install UTS6710_100.bin from different resolutions, but it always says: “The same version”
I hav also tried to rename UTS6710_100_SOS.bin, UTS6710_SOS.bin, UTS6710_SOS_100.bin, SOS.bin, but none of them works… What can I do? Thanks
try some other resolution then your required one
Thank you for your quick response.
Well… I have tried all other resolutions, 800×600, 1024×768, 1280×800 and even 1920×1080 that is greater than the panel specifications, but always says “The same version”…. Any other advice?
boot by USB. power off the tv then plugs in the USB then power on. it will auto boot
Thank you for your response, but neither works 🙁
The red light stays on and does not blink… I have tried other resolutions also.
I think the only way is using an Eeprom programmer as was told in previous posts. ¯\_(ツ)_/¯
Does anyone have T.SK105A.03 datasheet?
for firmware not updating over usb—->
Firmware has to be named:
UTS6710_03C_100.bin
UTS6710_03C_100_MD5.txt
i also got a B version working, but i dont tryed with, B version already had right firmware.
but if someone try:
maybe has to be named:
UTS6710_03B_100.bin
UTS6710_03B_100_MD5.txt
after sucess, go 1147 menu and change panel settings,
so i got my Lcd working.
how i can exit on burn mode on this Controller board T.SK105a.03 please help me
follow the steps in the given post or load firmware again
https://forum.kazmielecom.com/showthread.php?tid=1916&pid=2281&highlight=burn+mode#pid2281
Hi, is there a way to activate “no signal power off” with this board? I have my PC connected through HDMI and when I turn the PC off the LCD shows the no signal message but it Will stay ON for ever.
Hello. I would like firmware for lvds t.sk105a.03 with samsung screen LTN156AT02. Thanks
1366×768
https://www.panelook.com/LTN156AT02_Samsung_15.6_LCM_overview_8740.html
My china led led firmware is T.sk105a now i want to control LED with android mobile what brand is compatible with this firmware.
is board me option nai hoti. android board me hoti hy
Hi,
if anyone is reading this, provided 1920×1080 firmware DOES NOT work with AUO B173HW02, the picture is broken, it seems like these panels need a different firmware, the only one I found that works is:
CPS198_21059313_FZSM_SK105A_03_A1_IR_XY_AP_M90_PNL_G173HW01_V0_1920_1080_4M_P_7KEY_REF100_de6434dd_20210611_234828.zip
Hope that helps somebody!
Thanks
usb detect nahi kar rahi may firmware change karna tha
but usb ok hay usi lcd par ON kar k lagata hun to data show ho raha hay but firmware karte huwe detect nahi kar raha. plz help somebody my contact is (m.saadsaeed93@gmail.com) JAZALALLAH
https://www.kazmielecom.tech/how-to-load-firmware/
thanks sir
I dont know how to download firmware on t.sk105A.03
https://www.kazmielecom.tech/how-to-load-firmware/
Does anyone try or have a firmware for 800×1280 resolution LCD like CLAA070WP03XG?
1280×800 firmware seems not working.
I tried 800×600 firmware and it worked but weird display like half (top) good picture quality and another half (bottom) duplicate display with greenish colour picture quality.
