T.SIS231.T65 Software Free Download

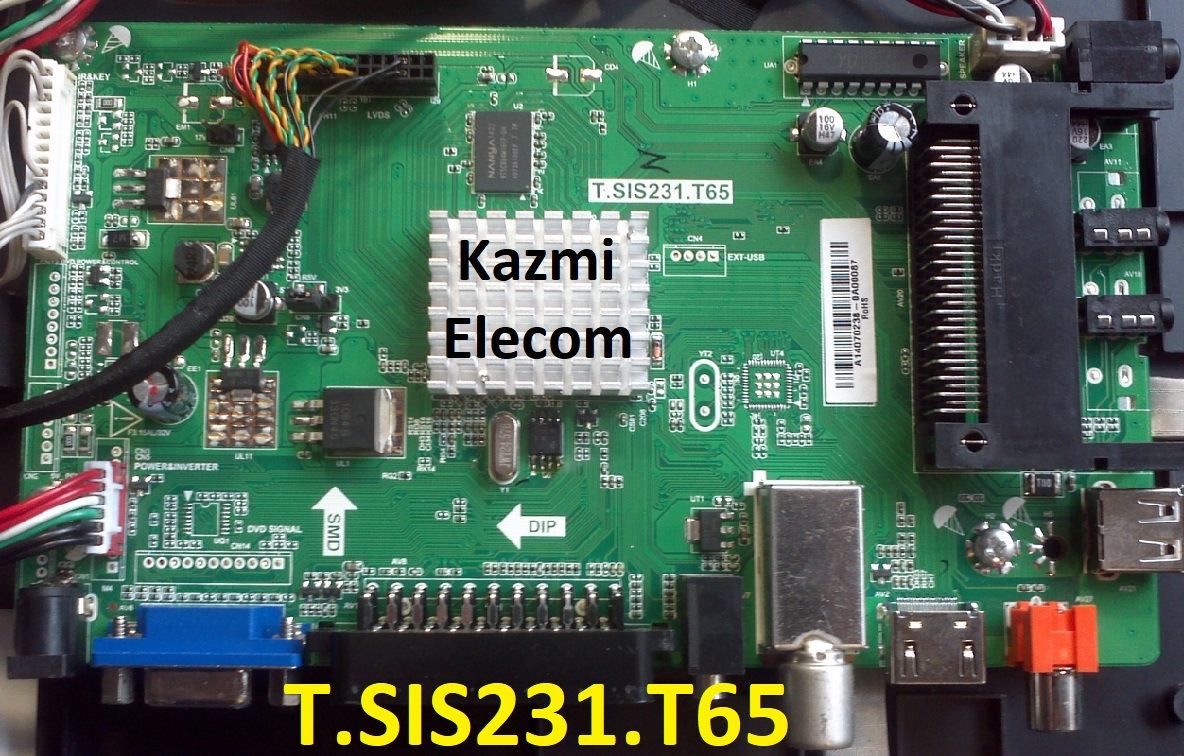

T.SIS231.T65 LED TV Board

T.SIS231.T65 is an LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 20-30 inches of LED panels, with a maximum resolution of up to 1920*1080. T_SIS231_T65 is a non-combo board i.e. power card and backlight driver module are required separately while the ATV board is built-in into it. T-SIS231-T65 has multiple input interface ports like USB, HDMI, AV, Headphones, and Scart ports for computer connectivity.

Download Here

T SIS231 T65 for many brands of LED TVs like DEXP, ERISSON, DNS, SUPRA, SHIVAKI, ROLSEN, RUBIN, etc. Its USB interface can be used for loading software as well as for playing multimedia files. T.SIS231.T65 support for analog TV signals. T.SIS231.T65 firmware files are given below for the technician’s support.

General Specifications:

Model: T.SIS231.T65

Main Chipset: SIS231

Resolution Supported: 1920×1080

Flash Memory: 25Q64

Television System: PAL (BG, DK), SECAM (BG, DK, LL)

Tuner:

Audio Output Power: 2X6 W (8Ω)

Backlight: NA

Backlight Power: W

Power Input: 12V

Power Consumption: 45W

Service Code: Menu 1147, Balance (value is “0”) +1969

Firmware Name: SISEU23X8M.bin

Firmware Type: Backup Dump, USB Update

Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB.

T.SIS231.T65 Firmware files for Free Download:
