T.SIS231.81 Software Free Download

T.SIS231.81 LED TV Board

T.SIS231.81 is an LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 24-50 inches of LED panels, with a maximum resolution of up to 1920*1080. T_SIS231_81 is a non-combo board i.e. power card and backlight driver module are required separately while the ATV board is built-in into it. T-SIS231-81 has multiple input interface ports like USB, HDMI, AV, Headphones, and VGA ports for computer connectivity.

T SIS231 81 for many brands of LED TVs like JVC, DNS, Crown, Vortex, etc. Its USB interface can be used for loading software as well as for playing multimedia files. T.SIS231.81 support for analog TV signals. T.SIS231.81 firmware files are given below for the technician’s support.

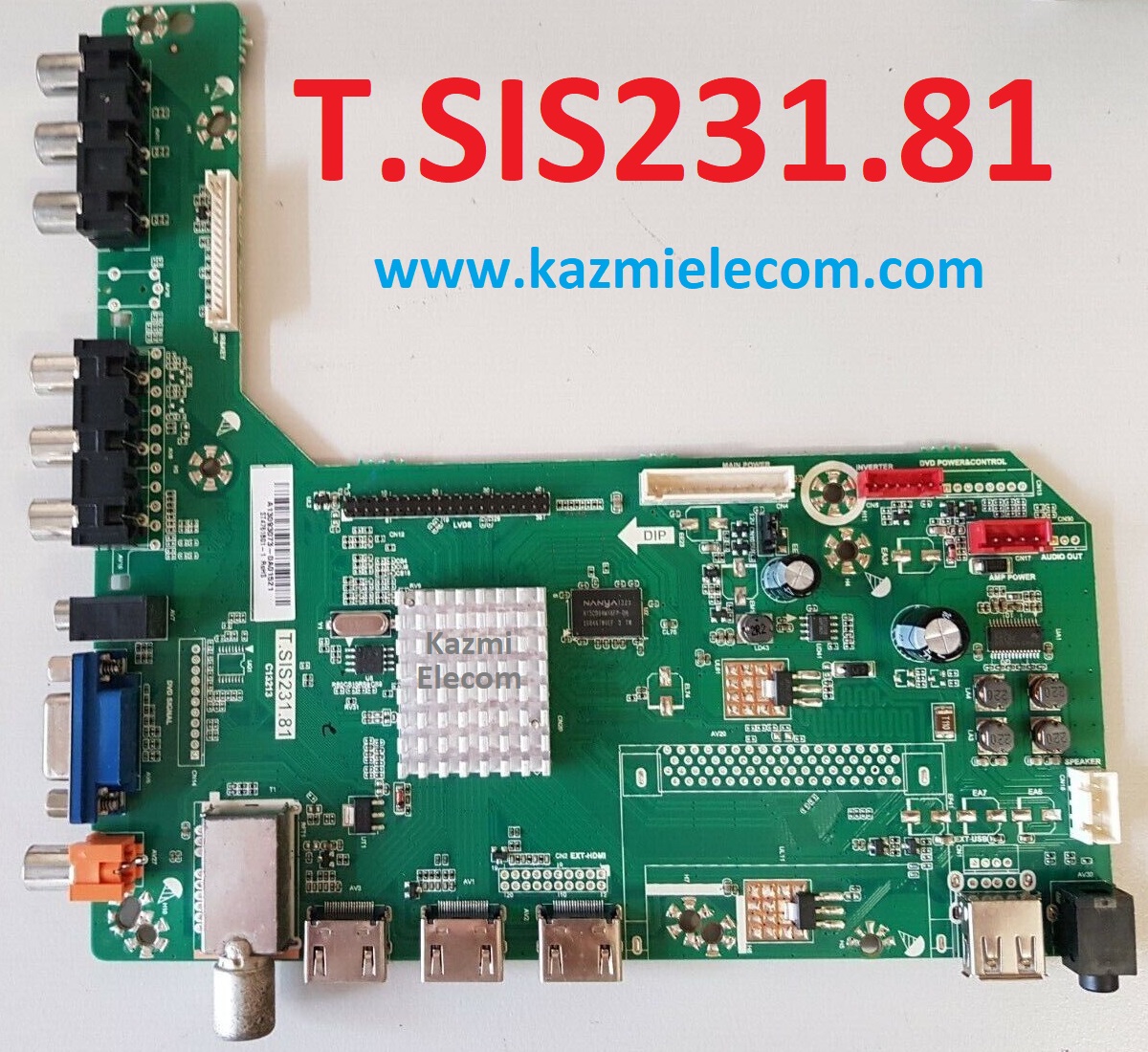

T.sis231.81

General Specifications:

Model: T.SIS231.81

Main Chipset: SIS231

Resolution Supported: 1920×1080

Flash Memory: 25Q64

Television System: PAL (BG, DK), SECAM (BG, DK, LL)

Tuner: DVB-T, DVB-C

Audio Output Power: 2X6 W (8Ω)

Backlight: 300mA

Backlight Power: 60 W

Power Input: 100 to 240V

Power Consumption: 45W

Service Code: Menu 1147, Balance (value is “0”) +1969

Firmware Name: SISEU23X8M.bin

Firmware Type: USB Bootable Firmware and Flash Backup Dump

Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB.

T.SIS231.81 Firmware files for Free Download:

Kazmi-Elecom

For video tutorials, visit “Kazmi Elecom” my youtube channel.
