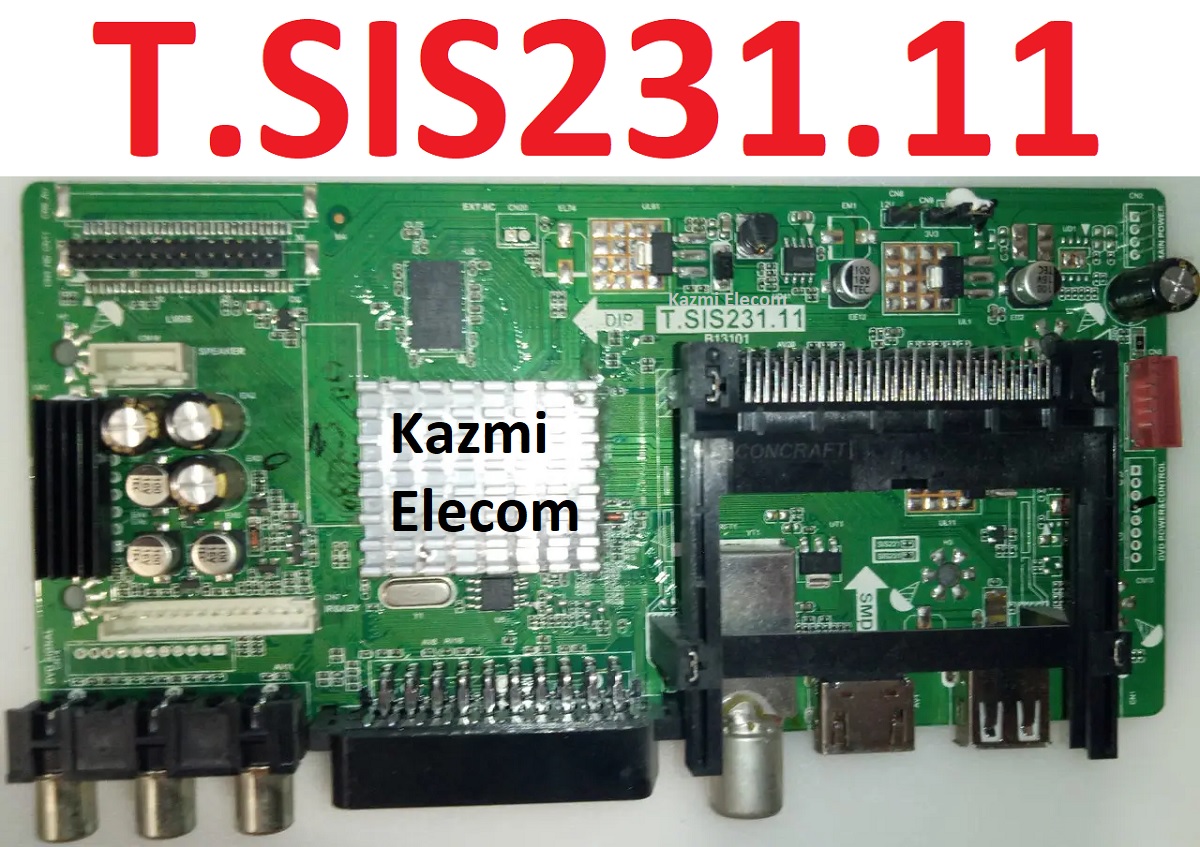

T.SIS231.11 LED TV Board
T.SIS231.11 is an LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 20-30 inches of LED panels, with a maximum resolution of up to 1920*1080. T_SIS231_11 is a non-combo board i.e. power card and backlight driver module are required separately while the ATV board is built-in into it. T-SIS231-11 has multiple input interface ports like USB, HDMI, AV, Headphones, and Scart ports for computer connectivity.
T SIS231 11 for many brands of LED TVs like AKAI, DYON, TOKAI, etc. Its USB interface can be used for loading software as well as for playing multimedia files. T.SIS231.11 support for analog TV signals. T.SIS231.11 firmware files are given below for the technician’s support.
General Specifications:
Model: T.SIS231.11
Main Chipset: SIS231
Resolution Supported: 1920×1080
Flash Memory: 25Q64
Television System: PAL (BG, DK), SECAM (BG, DK, LL)
Tuner:
Audio Output Power: 2X6 W (8Ω)
Backlight: NA
Backlight Power: W
Power Input: 12V
Power Consumption: 45W
Service Code: Menu 1147, Balance (value is “0”) +1969
Firmware Name: .bin
Firmware Type: Backup Dump
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB.
T.SIS231.11 Firmware files for Free Download:
For video tutorials, visit “Kazmi Elecom” my youtube channel.
