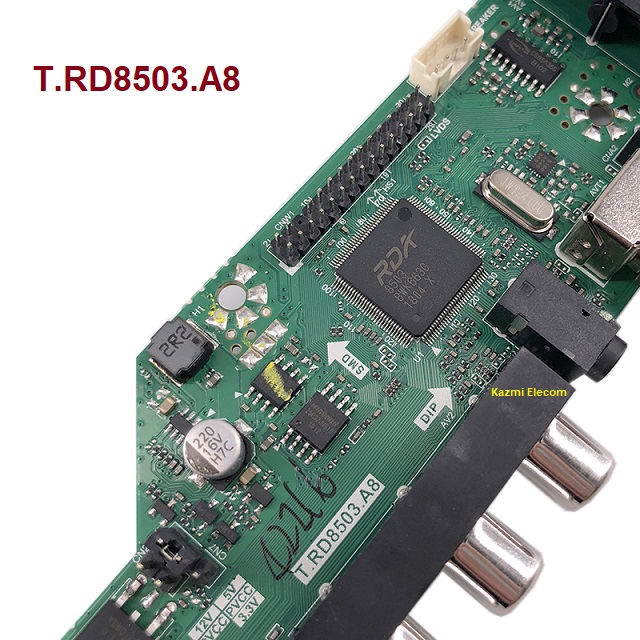

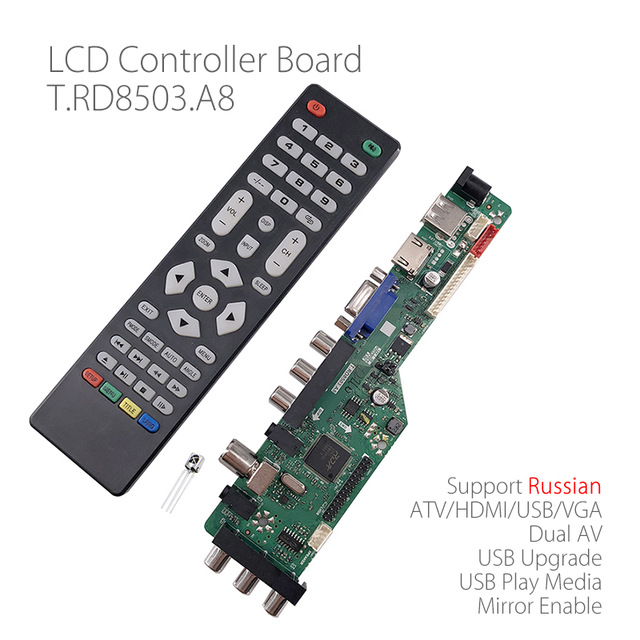

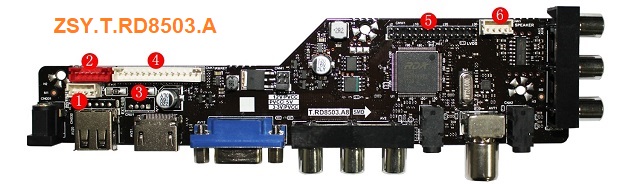

T.RD8503.A8 LCD/LED Universal Controller Board
T.RD8503.A8 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 8.9 to 42-inch LVDS Screens with a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrade as well. Its HDMI port support 1.4 and its HDCP support 1.1.
T-RD8503-A8 is compatible with 10-32 inch screens. A8 is wide-screen supported and also has multi-language option. T_RD8503_A8 has its special feature of Dual AV. ZSY-T.RD8503.A8 is also an Analog LCD-LED Universal TV Driver Card TV / PC / VGA / HDMI Driver / Dual USB Interface AV EM Russian USB Play Media.
General Specifications:
Model: T.RD8503.A8
Main Chipset: RDA8503
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Russian, English, Hindi, Simplified Chinese, Khmer, Vietnamese, Myanmar, Italian, Spanish
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Screen Voltage: 3.3 V / 5 V / 12 V
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
Electrical Parameters:
Working Input Voltage: DC +12 Volt, 3.5 Amp
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required (.bin) Firmware/software in FAT32 USB Disk
- Plug in the U disk into the Mainboard USB port of LCD/LED TV also connect Keypad and IR
- Switch ON the power and Wait for IR indicator starts flashing and never stop
- After about 1 minute, turn off the power, remove USB Flash disk, again on the power
Factory Service Mode:
Menu+1147
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download your required resolution firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
T.RD8503.A8 Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | D.LINK.1 | D.LINK.2 |
|---|---|---|---|
| 1 | T.RD8503.A8_General_1024x768_USB | Download | |
| 2 | T.RD8503.A8_General_1280x1024_USB | Download | |
| 3 | T.RD8503.A8_General_1366x768_USB | Download | |
| 4 | T.RD8503.A8_General_1680x1050_USB | Download | |
| 5 | T.RD8503.A8_General_1920x1080_USB | Download | |
| 6 | T.RD8503.A8_Panel_LTM190M2_1440x900_USB | Download |
S368A1.5 New Software Update Multi-Resolution & Multi Remote Control
T.RD8503.A8
1600×900 resulation software
