T.RD8501.03 Universal Board

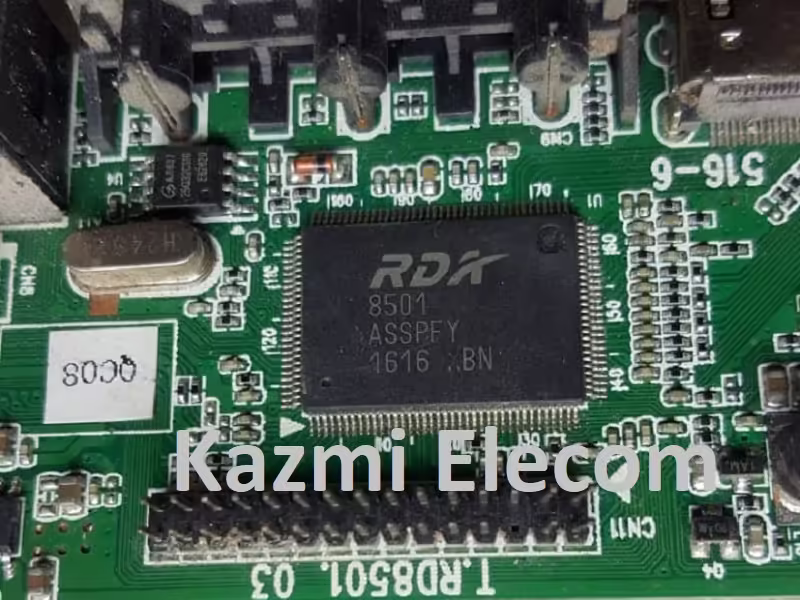

T.RD8501.03 is a universal LCD LED TV controller board. This board is multi-panel supported and multi-resolution supported with a maximum resolution of Full HD 1920×1080 pixels. It can be installed with 15-55-inch screen panels. It has multiple input interface ports such as USB, HDMI, VGA, RCA, and RF Tuner. It can be operated by a 12V DC power supply directly. It has a jumper setting for Panel screen power with different settings of 3.3V, 5V, and 12V.
Basic Info:
Model No. T.RD8501.03
Main Chipset: RD8501C
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
Board Size: 168.00 X 42.0 (mm)
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty/format the USB disk
Step 2: Copy the required resolution program (*. Bin file) to the USB disk.
Step 3: Connect the USB disk with the Mainboard in the USB Port
Step 4: Connect the Keypad and IR
Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
Factory Service Mode:
Menu+1147
Note: The following T.RD8501.03 firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first. Always keep a backup before
How to Download:
Download the following given required resolution firmware and then extract it you will get the folder. Now copy the bin file to Pen drive and install it by USB. For More Details about the download, process watch the video Click Here
T.RD8501.03 Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD |
|---|---|---|
| 1 | T.RD8501.03_1024x768_516_ IR_00BF_CVT_7KEY | Download |
| 2 | T.RD8501.03_1280x768_516_ IR_00BF_CVT_7KEY | Download |
| 3 | T.RD8501.03_1280x1024_516_ IR_00BF_CVT_7KEY | Download |
| 4 | T.RD8501.03_1366x768_516_ IR_00BF_CVT_7KEY | Download |
| 5 | T.RD8501.03_1400x900_516_ IR_00BF_CVT_7KEY | Download |
| 6 | T.RD8501.03_1400x1050_516_ IR_00BF_CVT_7KEY | Download |
| 7 | T.RD8501.03_1600x900_516_ IR_00BF_CVT_7KEY | Download |
| 8 | T.RD8501.03_1600x1200_516_ IR_00BF_CVT_7KEY | Download |
| 9 | T.RD8501.03_1680x1050_516_ IR_00BF_CVT_7KEY | Download |
| 10 | T.RD8501.03_1920x1080_516_ IR_00BF_CVT_7KEY | Download |
