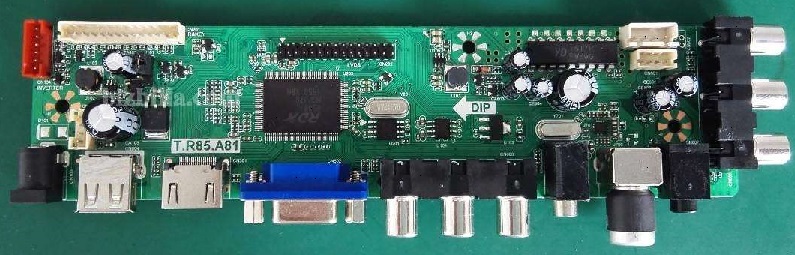

T.R85.A81 Universal LED TV Board

Basic Info:

Download Here

Model No. T.R85.A81

Main Chipset: RDA 8501

Trademark: CXEL

Display Format: up to 1920×1200

Aspect Ratio: 4:3, 16:9 & 16:10

Board Size: 168.00 X 42.0 (mm)

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

Copy the Required resolution Firmware/software in FAT32 USB Disk
insert the U disk into the Mainboard USB port of LCD/LED TV
Switch ON the power and Wait even IR indicator led stops flashing
Done. Unplug the Udisk (It will take max 1 min to upgrade firmware)

Factory Service Mode:

Menu+1147

Note: The following given software/firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here

T.R85.A81 Firmware All resolutions Free Download Here :
