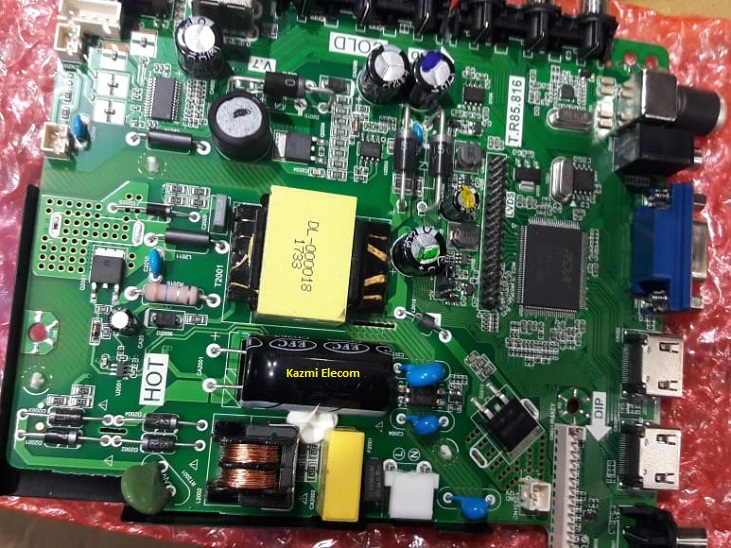

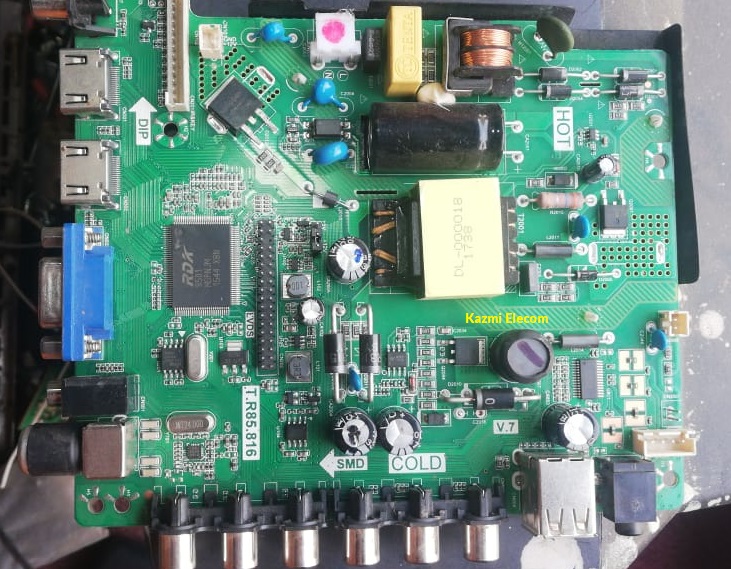

T.R85.816 LED TV Board

T.R85.816 is a simple ATV Driver Motherboard intended for LCD/LED TVs. It is intended to support Full HD LCD/LED Panel Screens. This board is suitable for the Asia Pacific and the Middle East markets. This is a three-in-one Combo Board. The main power module and LED Backlight Inverter Circuit module and ATV Card are built into this motherboard. This board has all the features and connectivity ports as per the latest user requirements like HDMI input, USB interface, PC input, Component Input, and TV tuner.

Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. T.R85.816 is a Full HD-supported LCD LED TV controller board with a maximum resolution of 1920×1080. It can support 28 to 39-inch HD and FHD panel screens. The main processor is made by RDA and its graphics are also good. T.R85.816 firmware files are given below for the technician’s support.

Specifications and Features:

Brand/Mark: CXEL/China Universal

Model: T.R85.816

Main Chipset: RDA8501, RDA8501C or RDA8501G

Product: LED TV

Resolution: Up to 1920×1200

Panel: 26″ to 32″

Panel voltage: 12V, 5V

Input Supply: 220V AC

Backlight: 33-63V, 560ma 25W

Speaker Output: 2x5W

Firmware Name: ETG.8501.bin

Firmware Type: USB Bootable

Service Code:

Menu+1147

Caution:

All the pictures and specification details related to T.R85.816 in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.

Pros:

There are many advantages to installing the given T.R85.816 USB software or backup dump file. A few benefits are described below:

• The dead/Red light board can be recovered and operational by loading the given software backup file
• Remote and Logo may change at your own choice to satisfy the customer
• Money saving instead of changing the mainboard
• Time-saving instead of arranging a new board
• Customer satisfaction to do an urgent job
• Skill and confidence improvement

Cons:

There may be some disadvantages to installing the given T.R85.816 USB software or backup dump file. But it depends on the technician or user as per his understanding. A few drawbacks are described below:

• The working board may go to the standby position
• Remote Control may not work and the Logo may change by writing the given software
• Panel screen parameters may be changed

T.R85.816 Version Upgrade:

Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software is malfunctioning due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.

T.R85.816 Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.

Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first. Always keep a backup before writing the flash.

How to Download Firmware Files:

Download your required resolution of the following T.R85.816 firmware and then extract it you will get the folder. Now copy the bin file to USB. For more Details about the download process watch the video Click Here

T.R85.816 firmware free download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	T.R85.816_1366X768_USB_China	Download
2	T.R85.816_1366X768_USB_Samsung	Download
3	T.R85.816_1366X768_USB_Sony	Download
4	T.R85.816_1920X1080_Samsung	Download
5	T.R85.816_1920X1080_USB_China	Download
