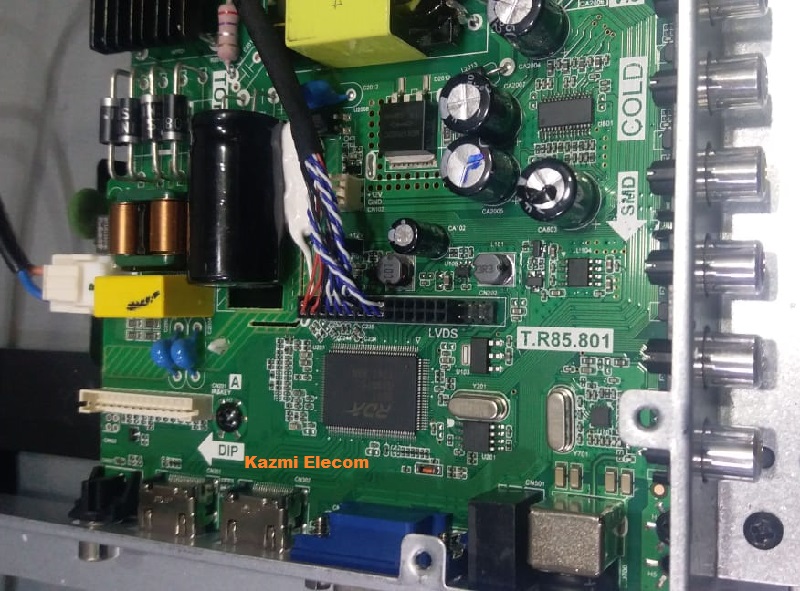

T.R85.801 Universal LED TV Main Board
T.r85.801 is a universal LCD/LED Main Controller Board designed especially for Asia Pacific and the Middle East. It supports 32—to 46-inch screens, multiple OSD Languages, and Dolby. Its 8501D chipset supports Dolby, and 8501G supports 3000 games.
Its USB supports multimedia record and playback, games (optional), and software upgrades. USB1’s special feature is copying and pasting to USB2.
General Specifications:
Brand/Mark: CXEL/China Universal
Model: T.R85.801
Main Chipset: RDA8501, RDA8501C, RDA8501D or RDA8501G
Product: LED TV
OSD language: English, French, Thai, Arabic, Hindi
TV system: PAL BG, DK, I / NICAM/A2
TV Frequency Range: 48.25MHz -863.25MHz total 199 channels
Max Resolution: Up to 1920×1200
Panel Size (inch): 31.5, 32, 37, 40, 42, 46
Panel voltage: 12V, 5V
Panel Connector: Single or Double LVDS type
Max current of USB: 500mA.
Input Supply: 220V AC
Rated Power: 75W
Standby power <0.5W (for board only)
Backlight Power: 45W
Backlight Voltage: 43V-63VDC(M type), 63V-94VDC (H type)
Speaker Output: 2*8W (8ohm)
Service Code: Menu+1147
Note: The following firmware is a backup dump file and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download your required resolution file and then extract it you will get the folder. For More Details about the download process, watch the video Click Here
T.R85.801 firmware free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.R85.801_1366x768_General-Pre_USB | Download |
| 2 | T.R85.801_1366x768_Samsung IR_USB | Download |
| 3 | T.R85.801_1366x768_Sony IR_USB | Download |
| 4 | T.R85.801_1920x1080_Samsung | Download |
| 5 | T.R85.801_1920x1080_Sony | Download |
