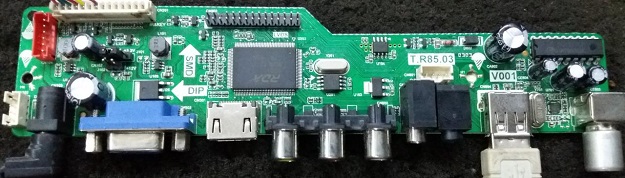

T.R85.03 Universal LCD/LED Controller Board
T.R85.03 is a universal jumper board that fits almost all panel screens with a high resolution of 1920×1080.
Basic Info:
Model No. T.R85.03 and T.R85.03 v001
Main Chipset: RD8501
Display Format: up to 1920×1200
Aspect Ratio: 4:3, 16:9 & 16:10
Board Size: 168.00 X 42.0 (mm)
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty/format the USB disk
Step 2: Copy the required resolution program (*. Bin file) to the USB disk.
Step 3: Connect the USB disk with the Mainboard in the USB Port
Step 4: Connect the Keypad and IR
Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
Factory Service Mode:
Menu+1147
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download your required resolution firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
T.R85.03 Firmware All resolutions Free Download Here :
