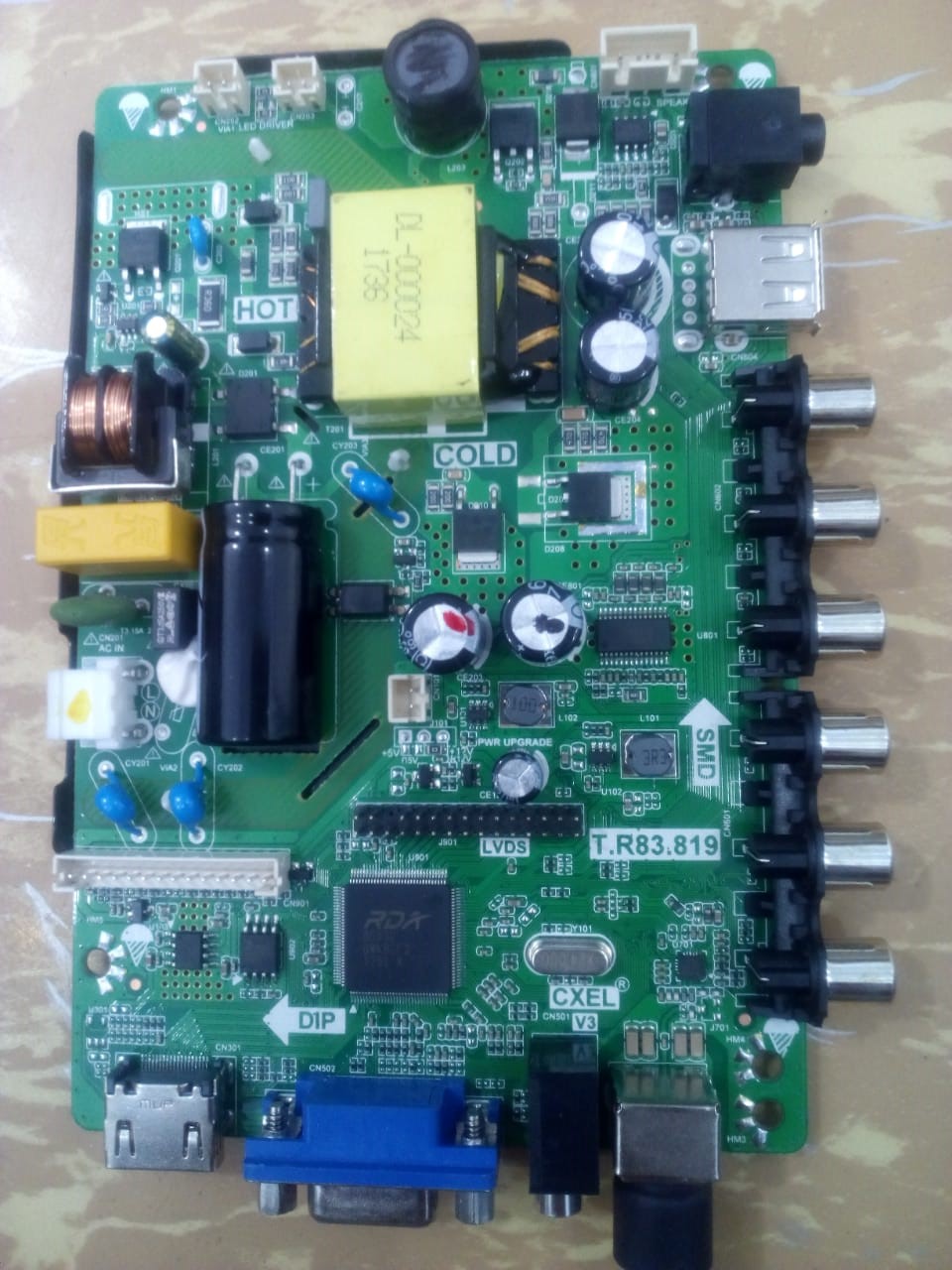

T.R83.819 LCD/LED TV Board

T.R83.819 FHD three-in-one LCD/LED TV Driver Card for LED Display Screen 32″. T_R83_819 can support up to 1920×1080 screen panel resolution. The USB interface can be used for software Upgrades and Multimedia Playback functions. T-R83-819 is specially designed for the Middle East and Asian Countries.

Download Here

Basic Info:

Model No. T.R83.819 (Combo Board)

Main Chipset: RDA8503C

LED Backlight: 65W to 75W

Display Format: 1080 Full HD

Panel Supported: 32″ to 42″

Aspect Ratio: 16:9

Wide Screen: Yes

Backlight: LED

Display: TFT-LCD

PCB Size: 129.5mm(L)*146mm(W)

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Language OSD: English,Hindi,Simplified ,Chinese,Khmer,Myanmar,French,German,Italian,Spanish

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohms)

Max. Resolution: 1920×1080

Panel Voltage: 12V, 5V

Backlight: 2PIN-2.0+3PIN-2.0 or 2PIN-2.0+2PIN-2.0

65W 12V/19V 30V-44V/32W
65W 12V/24V 45V-63V/35W
65W 12V/32V 64V-94V/35W
75W 12V/24V 45V-63V/40W
75W 12V/32V 64V-94V/45W
75W 12V/50V 95V-140V/45W

USB Port: USB interface for Firmware Upgrade and Multimedia Playback Support

Note: External DC 12V Power Jack is also available on this board

Electrical Parameters:

Working Input Voltage: 100-240V AC

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Factory Service Mode:

Menu+1147

Flash IC: 4MB

Firmware Type: Backup Dump

Note: The following T.R83.819 firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download T.R83.819 Firmware File:

Download your required file of the following T.R83.819 firmware and then extract it you will get the folder. Now you can write the file with a programming tool. For more details about the download, process watch the video Click Here
