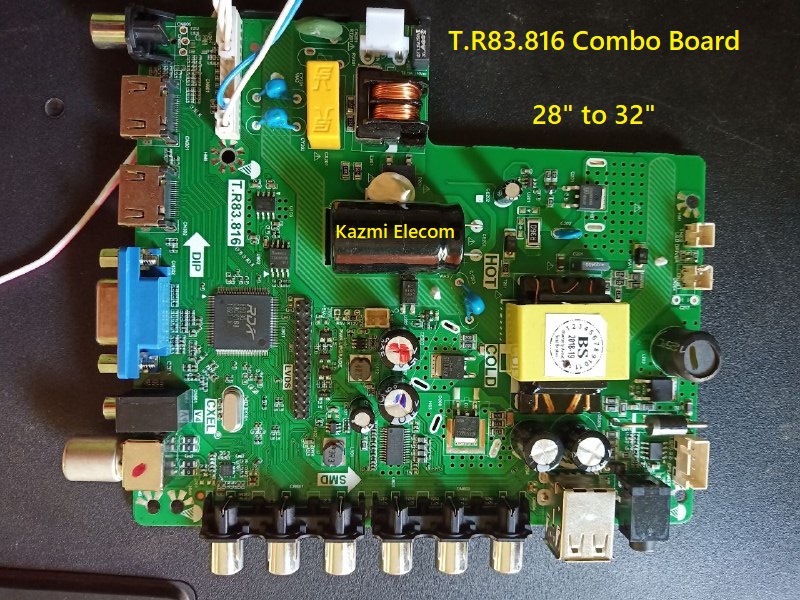

T.R83.816 LCD/LED TV Board
T.R83.816 FHD three-in-one LCD/LED TV Driver Card for LED Display Screen 26″ to 32″. T_R83_816 can support up to 1920×1080 screen panel resolution. The USB interface can be used for software Upgrades and Multimedia Playback functions. T-R83-816 is specially designed for Middle East and Asian Countries.
Basic Info:
Model No. ZYCF-T.R83.816 (Combo Board)
Main Chipset: RDA8503
LED Backlight: 25W
Display Format: 1080 Full HD
Panel Supported: 26″ to 32″
Aspect Ratio: 16:9
Wide Screen: Yes
Backlight: LED
Display: TFT-LCD
PCB Size: 129.5mm(L)*146mm(W)
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Language OSD: English,Hindi,Simplified ,Chinese,Khmer,Myanmar,French,German,Italian,Spanish
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohm)
Max. Resolution: 1920×1080
Panel Voltage: 12V, 5V
Backlight: 48W 12V/19V 30V-44V/25W 2PIN-2.0+3PIN-2.0 or 2PIN-2.0+2PIN-2.0
48W 12V/24V 45V-63V/25W
48W 12V/32V 64V-94V/25W
48W 12V/19V 34V-54V/25W
USB Port: USB interface for Firmware Upgrade and Multimedia Playback Support
Note: External DC 12V Power Jack is also available in this board
Electrical Parameters:
Working Input Voltage: 100-240V AC
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
Factory Service Mode:
Menu+1147
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
T.R83.816 Firmware for Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | T.R83.816_1366x768_Backup_Dump | Download |
| 2 | T.R83.816_1366x768_USB_Firmware | Download |
| 3 | T.R83.816_1366x768_Melbon_Dump | Download |
| 4 | T.R83.816_1366x768_Samsung_Dump | Download |
| 5 | T.R83.816_1366x768_Sony_Dump | Download |
| 6 | T.R83.816_1366x768_Toshiba_Dump | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
