T.R83.801 Firmware Free Download

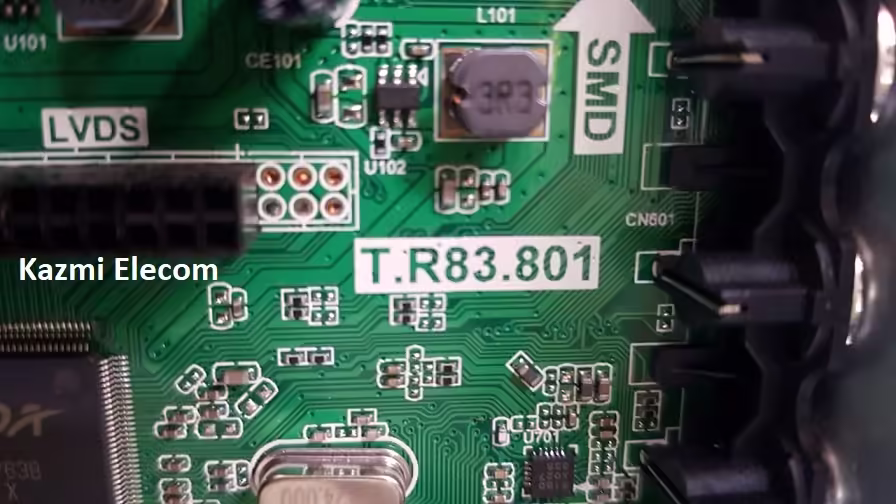

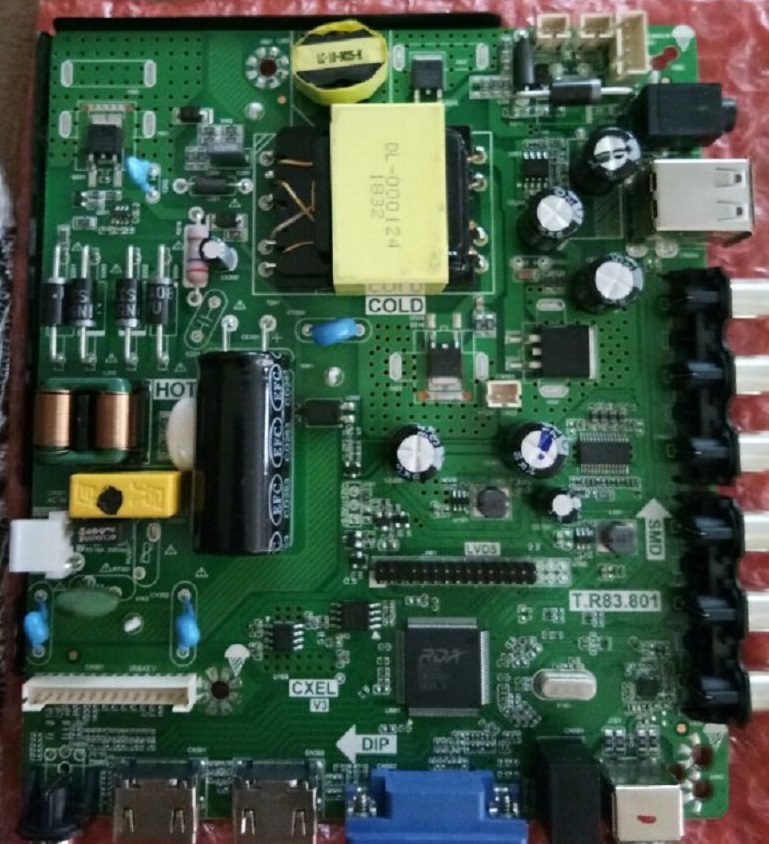

T.R83.801 LCD/LED TV Board

T.R83.801 FHD three-in-one LCD/LED TV Driver Card for LED Display Screen 32″ to 42″. T_R83_801 can support up to 1920×1080 screen panel resolution. The USB interface can be used for software Upgrades and Multimedia Playback functions. T-R83-801 is specially designed for the Middle East and Asian Countries.

Basic Info:

Model No. ZYCF-T.R83.801 (Combo Board)

Main Chipset: RDA8563B

LED Backlight: 65W to 75W

Display Format: 1080 Full HD

Panel Supported: 32″ to 42″

Aspect Ratio: 16:9

Wide Screen: Yes

Backlight: LED

Display: TFT-LCD

PCB Size: 129.5mm(L)*146mm(W)

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Language OSD: English,Hindi,Simplified ,Chinese,Khmer,Myanmar,French,German,Italian,Spanish

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohms)

Max. Resolution: 1920×1080

Panel Voltage:  12V, 5V

Backlight: 2PIN-2.0+3PIN-2.0 or 2PIN-2.0+2PIN-2.0

65W 12V/19V 30V-44V/32W
65W 12V/24V 45V-63V/35W
65W 12V/32V 64V-94V/35W
75W 12V/24V 45V-63V/40W
75W 12V/32V 64V-94V/45W
75W 12V/50V 95V-140V/45W

USB Port: USB interface for Firmware Upgrade and Multimedia Playback Support

Note: External DC 12V Power Jack is also available on this board

Electrical Parameters:

Working Input Voltage: 100-240V AC

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Factory Service Mode:

Menu+1147

Flash IC: 4MB

Firmware Type: Backup Dump

Caution:

All the pictures and specification details related to T.R83.801 in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.

How to Load USB Firmware:

• Copy the Required Firmware/software into FAT32 USB Disk
• Plugin the U disk into the Mainboard USB port of the LCD/LED TV
• Switch ON the power and Wait until even the IR indicator led stops flashing
• Done. Unplug the U-disk (It will take a max half min to upgrade firmware)

Pros:

There are many advantages to installing the given T.R83.801 USB software or backup dump file. A few benefits are described below:

• The dead board can be recovered and operational by loading the given software backup file
• Remote and Logo may change at your own choice to satisfy the customer
• Money saving instead of changing the mainboard
• Time-saving instead of arranging a new board
• Customer satisfaction to do an urgent job
• Skill and confidence improvement

Cons:

There may be some disadvantages to installing the given T.R83.801 USB software or backup dump file. But it depends on the technician or user as per his understandings. A few drawbacks are described below:

• The working board may go to the standby position
• Remote Control may not work and the Logo may change by writing the given software
• Panel screen parameters may be changed

T.R83.801 Version Upgrade:

Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software malfunctions due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.

T.R83.801 Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.

Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first. Always keep a backup before writing the flash.

How to Download T.R83.801 Firmware File:

Download your required file of the following T.R83.801 firmware and then extract it you will get the folder. Now you can write the file with a programming tool. For more details about the download, process watch the video Click Here

T.R83.801 Firmware  for Free Download Here :

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	T.R83.801_1366x768_M90 IR	Download
2	T.R83.801_1366x768_Samsung	Download
3	T.R83.801_1920x1080_M90 IR	Download
