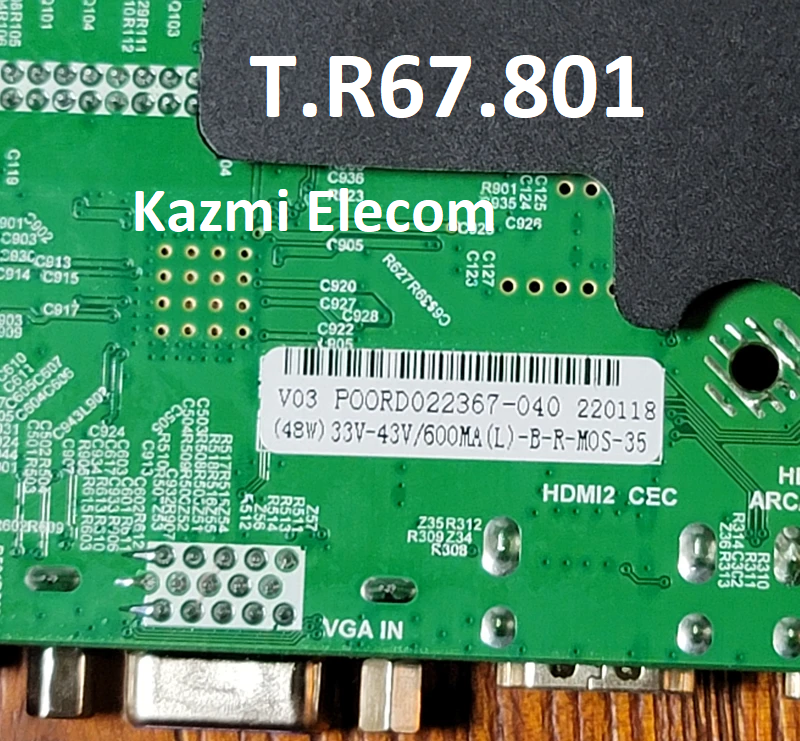

T.R67.801 LED TV Board
T.R67.801 is a simple ATV Driver Motherboard designed for LCD/LED TVs. It is designed to support Full HD LCD/LED Panel Screens. This board is suitable for the Asia Pacific and the Middle East markets. This is a three-in-one Combo Board. The main power module, LED Backlight Inverter Circuit module, and ATV Card are built into this motherboard. This board has all the features and connectivity ports as per the latest user requirements like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack.
Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. T.R67.801 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: T.R67.801
Main Chip: UNISOC UTS6710
Product: LCD/LED TV
LED Backlight: 33-43V 600 mA
Backlight Capacity: 45-75 W
Flash IC: 4Mb
Sound Chip:
Tuner IC:
Screen supported: 32-39 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 220V AC
Firmware Name: YDG.6710.bin
Firmware Type: USB Bootable
Service Code:
Source/Input
Note: The following firmware is USB bootable and Backup Dump. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
T.R67.801 firmware for free download:
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
